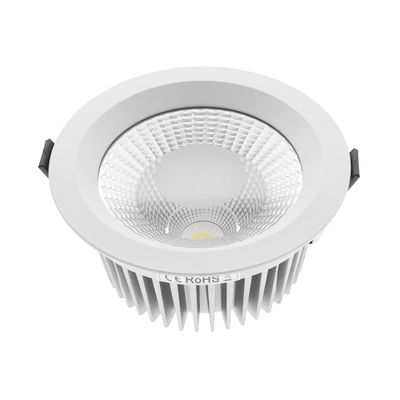

LED downlight —EYE, CCT adjustable, dimmable, 24W, CRI95

LED downlight - EYE deep emitter, colour temperature adjustable, dimmable, 24W, CRI95

A powerful downlight ideal for high ceilings.

LED EYE is a dimmable deep emitter to replace old PL luminaires. The luminaire's elegant reflector (40 degrees) is eye-friendly and when you take a step back, the light is invisible from 1m away. The luminaire produces a generous amount of light and has a range of 7-8m, making it a great choice for high spaces. The luminaire is colour temperature adjustable and we use a very high quality LED circuit. The LED EYE has a light output equivalent to at least 100W halogen, +2000 lumens.

The luminaire is IP44 and the transformer is IP21.

LED EYE is a flush mounted luminaire in cast aluminium (0,85kg), with the LED circuitry mounted directly on the frame. The solution achieves maximum thermal conductivity and safe operating temperature (below 50 degrees Celsius). The low operating temperature and the high quality LED circuit guarantees a long lifetime of 50,000h and we grant a 5 year warranty on the lamps we manufacture!

Installation

The space required for the luminaire is 90mm in height. The diameter of the mounting hole is 150mm.Strong springs keep the luminaire always in 3cm thick material.

The luminaire comes with a choice of transformer to fit through the mounting hole into the mounting space. By moving the transformer away from the luminaire, we prevent the power supply from heating the luminaire, and we can keep the size of the luminaire small. There is a quick connector between the luminaire and the transformer for easy installation. Changing the colour temperature of the light is done via the switch on the power supply, unless you have chosen a transformer suitable for infinitely variable control. The light must be switched off before changing the colour, otherwise the luminaire will be damaged.

Dimming and infinitely variable temperature control

The luminaire can be dimmed with a wireless dimmer or TRIAC dimmers, from the ENSIO side, and they also work with home automation such as KNX. Suitable dimmers can also be ordered from us, "Led dimmers"

The lamp has an adjustable light temperature of 2700-4000-5800K with a switch, so you can choose the right colour for your interior. Even change according to the seasons! If you want to adjust the light wirelessly without a ladder, you need a 36V group transformer, a VaLO controller and a wireless button.

Applications

LED EYE is suitable for general lighting in high spaces in both homes and public areas.

Installation examples:

• normal room height 2600-3500mm, 4pcs are enough to illuminate the room
• high living room, one luminaire per 3-4 square metres
• high outdoor spaces, garages and canopies
• suitable for replacing old 2x18W PL lamps in schools or offices, for example
