LED dimmer with built-in 24V transformer - brightness and colour temperature control with one device!
LED dimmer with built-in 24V CCT transformer is a 24V LED dimmer with built-in CCT dimmer, which can be mounted in a junction box. Max. 100W load. The solution is specifically designed for 3-wire CCT LED lights (warm white + cool white) and allows both brightness and colour temperature control directly from the wall - without the need for separate transformers or controllers.
The device connects directly to 230V mains power like a standard triac dimmer, but outputs 24V DC for CCT LED lighting.
The compact size of 55 x 55 mm without its own supplied outer frame allows installation in a standard junction box, and it is suitable for example for Schneider Exxact frames. It can also be recessed into our corner socket.
Dimming and colour temperature control from the same controller
The controller works like a traditional wall dimmer:
- Rotate to adjust the brightness of the light
- Double-click to change the colour temperature control mode (warm ↔ cold)
The solution is logical and easy to use - no need to learn separate applications or control systems. The wired implementation ensures reliable operation without wireless connections.
The perfect solution for kitchen and furniture lighting control
The Led dimmer 24V CCT 100W is ideal for applications where you want to control both the ambience and the efficiency of task lighting:
- Kitchen cabinet underlights
- Surface mounted corner sockets to replace old sockets
- Mirror lighting in the bathroom
- Task lighting for a utility room
- Wardrobes and storage areas
- Indirect ceiling lighting
- Shop and furniture lighting
A particularly practical solution in situations where you want to avoid a separate 24V transformer and make the installation as compact as possible.
Things to consider
Only 100W load capacity, so take this into account when designing! For example:
- 14,4W CCT led strip (power input 8W/m) this will therefore last for 12 meters.
- 30W CCT led strip for kitchen flat light (task light, power input approx. 17W/m) 5 meters.
- 9W CCT spotlights 10 pcs
Difficult to retrofit unless wiring is piped to an old switch in the wall. Usually only 2 or 3 wires for the switch in the wall.
Installation

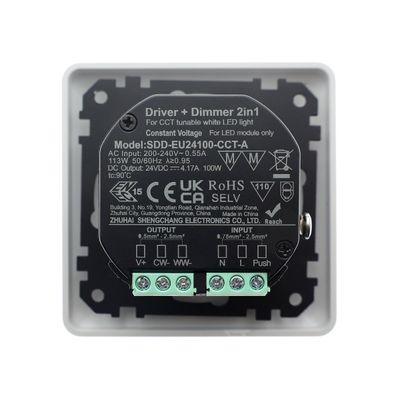

The unit is installed in a standard junction box and connected directly to a 230V supply. The output is 24V DC with three wires: +, WW (warm white) and CW (cool white).
The recommended wiring is 5-pole:
- 2 wires in (230V)
- 3 wires back to the light (24V +, WW, CW)
As the transformer is integrated into the dimmer itself, no separate power supply is required. This speeds up installation and reduces the number of connection points. Installation should be carried out by a professional electrician.
Technical specifications
- Input voltage: 230V AC
- Output voltage: 24V DC
- Maximum load: 100W
- Output: +, WW, CW (3-wire CCT)
- Suitable for 24V CCT LED products
- Dimensions: 55 x 55 mm
- Mounting in a standard junction box
- Compatible with Schneider Exxact frames and others
- Colour: Matte white
- Suitable for use with Maxxit LED lighting fixtures
Why choose Led dimmer 24V CCT 100W?
This solution combines a 24V LED transformer and a CCT dimmer in one product. First we have a roll dimmer that fits in a booth box and does it all! It makes lighting simple, reliable and user-friendly - without any extra components.
LedStore's customer service will help with any technical questions!
FAQ - Frequently Asked Questions
More frequently asked questions about the product
Can I use this with a standard 24V LED strip?
This model is for 3-wire CCT LED products (warm + cool white). It is not suitable for monochrome LED strips without CCT function.
Do I need a separate 24V transformer?
No, you don't. The transformer is integrated in the dimmer. The device is connected directly to 230V mains voltage.
Can this be installed in place of a normal dimmer?
Yes, physically the device fits into a normal wall socket. However, please note that CCT control requires 5-conductor cabling (2 in, 3 back to light).
Does this work wirelessly or with intelligent control?
No. This is a wired, fail-safe solution with no wireless connections, applications or batteries.
Where is this best suited?
Particularly for kitchen cabinet base lights, furniture lighting and other applications where you want to adjust the mood and working light shade directly from the wall and cabling is possible.
How large a load can be connected to the unit?
The maximum load is 100W 24V CCT LED lighting.
