LED chip 35–39 V, 120–300 mA, 5–12 W, CCT adjustable 2700–6000 K, CRI97

In stock at 100 pcs
SKU#: LED-chip-mA-CCT-12W

Compact constant current LED chip, also with adjustable colour temperature (CCT) 2700-6000 K. Very high quality colour rendering index, CRI97. 400-1200 lumens depending on the current used (120-300 mA).

  • 35-39V, 120-300mA, 5-12W

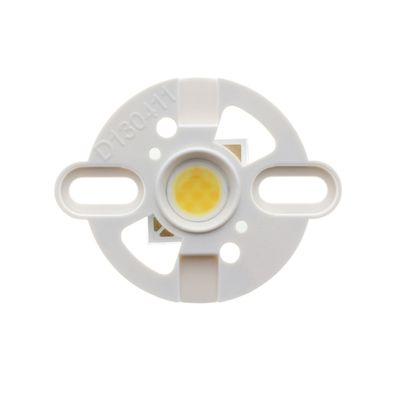

  • Chip 13.5 x 13.5 x 1mm, with bracket 37 x 29 x 3.5mm
  • Colour temperature adjustable 2700-6000K
  • Full spectrum of light, CRI97!
  • Single LED chip with bracket
€ 19.90
Delivery methods
Free shipping for orders over to %s
Payment Methods
Pay safely with Credit/Debit Cards, Paypal and others.
Easy returns
Right of return for 14 days

  • LED chip, 35-39V, 120-300mA, 5-12W, CCT adjustable 2700-6000K, CRI97

    Compact LED chip operating at constant current, also with adjustable colour temperature (CCT) 2700-6000 K. Very high quality colour rendering index, CRI97. 400-1200 lumens depending on the current used (120-300 mA) and the colour temperature of the light, less in warm, more in cold.

    This LED circuit is CCT adjustable, meaning that the colour temperature can be adjusted by mixing the warm and cold white light channels. The bracket is included in the price.

    Control

    This LED chip should be connected to a 120-300 mA standard power supply. We have suitable standard power supplies with CCT control for RF, Zigbee and DALI systems.

    Cooling recommendation 120-250g depending on the power of the chip, i.e. the size of the heat sink should be at least 50x20mm - 60×25 mm (aluminium).

    Led circuit power and cooling

    The power of a Led circuit is determined by the constant current applied to it in the voltage range 35-39V (0-100%). Please find below a table with current, power and cooling requirements:

    Current (mA)Power (W)Cooling (g)
    120 mA5 W120 g
    150 mA7 W150 g
    200 mA9 W200 g
    300 mA12 W250 g

    Dimensions:

    Chip: 13.5mm x 13.5mm

    LED diode diameter: 7.5 mm

    Mounting bracket: 37mm x 29mm

    Connections

    Pin / angle function
    +Positive anode
    C-Negative cathode, cold light channel
    W- Negative cathode, warm light channel

    Wiring instructions

    1. Connect W- to the warm negative pole (WW-) of the LED driver

    2. Connect C- to the cold negative pole (CW-) of the LED controller

    3. Connect + to the positive pole (+) of the LED controller, if the controller has two pluses they are connected to one plus

    Note.

    Ensure good thermal conductivity; use either a heat sink or an equivalent heat sink as a heat sink. Use a heat/silicon paste.

LED chip, 35-39V, 120-300mA, 5-12W, CCT adjustable 2700-6000K, CRI97

Compact LED chip operating at constant current, also with adjustable colour temperature (CCT) 2700-6000 K. Very high quality colour rendering index, CRI97. 400-1200 lumens depending on the current used (120-300 mA) and the colour temperature of the light, less in warm, more in cold.

This LED circuit is CCT adjustable, meaning that the colour temperature can be adjusted by mixing the warm and cold white light channels. The bracket is included in the price.

Control

This LED chip should be connected to a 120-300 mA standard power supply. We have suitable standard power supplies with CCT control for RF, Zigbee and DALI systems.

Cooling recommendation 120-250g depending on the power of the chip, i.e. the size of the heat sink should be at least 50x20mm - 60×25 mm (aluminium).

Led circuit power and cooling

The power of a Led circuit is determined by the constant current applied to it in the voltage range 35-39V (0-100%). Please find below a table with current, power and cooling requirements:

Current (mA)Power (W)Cooling (g)
120 mA5 W120 g
150 mA7 W150 g
200 mA9 W200 g
300 mA12 W250 g

Dimensions:

Chip: 13.5mm x 13.5mm

LED diode diameter: 7.5 mm

Mounting bracket: 37mm x 29mm

Connections

Pin / angle function
+Positive anode
C-Negative cathode, cold light channel
W- Negative cathode, warm light channel

Wiring instructions

1. Connect W- to the warm negative pole (WW-) of the LED driver

2. Connect C- to the cold negative pole (CW-) of the LED controller

3. Connect + to the positive pole (+) of the LED controller, if the controller has two pluses they are connected to one plus

Note.

Ensure good thermal conductivity; use either a heat sink or an equivalent heat sink as a heat sink. Use a heat/silicon paste.

  • Delivery status In Stock
  • Brand Ledstore
  • Breadcrumbs Home By featuresKelvin1800K - 2900K LED chip 35–39 V, 120–300 mA, 5–12 W, CCT adjustable 2700–6000 K, CRI97
  • Category 1800K - 2900K
  • SKU LED-chip-mA-CCT-12W
  • Lumen 1200
  • Size Chip size 13.5 x 13.5 x 1mm, LED diode diameter 7.5mm, with bracket size 37 x 29 x 3.5mm
  • Wattage 12
  • Colour temperature (K) CCT Adjustable, 2700, 6000
  • Colour rendering (CRI ±3) 97
