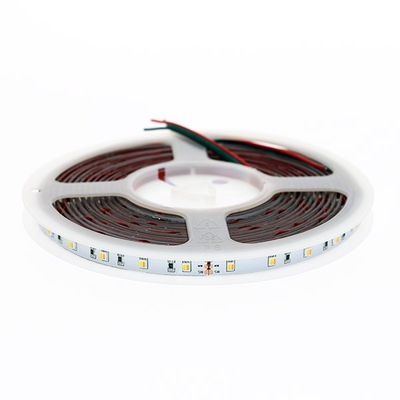

LED CCT STRIP 14,4W/m, 24V complete KIT (with wireless dimmer)
In stock at
SKU#: STRIP-CCT-14.4W-SET
- 5 meter accessory set, 2500K-6500K, 24V
- effective for illumination and mood creation
- includes profiles 2x2,5 m
- includes transformer and control unit
- incl. 10cm supply wires (3-pole cable)
Read more
from € 436.84
VAT 0% | 24%
Add a comment to the order
Delivery methods
Free shipping for orders over to %s
Payment Methods
Pay safely with Credit/Debit Cards, Paypal and others.
Easy returns
Right of return for 14 days
A complete set including a temperature adjustable LED strip between 2500-6500K (light colour temperature), a wireless dimmer/colour temperature control button and a 24V transformer with built-in receiver and two freely selectable 2,5m surface mountable aluminium profiles.
Can't decide whether you want warm or cool white? To solve the problem we have a CCT adjustable LED strip, TUNNELMA, where the colour temperature of the light can be adjusted between 2500K and 6500K. The ribbon has a colour rendering index, CRI, of over 90, which means that the colours of the illuminated object are well reproduced. (For best colour rendering, set the TUNNELMA led strip to 4000K, as there is no yellowish or bluish tint involved). This led strip is dimmable and the VaLO series CCT button and receiver are used to adjust the colour temperature
Product information
Our CCT adjustable TUNNELMA led strip is 14.4W/m (1000 lumens per meter) and has 60 led circuits per meter. This makes the light uniform enough for indirect lighting, for example. When mounted on an aluminium profile, the spotlight is only noticeable when looking directly at the luminaire from the front. When indirectly illuminated through a wall, the light is uniform. The CRI of the strip is over 90, which is excellent and suitable for use in home lighting.
The transformer is fitted with a plug.
Also included is a VaLO series resistor and a wireless button (for RGB/CCT ribbons).
A surface-mounted, free-standing aluminium profile is also included (2 pcs). The profiles are 2.5m long and come with end pieces, brackets and diffuser.
Installation
TUNNELMA led strip light comes in 5m rolls and can be cut to size every 10cm. The strip is clearly marked for easy cutting. We recommend joining the strips by soldering, as we have found that the quick-release fasteners loosen over time and loosening causes the lights to flash. Our Led strip is easy to attach with the 3M high grip tape that comes with it. The tape should always be mounted on metal to allow the led circuits to release their heat away from the circuit. This way the led strip will withstand use and will not break.
We recommend that one transformer does not feed 24V ribbon for more than 10m (regardless of power) to avoid light degradation at the other end of the ribbon. So if you need more than 10m of ribbon, we recommend feeding the ribbon so that the supply comes from the middle, for example. The led strip should always be attached to an aluminium strip, so that excess heat is conducted away from the led circuit. This will prolong the life of the led strip. Aluminium profiles can be ordered from our online shop, where three different types are available.
It comes with a VaLO series counterpart and a wireless button for CCT luminaires. The receiver is mounted between the LED strip and the transformer. The button can be fixed in the desired location. Once installed, the button and receiver are paired by pressing the "learning" button on the receiver and then pressing the button on the button. The lights will flash to indicate successful pairing.
Use of the button:
- From the top left corner (on/off symbol) the light goes off and on
- From the bottom left (sun), the lamp dims. The dimming is activated by pressing and holding the button. Pressing the button a second time (for a long time) directs the lighting level in a different direction than the previous press.
- From the top right corner (WW) you can adjust the colour temperature of the lamp to a warmer temperature.
- From the bottom right (CW) you can adjust the colour temperature of the lamp to a cooler temperature.
The LED strip works well with solar power, boats and cars if they use 24VDC. Then a separate power supply is not needed (although it is included in the kit). The power supply does not need to be dimmable, as the dimming is done between the strip and the control unit, after the transformer.
We will be happy to help with any questions regarding installation and ordering.
Create your own lamp
Why use the TUNNELMA led strip only for traditional applications such as task lighting and indirect lighting when you can make a luminaire out of almost anything? An old cartwheel, a zinc bucket or even a wooden boat can be turned into a lamp with the help of an LED strip. And let's get designing!
- Delivery status In stock at
- Brand Ledstore
- Breadcrumbs Home Led AreasLED interior lightsLED kitchen lightingLighting for kitchen under kitchen cabinet LED CCT STRIP 14,4W/m, 24V complete KIT (with wireless dimmer)
- Category Lighting for kitchen under kitchen cabinet
- SKU STRIP-CCT-14.4W-SET
- Wattage 72
- Lumen 5000
- Designed in Finland No
- Installation
For the CCT ability to work, you need a wireless button and a receiver.
LED strip comes in a 5m roll that can be cut to measure in every 10cm. We recommend that you solder the wanted lengths together as we have noticed that the fast clips tend to loosen after few years and then the light starts flickering.
If you have more than 10m of strip, you need to feed the power from both ends or from the centre to minimize the powerloss. All installations should be made on top of aluminium (ie. aluminium profile), that way the excess heat gets conducted away from led circuit and makes it last longer.
LED strip works in boats, as it is 24VDC you might not even need a driver!
Remember to order a driver (unless it is for a boat, car or with solar power of 24VDC).
- Voltage (V) 24
- Colour temperature (K) Adjustable CCT
- Light control 176
- Life span 35.0000h
- Model CCT-strip-24V-14.4W-set
- Size Strip: 8x3x5000mm Profile: 17x6x2500mm
- Change Dimming with RF signal
- Approval CE, RoHs, IP21, SELV
New product review
Be the first to write a review!
By rating you will be entered into a prize draw for a €50 gift voucher.
Customer questions
- What is CCT?
- What is the difference between stepwise or freely adjustable CCT lighting?
- How do CCT adjustable luminaires work?
- How to connect continuously variable CCT lighting?
- Can I use the VaLO-INWALL-CCT-400W hardwired controller at the same time as an RF wireless controller?
- Can I control CCT lights from multiple locations?
- I want to time the startup for bright daylight in the morning and warm and slightly dimmed light in the evening. Is it possible to control the light according to the season or time of day?
- What are the brands of CCT LED lamps sold on LedStore?
- Is the Led strip easy to cut?
- Why do I need an aluminium mounting profile for LED strip?
- Is it true that if I install an LED strip without a profile, its lifetime is easily only 1-2 years?
- How do I make corners on an aluminium profile?
- How to make long installations, up to 5 metres?
- How are the led strips attached?
- Does the led strip have the connecting wires ready?
- What if I split the tape into several parts and some of the parts have no connectors? How do I connect the tapes to the transformer?
- I am installing a led strip under the sink/shower/carport. Do I need an IP65 profile?
- Can I install a profiled led strip under a drying cabinet?
- What is the difference between 12V and 24V led strip?
- What happens if I connect a 12V led strip to a 24V transformer or vice versa?
- I only have old plug-in fluorescent tubes in my kitchen. How can I replace them with LED strip?
- Can I install the led strips myself? Is it electrical work?
- Does this strip accept a PWM dimmer?
WHAT IS CRI, THE COLOUR RENDERING INDEX
High quality LED lights also have a high colour rendering index, or CRI. A good colour rendering index (CRI) for home use is above 90, and nowadays many market lights are unfortunately closer to 80.
CRI tells you how well an LED light displays colours as they should be. For designers and architects, as well as interior designers, it should be one of the most important considerations. Make sure the lighting is perfect so that your artwork is what it is meant to be.
Colour rendering index
The colour rendering index is expressed as a number on a scale from zero to 100, where 0 = no colour rendering and 100 = full colour rendering. The colour rendering index of LED lights is also known as Ra, which is measured on a smaller scale than CRI. This Ra value does not include red tones or skin tones, for example, so it is a 'glossed' figure for the true quality of an LED light.
RA value
The Ra value measures the reproduction of colours using eight different reference colours. CRI takes into account the wider (15) wavelength range, including reds and other warm colours.
The Ra value is calculated by cutting the wavelength range, weighting the blue and violet tones, and calculating the weighted average of R numbers 1-8.
Excluded from the Ra value are, for example, the colour rendering of bright reds, yellows and greens, and shades close to skin tone. These are described by R-values between 9 and 15. The following is a picture of a measurement result that easily confuses the consumer.
This measurement is from a 9W CCT Led spot
Read more on this topic:
Colour rendering of LEDs - What is the difference between CRI and Ra-value?
