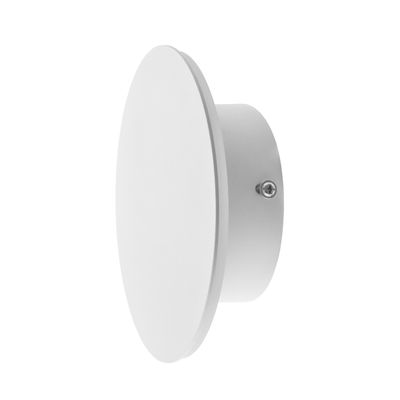

Indoor LED wall light fixture — ECLIPSE 15cm, CCT 3000-6000K 24V, White

In Stock
SKU#: Eclipse-15-W

The ECLIPSE 15 cm luminaire is ideal for creating an atmosphere with indirect light reflected through the wall. The luminaire has a light output of 10W, which corresponds to a luminous intensity of 800 lumens. The luminaire is colour temperature adjustable and dimmable.

ECLIPSE is a wall luminaire for indoor use and is well suited for creating an atmosphere in, for example, living rooms. The luminaire is available in two different sizes and colours, which you can combine to create beautiful works of art on your walls.

  • 5-year guarantee
  • 800 lumens
  • CCT 3000K - 6000K Zigbee / DALI2 / RF
  • Indirect light
  • Matte white
€ 69.85
  • LED WALL LAMP ECLIPSE 15 cm, colour temperature adjustable, dimmable, 10W, CRI85, IP21, matt white

    ECLIPSE allows you to create atmospheric ensembles.

    Features of the luminaire

    The ECLIPSE 15 cm luminaire is ideal for creating an atmosphere with indirect light reflected through the wall. The luminaire has a light output of 10W, which corresponds to a luminous intensity of 800 lumens. The LED light is energy efficient and long-lasting, reducing electricity consumption and carbon footprint.

    The luminaire is also available in matt black and in a larger size (30 cm).

    The luminaire comes with a 5-year warranty.

    Versatile adjustment options

    The luminaire is dimmable and colour temperature adjustable. The light colour 3000K, 4000K or 6000K is selected at the installation stage from the switch if a 24V base transformer is used.

    You can install the luminaire for infinitely variable colour temperature control from 3000K to 6000K (24V) using a Zigbee, DALI2 or RF transformer.

    Water and dust resistance

    The IP rating is a standard that defines the level of protection of the luminaire against various environmental conditions. The standard uses two numbers, the first indicating protection against dust (0, no protection - 6, dustproof) and the second against moisture (0, no protection - 8, resistant to continuous immersion in water).

    This luminaire has an IP21 rating, which means that we recommend the luminaire for dry indoor environments.

    Ready for home automation

    By choosing Zigbee, for example, you can connect the luminaires in groups via a group transformer directly to your home automation system. Philips HUE, IKEA, Azoula, Home assistant (e.g. Conbee2) and other Zibgee 3.0 systems are already supported by Zigbee.

    The luminaires can also be connected to a DALI-2 system with DALI-2 transformers. Please contact us and we will be happy to help you with your product selection.

    Applications

    ECLIPSE is a wall luminaire for indoor use and is well suited for creating an atmosphere in, for example, living rooms. The luminaire is available in two different sizes and colours, which you can combine to create beautiful works of art on your walls.

    You can view reference photos in our photo gallery or if you need expert help with your lighting design, you can order a lighting design from us.

    Why choose this product?

    • 24V
    • Combining designs to create beautiful ensembles
    • Atmospheric indirect light
    • Colour temperature adjustable
    • 5 year warranty

    Installation

    Fix the luminaire to the wall using the supplied fixing accessories, connect the luminaire to the mains and adjust the colour temperature to your preference using the control panel.

    We recommend to use this luminaire with a Continuously Variable Temperature (CCT) control from 3000-6000K by connecting all the luminaires to the same transformer in parallel. This allows you to dim and adjust the mood continuously and wirelessly. The product images show a couple of installation examples. In this case, the wire of the switch box of the luminaire is cut and the 3 wires are stripped out: + (red) and -warm (white), -cold (black).

    Example:

    2 pieces ECLIPSE 15cm

    2 pieces ECLIPSE 30cm

    100W 24V Zigbee transformer

    Wireless Zigbee CCT button


    If you have any questions, please visit our shop or contact us by phone or email. We are happy to help!

LED WALL LAMP ECLIPSE 15 cm, colour temperature adjustable, dimmable, 10W, CRI85, IP21, matt white

ECLIPSE allows you to create atmospheric ensembles.

Features of the luminaire

The ECLIPSE 15 cm luminaire is ideal for creating an atmosphere with indirect light reflected through the wall. The luminaire has a light output of 10W, which corresponds to a luminous intensity of 800 lumens. The LED light is energy efficient and long-lasting, reducing electricity consumption and carbon footprint.

The luminaire is also available in matt black and in a larger size (30 cm).

The luminaire comes with a 5-year warranty.

Versatile adjustment options

The luminaire is dimmable and colour temperature adjustable. The light colour 3000K, 4000K or 6000K is selected at the installation stage from the switch if a 24V base transformer is used.

You can install the luminaire for infinitely variable colour temperature control from 3000K to 6000K (24V) using a Zigbee, DALI2 or RF transformer.

Water and dust resistance

The IP rating is a standard that defines the level of protection of the luminaire against various environmental conditions. The standard uses two numbers, the first indicating protection against dust (0, no protection - 6, dustproof) and the second against moisture (0, no protection - 8, resistant to continuous immersion in water).

This luminaire has an IP21 rating, which means that we recommend the luminaire for dry indoor environments.

Ready for home automation

By choosing Zigbee, for example, you can connect the luminaires in groups via a group transformer directly to your home automation system. Philips HUE, IKEA, Azoula, Home assistant (e.g. Conbee2) and other Zibgee 3.0 systems are already supported by Zigbee.

The luminaires can also be connected to a DALI-2 system with DALI-2 transformers. Please contact us and we will be happy to help you with your product selection.

Applications

ECLIPSE is a wall luminaire for indoor use and is well suited for creating an atmosphere in, for example, living rooms. The luminaire is available in two different sizes and colours, which you can combine to create beautiful works of art on your walls.

You can view reference photos in our photo gallery or if you need expert help with your lighting design, you can order a lighting design from us.

Why choose this product?

  • 24V
  • Combining designs to create beautiful ensembles
  • Atmospheric indirect light
  • Colour temperature adjustable
  • 5 year warranty

Installation

Fix the luminaire to the wall using the supplied fixing accessories, connect the luminaire to the mains and adjust the colour temperature to your preference using the control panel.

We recommend to use this luminaire with a Continuously Variable Temperature (CCT) control from 3000-6000K by connecting all the luminaires to the same transformer in parallel. This allows you to dim and adjust the mood continuously and wirelessly. The product images show a couple of installation examples. In this case, the wire of the switch box of the luminaire is cut and the 3 wires are stripped out: + (red) and -warm (white), -cold (black).

Example:

2 pieces ECLIPSE 15cm

2 pieces ECLIPSE 30cm

100W 24V Zigbee transformer

Wireless Zigbee CCT button


If you have any questions, please visit our shop or contact us by phone or email. We are happy to help!

  • Delivery status In stock at
  • Brand Ledstore
  • Breadcrumbs Home Led LightsLED wall lightsBlack wall lights Indoor LED wall light fixture — ECLIPSE 15cm, CCT 3000-6000K 24V, White
  • Category Black wall lights
  • SKU Eclipse-15-W
  • Lumen 800
  • Change Power supply not included. To be selected on a case-by-case basis depending on the application.
  • Size 40x150mm
  • Wattage 10
  • Colour temperature (K) CCT Adjustable, 3000, 4000, 6000
  • Light control 176
  • Colour rendering (CRI ±3) 85
  • IP class IP21
  • Colour White
  • Angle of light opening 110
  • Immennys 215
  • Adjustability Not adjustable
  • Voltage to driver (V) 206
  • Guarantee (year) 5 years
  • Life span 50000
  • Installation method Surface mounting
  • Format Round
  • Installation level Wall
  • Region Interior
  • Approval CE, RoHS
  • Designed in Finland No
New product review

Be the first to write a review!

By rating you will be entered into a prize draw for a €50 gift voucher.

Customer questions
No questions yet.

WHAT IS CRI, THE COLOUR RENDERING INDEX

High quality LED lights also have a high colour rendering index, or CRI. A good colour rendering index (CRI) for home use is above 90, and nowadays many market lights are unfortunately closer to 80.

CRI tells you how well an LED light displays colours as they should be. For designers and architects, as well as interior designers, it should be one of the most important considerations. Make sure the lighting is perfect so that your artwork is what it is meant to be.


Colour rendering index

The colour rendering index is expressed as a number on a scale from zero to 100, where 0 = no colour rendering and 100 = full colour rendering. The colour rendering index of LED lights is also known as Ra, which is measured on a smaller scale than CRI. This Ra value does not include red tones or skin tones, for example, so it is a 'glossed' figure for the true quality of an LED light.

RA value

The Ra value measures the reproduction of colours using eight different reference colours. CRI takes into account the wider (15) wavelength range, including reds and other warm colours.



The Ra value is calculated by cutting the wavelength range, weighting the blue and violet tones, and calculating the weighted average of R numbers 1-8.

Excluded from the Ra value are, for example, the colour rendering of bright reds, yellows and greens, and shades close to skin tone. These are described by R-values between 9 and 15. The following is a picture of a measurement result that easily confuses the consumer.


This measurement is from a 9W CCT Led spot
