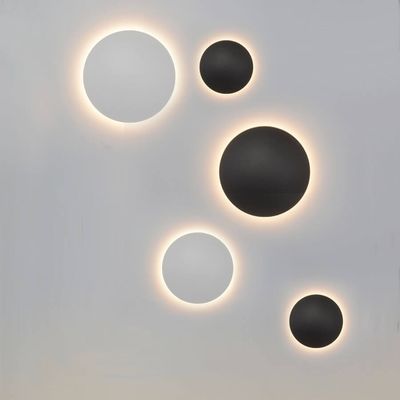

Indoor LED wall light fixture — ECLIPSE 15cm, CCT 3000-6000K 24V, Black
ECLIPSE 15cm (black) is an indoor wall lamp for creating your own art. ECLIPSE 15 is a very simple and elegant luminaire. The luminaire provides light indirectly through the wall, making it particularly suitable for atmospheric spaces such as bedrooms, living rooms and staircases.
The light output is 10W which corresponds to a luminous intensity of approximately 800 lumens. The light shade is standard adjustable in 3 positions 3000/4000/6000K, by supplying the luminaire with 24V. The luminaire does not come with a transformer!
LED wall lamp Eclipse 15cm
Modern and versatile wall lamp with adjustable colour temperature.
The Eclipse LED wall light is designed to offer both functionality and stylish design. The adjustable colour temperature (3000-6000K) allows you to adapt the light to the mood of the room.
Efficiency and elegance
The light output is 10W which is equivalent to approximately 800 lumens. The Eclipse wall luminaire combines modern technology and design, offering its user unique lighting solutions.
Adjustable colour temperature
The luminaire's adjustable colour temperature makes it an excellent choice for different uses and moods. The light shade is standard adjustable in three positions 3000/4000/6000K, by supplying the luminaire with 24V. The luminaire does not come with a transformer!
Energy efficiency
High quality LED technology ensures that the luminaire is not only efficient but also energy efficient.
Applications
The luminaire emits light indirectly through the wall, making it particularly suitable for atmospheric rooms. For example, bedrooms, living rooms and narrow corridors can easily be illuminated and given a special atmosphere with Eclipse.
Home lighting
Easily bring a personalised look and feel to your home and create your own work of light art on your wall.
Office lighting
Create cosy office spaces with Eclipse luminaires.
Public spaces
The perfect solution for hotels and restaurants to create atmosphere and ambience.
Why choose this product?
- Adjustable colour temperature suitable for many environments
- Modern and minimalist design
- Energy efficient and long-lasting LED technology
- Easy to install and use
- A stylish lighting solution for any space
Installation
Fix the luminaire to the wall using the supplied fixing accessories, connect the luminaire to the mains and adjust the colour temperature to your preference using the control panel.
We recommend to use this luminaire with a Continuously Variable Temperature (CCT) control from 3000-6000K by connecting all the luminaires to the same transformer in parallel. This allows you to dim and adjust the mood continuously and wirelessly. The product images show a couple of examples of installation. In this case, the wire of the switch box of the luminaire is cut and the 3 wires are stripped out: + (red) and -warm (white), -cold (black).
Example:
- 2 pieces ECLIPSE 15cm
- 2 pieces ECLIPSE 30cm
- 100W 24V Zigbee transformer
- Wireless Zigbee CCT button
NOTE! Transformer to be purchased separately.
Read more about installation in our blog!
- Delivery status In Stock
- Brand Ledstore
- Breadcrumbs Home Led LightsLED wall lightsBlack wall lights Indoor LED wall light fixture — ECLIPSE 15cm, CCT 3000-6000K 24V, Black
- Category Black wall lights
- SKU Eclipse-15-B
- 10
- 500
- Interior, Exterior
- Black
-
Installation
Driver is separate. Light has switch inside installation box for direct 24V installation. For free CCT adjust cut connector box and strip 3 wires. + and two negatives (warm and cold) and install all lights paraller to driver. First attach the back plate to the wall, then connect wires and lastly install the light to the back plate. This light has a 3 year guarantee.
Size
Diameter 150mm
Depth 40mmCE and RoHS certified
- 24
- 24V, Dimmable
- 3000
- 176
- Life span 35000
- Eclipse-15-B
- 40x150mm
- 20
- 10
- 20
- No driver inside! Sold separate.
- CE, RoHS
Be the first to write a review!
By rating you will be entered into a prize draw for a €50 gift voucher.
WHAT IS CRI, THE COLOUR RENDERING INDEX
High quality LED lights also have a high colour rendering index, or CRI. A good colour rendering index (CRI) for home use is above 90, and nowadays many market lights are unfortunately closer to 80.
CRI tells you how well an LED light displays colours as they should be. For designers and architects, as well as interior designers, it should be one of the most important considerations. Make sure the lighting is perfect so that your artwork is what it is meant to be.
Colour rendering index
The colour rendering index is expressed as a number on a scale from zero to 100, where 0 = no colour rendering and 100 = full colour rendering. The colour rendering index of LED lights is also known as Ra, which is measured on a smaller scale than CRI. This Ra value does not include red tones or skin tones, for example, so it is a 'glossed' figure for the true quality of an LED light.
RA value
The Ra value measures the reproduction of colours using eight different reference colours. CRI takes into account the wider (15) wavelength range, including reds and other warm colours.
The Ra value is calculated by cutting the wavelength range, weighting the blue and violet tones, and calculating the weighted average of R numbers 1-8.
Excluded from the Ra value are, for example, the colour rendering of bright reds, yellows and greens, and shades close to skin tone. These are described by R-values between 9 and 15. The following is a picture of a measurement result that easily confuses the consumer.
This measurement is from a 9W CCT Led spot
Read more on this topic:
Colour rendering of LEDs - What is the difference between CRI and Ra-value?
