Indoor LED floor light fixture black — FLOOR LINE 1600, 16W Zigbee CCT adjustable
In stock at 9 pcs
SKU#: FLOOR-LINE-1600-B
5 / 5 (2)

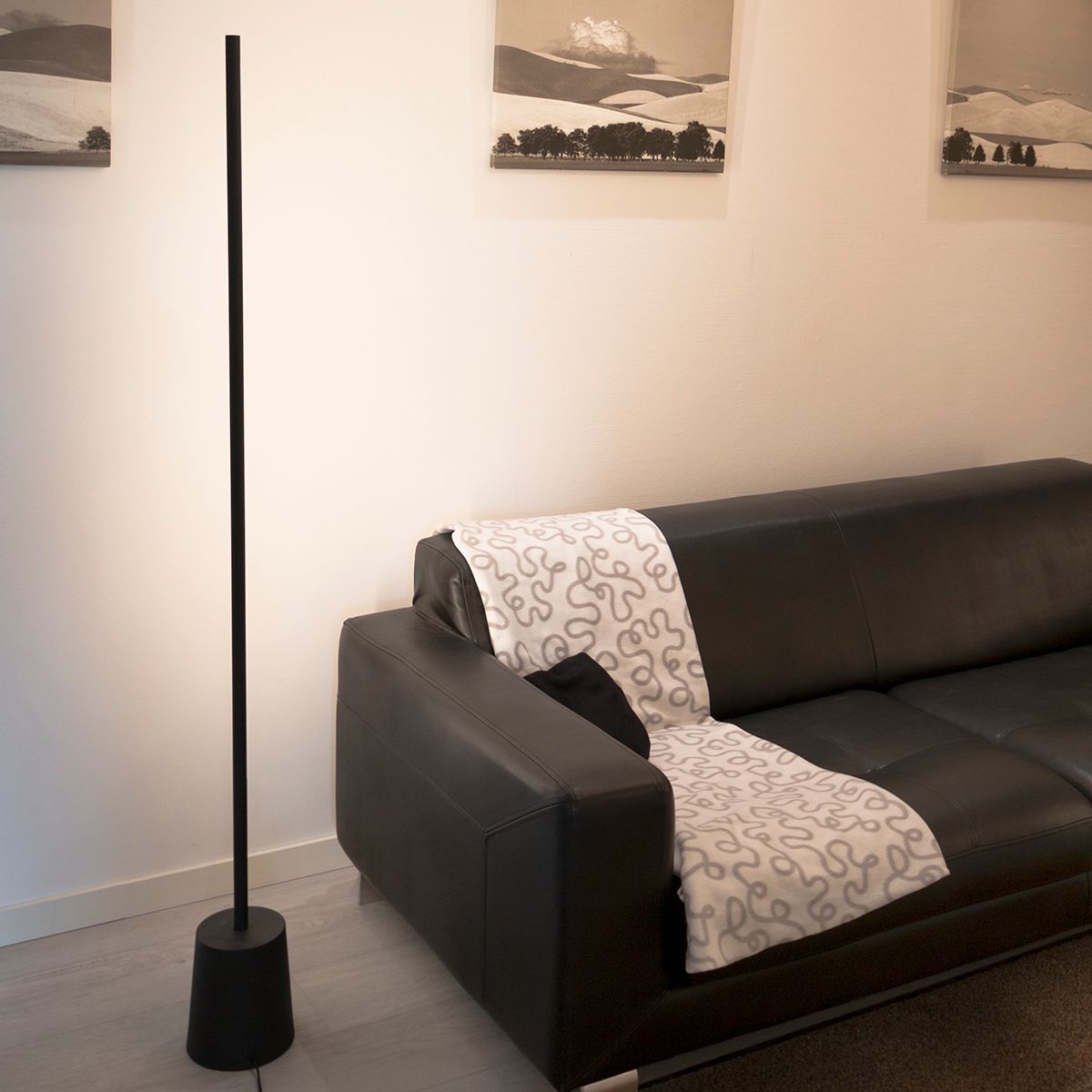

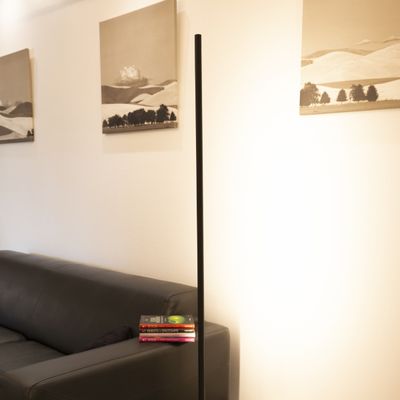

FLOOR LINE 1600 is a dimmable floor luminaire for indoor use. Floor LINE is a very simple and elegant luminaire. Floor LINE is designed to give light indirectly through the wall, making it particularly suitable for atmospheric rooms such as bedrooms and living rooms.
The luminaire is CCT adjustable and dimmable, so you can use the VaLO Zigbee controller to adjust continuously from 2700K (warm white) to 6500K (cool white) to find the right mood and light level.
The colour of the luminaire is matt black.
Read more
€ 379.00
VAT 0% | 24%
Add a comment to the order
Delivery methods
Free shipping for orders over to %s
Payment Methods
Pay safely with Credit/Debit Cards, Paypal and others.
Easy returns
Right of return for 14 days
About
FLOOR LINE 1600 is a floor luminaire for indoor use. Floor LINE is a very simple and elegant luminaire. Floor LINE provides light indirectly through the wall, making it particularly suitable for atmospheric spaces such as bedrooms and living rooms. The luminaire is also easy to move and swivel to provide light exactly where you need it.

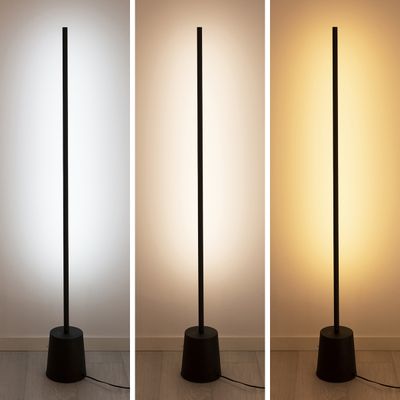

The luminaire has a white light colour temperature control, or CCT control, so you can adjust the colour temperature from 2700K (warm white) to 6500K (cool white). In addition, you can adjust the brightness of the luminaire to suit you with the VaLO Zigbee wireless controller included in the delivery.
Warm light for evening ambience and cold light for supporting plant growth, for example.
Includes VaLO Zigbee P1CCT button. The light control button can be freely positioned wherever you want, as the button is wireless. This light can also be connected to a smart home, thanks to the Zigbee feature.
If you buy just the lamp without the controller, it will be 4500K as standard and cannot be dimmed. Please contact us if you would like to have the lamp alone.
The light output is 16W which is equivalent to 100W halogen or 1 200 lumens. The body of the luminaire is matt black. The luminaire is also available in matt white. The luminaire has a 170 cm long plug-in cord with an additional on/off switch.
Size and material
Overall height 1630mm
Foot diameter 150mm
Luminaire material: body in white or black painted aluminium. Luminaire diffuser of opal plastic.
Wireless control
The power supply is located on the base of the luminaire. Pairing of the wireless push-button to the power supply is prefabricated at the time of delivery.
To learn the new wireless controller, you must quickly turn the lamp on 4 times and it will go into pairing mode. Place the button against the BOTTOM of the luminaire. The button enters pairing mode by pressing the top left corner 4 times quickly and then pairs by pressing the top right corner immediately.
The lamp is guaranteed for 3 years.
CE and RoHS approved.
- Delivery status In Stock
- Brand Ledstore
- Breadcrumbs Home By featuresLED lights surface-mounted Indoor LED floor light fixture black — FLOOR LINE 1600, 16W Zigbee CCT adjustable
- Category LED lights surface-mounted
- SKU FLOOR-LINE-1600-B
- 16
- 1200
- Interior
- Black
- 230
- Wireless Zigbee dimming
- 2700, 3000, 3500, 4000, 5500, 6000
- 176
- Life span 35000
- FLoor-Line-1600
- 150x1630mm
- 16
- 16
- 180
- CE, RoHS, IP21, Zigbee
New product review
Be the first to write a review!
By rating you will be entered into a prize draw for a €50 gift voucher.
Customer questions
No questions yet.
WHAT IS CRI, THE COLOUR RENDERING INDEX
High quality LED lights also have a high colour rendering index, or CRI. A good colour rendering index (CRI) for home use is above 90, and nowadays many market lights are unfortunately closer to 80.
CRI tells you how well an LED light displays colours as they should be. For designers and architects, as well as interior designers, it should be one of the most important considerations. Make sure the lighting is perfect so that your artwork is what it is meant to be.
Colour rendering index
The colour rendering index is expressed as a number on a scale from zero to 100, where 0 = no colour rendering and 100 = full colour rendering. The colour rendering index of LED lights is also known as Ra, which is measured on a smaller scale than CRI. This Ra value does not include red tones or skin tones, for example, so it is a 'glossed' figure for the true quality of an LED light.
RA value
The Ra value measures the reproduction of colours using eight different reference colours. CRI takes into account the wider (15) wavelength range, including reds and other warm colours.
The Ra value is calculated by cutting the wavelength range, weighting the blue and violet tones, and calculating the weighted average of R numbers 1-8.
Excluded from the Ra value are, for example, the colour rendering of bright reds, yellows and greens, and shades close to skin tone. These are described by R-values between 9 and 15. The following is a picture of a measurement result that easily confuses the consumer.
This measurement is from a 9W CCT Led spot
Read more on this topic:
Colour rendering of LEDs - What is the difference between CRI and Ra-value?
CCT CONTROLLABLE PRODUCT has won gold and bronze medals in two international design competitions in 2023!
Janne Halttu has been developing his own product family since the beginning of the company. Throughout the product development process, his own experience in building houses and installing lighting has been at the top of the list of requirements. The requirement list for CCT spotlights with colour temperature control included the following features:
- High quality - All parts of the luminaire are finished down to the connectors.
- High light quality - The LED circuitry of the luminaires has a very high colour rendering, CRI98!
- Smart home capability - Connectable to smart lighting management systems such as Zigbee, DALI2 without the need for a dedicated base transformer
- Quick to install - The luminaire has a quick connector for a Basic transformer, a pre-terminated connecting cable or a harness
- Minimum 600 Lumens - The luminaire has a removable opal which has the function of reducing the glare of the luminaire. By removing the lens, the light output can be increased by 10-15%
- Up to 55 mm high luminaire - The luminaire must fit into a standard Finnish ceiling structure consisting of 49x49 mm batten + 13 mm plasterboard.
- Small size transformer - The standard transformer of the luminaire can fit through the mounting hole of the luminaire.
- TRIAC dimmable - The basic transformer of the luminaire is TRIAC dimmable.
- Chainable - The standard transformer of the luminaire is chainable
- Long life - The luminaire has a burn time of +50,000 hours and a 7 year warranty
- Modular body - The luminaire's heat sink is a standard size spiral LED module which is interchangeable. We always use the same LED module in as many products as possible to make it environmentally friendly.
- Sustainability - The components of the luminaires must be able to be bought later.
LedStore's innovative CCT led family of luminaires has been entered in both the International Architecture & Design Awards 2023 and the A'Design Award 2023!
The results were gold and bronze in the lighting design category!
WINNING INNOVATION IN PARTS
All of the above are features of CCT spots. For example, we still have in stock LED circuits from products manufactured 10 years ago. This way, the customer is assured of a long availability of spare parts. The CCT led luminaire product family was initially launched with 10 luminaires, but since then the family has expanded and evolved. Today, the family consists of 55 products:
- 35 different CCT led spots, the development of which started in 2018 and the family has been launched in 2019
- 10 different CCT Led panels, development started in 2019 and the family has been launched in 2020
- 10 different CCT Led strip lights, which started development in 2019 and will be released in 2020
All-in-one system. Choose your CCT adjustable led luminaire of your choice. All products have high quality: colour rendering CRI 98 and a 5-7 year warranty.
WHAT IS THE REAL INNOVATION HERE?
There have been CCT lights on the market for a few years now, but all of them have used only pre-fixed switches, with a CRI of around 80. These products have also often been made of plastic, or thin sheet metal, with poor colour rendering. It's okay for customers to be free to choose the shade of light during installation, but why stop there?
"I wanted to make sure that when the interior changes, when new art is added to the wall or the carpet changes colour, the luminaires always bring out the best in the objects. So I designed a whole range of down lights that are beautiful, long-lasting, freely usable in any smart lighting system and with the highest possible lighting quality, CRI98. The luminaires are easy to install, and because they are low-voltage and have plug n play connectors, so no compromises!"
- Janne Halttu
TWO INSTALLATION METHODS
Basic:
Standard, where the luminaire comes with a transformer with a 3-position switch. The switch allows you to select a light temperature of 2900K/4000/5500K at the installation stage. The luminaire is TRIAC dimmable. The Led luminaires can be installed in chains.
Customizable:
Freely selectable from 2900-5500K. Selection is done by the desired lighting control system such as ZIgbee, DALI2, Z-Wave, etc. All lights are 24VDC parallel connected. Easy to add/remove Led lights. That is, the luminaire is purchased "Without its own transformer" and the luminaires are connected in parallel to one group transformer. This way all the luminaires behind the transformer are controlled by one single group and the CCT colour temperature of the luminaires can be freely adjusted and dimmed.
ACCESSORIES FOR THE PRODUCT FAMILY
The CCT product family also includes a complete IP54, pull-protected cabling kit with a 3 metre intermediate cable, and a choice of 3-piece or 6-piece splitter.
You can also use your own 3 pole cable for installation.
WHAT IS A COLOUR TEMPERATURE ADJUSTABLE LUMINAIRE?
A CCT-led light is a luminaire that allows you to change the colour temperature of white light. The range depends on the led luminaire, but can be as low as 2500K - 6500K.
The changes in colour temperature, which are clearly visible to the eye, range from yellowish light to bluish light. A temperature-controlled LED light changes the hue of the light so that the luminaire itself always has two LED circuits in parallel; cold and warm.
When the mixing ratio of the two is changed with a control, the colour temperature of the light changes. In addition to the possibility of changing the colour temperature of the light, the luminaires are dimmable.
Different materials and colours react differently to different light spectrums. It is very important to find the right colour temperature to suit your needs.
Read more on this topic:
Adjusting the colour temperature of spotlights, even according to the seasons
CCT adjustable led strip light
Janne Halttu
LedStore.fi entrepreneur who has built 4 detached houses for his family and renovated several properties. With 20 years of experience in construction, I have gained a lot of knowledge about structures and electrical work for several houses. I have been working with Led lighting for over 10 years. I am an expert in Led lighting, I write articles and I am a lighting designer. I often help clients with electrical and structural issues related to lighting and house construction.
