Diagram of a wall mounted LED luminaire: diameter 62 mm, depth 40 mm, front panel 80 x 80 mm. The text in Finnish contains additional information. loading loading loading loading loading loading

FUNK INWALL 3pcs + wires + driver SET

In stock at
SKU#: FUNK-INWALL-SET

Funk In-Wall 3 pcs + wires + converter set

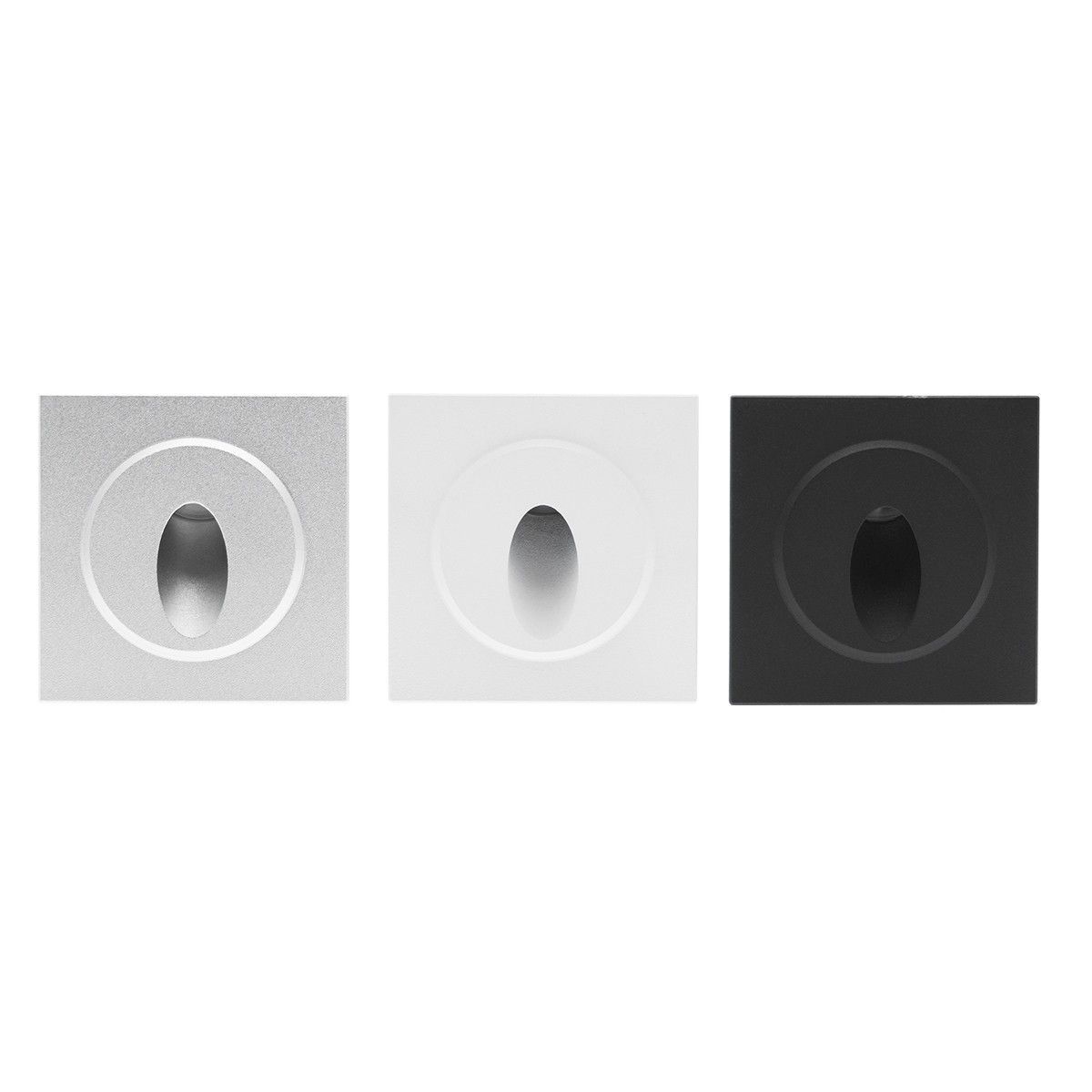

Choose between black, white or silver FUNK INWALL staircase/wall light.

Choose between standard transformer (non dimmable) or dimmable transformer.

The set also includes 3 pieces of 5m spacer wires and a splitter for the wires.

  • ready for installation 3 pcs set
  • wires and transformer included
Read more
from € 302.68
Add a comment to the order

I subscribe at the same time

compatible products

Delivery methods
Free shipping for orders over to %s
Payment Methods
Pay safely with Credit/Debit Cards, Paypal and others.
Easy returns
Right of return for 14 days
  • Product description

    Funk In-Wall 3 pcs + wires + converter set

    Choose between black, white or silver FUNK INWALL staircase/wall light.

    Choose between standard transformer (non dimmable) or dimmable transformer.

    The set also includes 3 pieces of 5m spacer wires and a splitter for the wires. The luminaires are connected in parallel to the 24V transformer.

    FOR MORE INFORMATION VISIT

    The light source is a 3W powerled which is equivalent to 15W halogen or 200 lumens. The lamp does not heat up but stays nice and cool and is safe for families with children or pets. The light colour is 3500K neutral warm white. The body of the lamp is powder coated.

    INSTALLATION

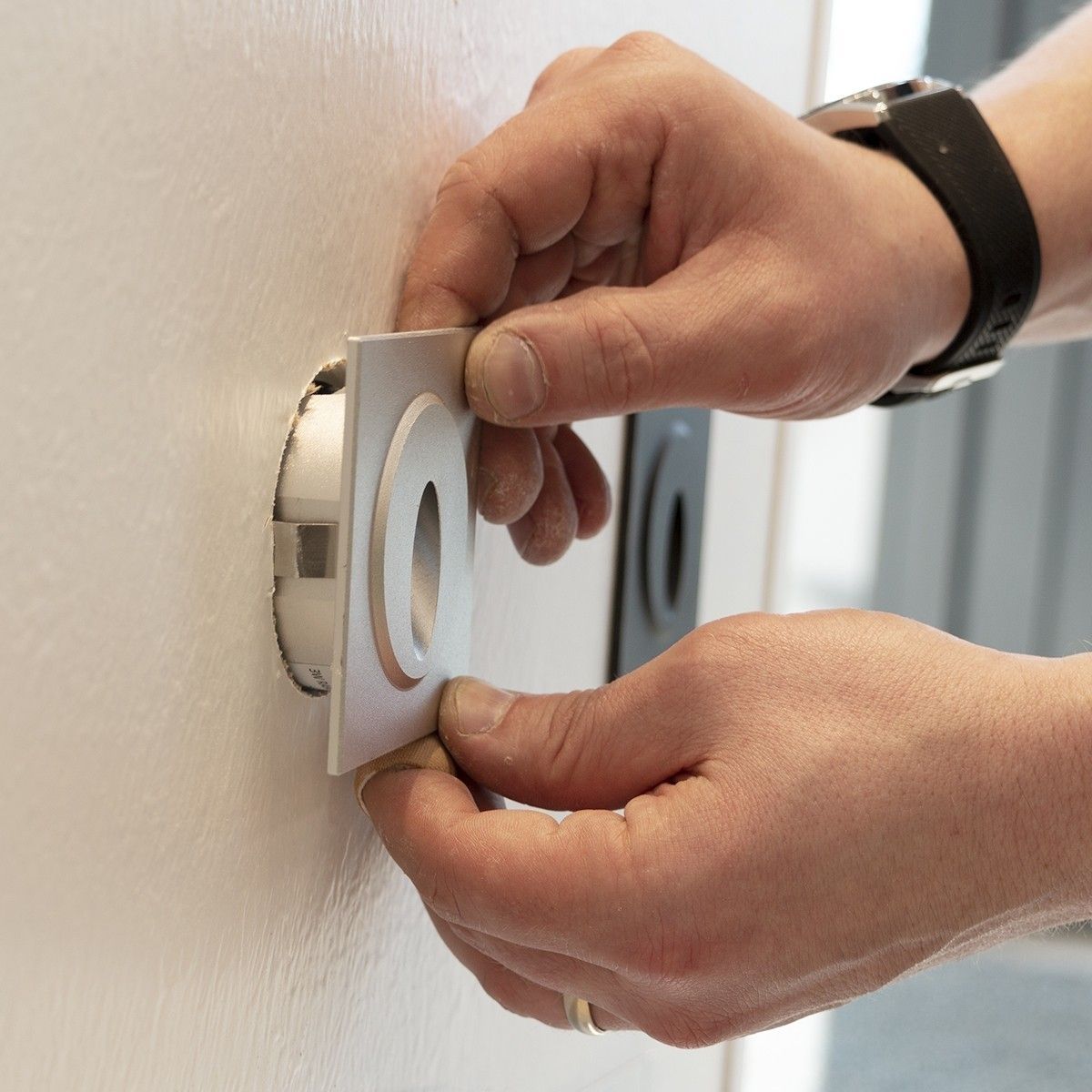

    FUNK IN-WALL luminaires are installed in the wall at a height of approximately 30-50 cm. The luminaire comes with a casting box which is inserted during the concrete pour, so that after the pour, installation is really just a matter of plugging in the luminaire and pushing it into place. The luminaire can also be installed in a wooden or plaster wall... The external dimensions of the luminaire are 80x80mm.

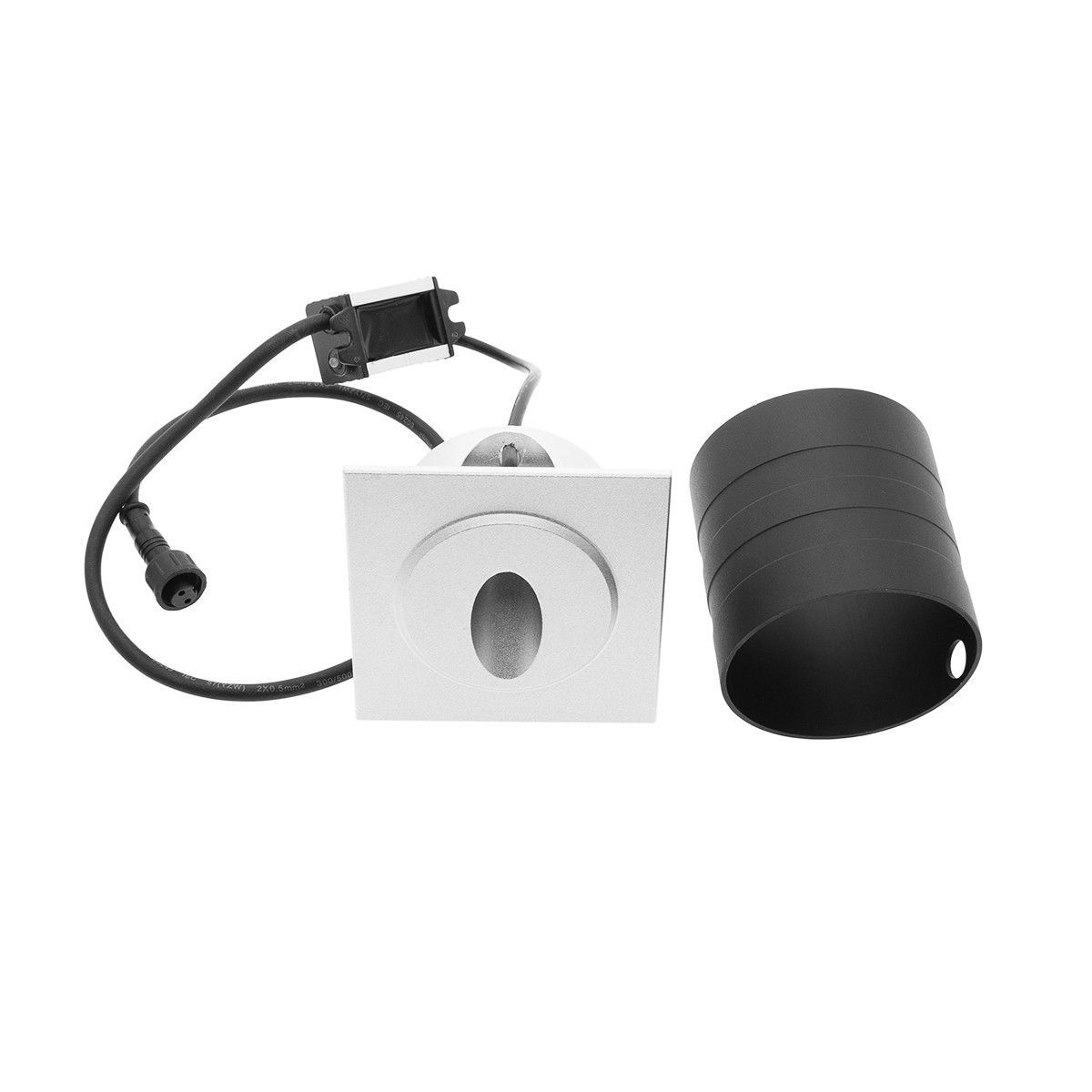

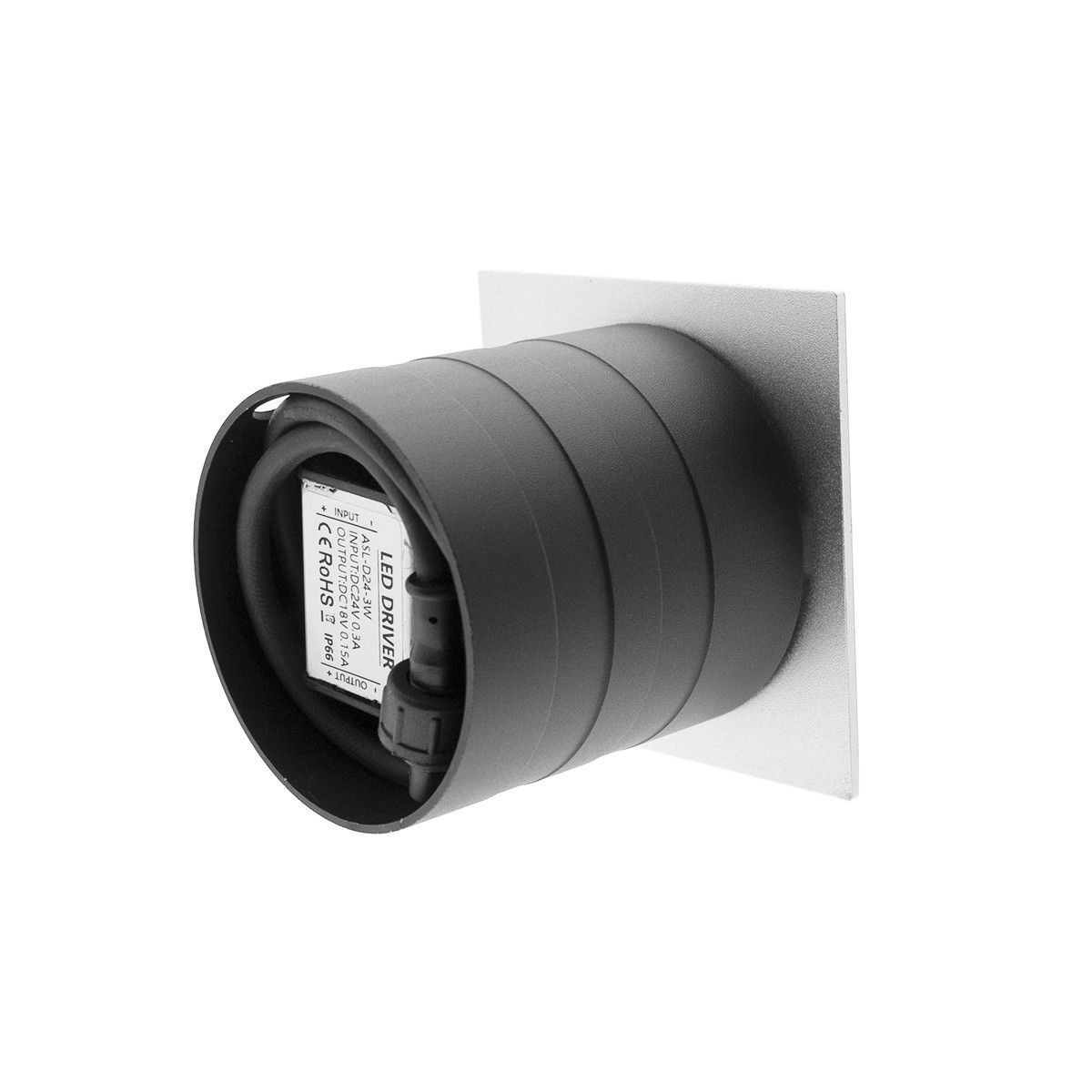

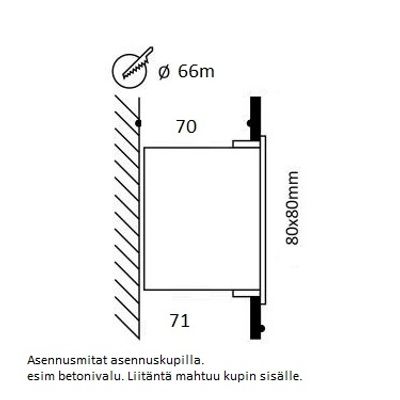

    With the supplied concrete mounting cup, the mounting hole is 66mm round and at least 70mm deep. The small ballast and connection of the luminaire can be accommodated in the cup.

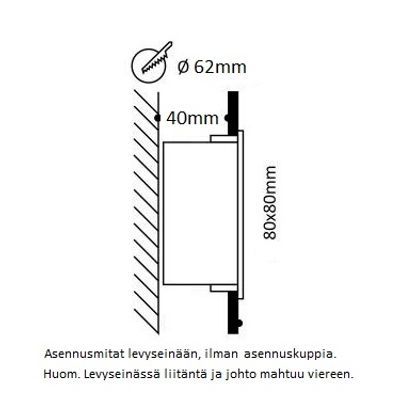

    Without the mounting cup, the mounting hole in a plaster wall, for example, is 62mm round and at least 40mm deep. The small ballast and wiring of the luminaire will fit in a normal spacing next to the ballast.

    Here are more components:

    5m intermediate cable, transformer, splitter for three, splitter for six

    The luminaire can be dimmed if a dimmable transformer is purchased.

    We give a 3 year warranty on the luminaire.

    CE and RoHS approved, IP66 luminaire.

  • Further information
  • Reviews
  • FAQ
  • CRI

Funk In-Wall 3 pcs + wires + converter set

Choose between black, white or silver FUNK INWALL staircase/wall light.

Choose between standard transformer (non dimmable) or dimmable transformer.

The set also includes 3 pieces of 5m spacer wires and a splitter for the wires. The luminaires are connected in parallel to the 24V transformer.

FOR MORE INFORMATION VISIT

The light source is a 3W powerled which is equivalent to 15W halogen or 200 lumens. The lamp does not heat up but stays nice and cool and is safe for families with children or pets. The light colour is 3500K neutral warm white. The body of the lamp is powder coated.

INSTALLATION

FUNK IN-WALL luminaires are installed in the wall at a height of approximately 30-50 cm. The luminaire comes with a casting box which is inserted during the concrete pour, so that after the pour, installation is really just a matter of plugging in the luminaire and pushing it into place. The luminaire can also be installed in a wooden or plaster wall... The external dimensions of the luminaire are 80x80mm.

With the supplied concrete mounting cup, the mounting hole is 66mm round and at least 70mm deep. The small ballast and connection of the luminaire can be accommodated in the cup.

Without the mounting cup, the mounting hole in a plaster wall, for example, is 62mm round and at least 40mm deep. The small ballast and wiring of the luminaire will fit in a normal spacing next to the ballast.

Here are more components:

5m intermediate cable, transformer, splitter for three, splitter for six

The luminaire can be dimmed if a dimmable transformer is purchased.

We give a 3 year warranty on the luminaire.

CE and RoHS approved, IP66 luminaire.

  • Delivery status In stock at
  • Brand Ledstore
  • Breadcrumbs Home By featuresVoltsLED 24V FUNK INWALL 3pcs + wires + driver SET
  • Category LED 24V
  • SKU FUNK-INWALL-SET
  • Lumen 600
  • Change Wires, lights and driver
  • Size 80x80x70mm or 80x80x40mm
  • Mounting hole (mm) 70
  • Wattage 9
  • Colour rendering (CRI ±3) 90
  • IP class IP66
  • Adjustability Not adjustable
  • Guarantee (year) 3 years
  • Life span 35000
  • Installation method Recessed
  • Installation level Wall
  • Approval CE, RoHS, IP65
  • Designed in Finland No
New product review

Be the first to write a review!

By rating you will be entered into a prize draw for a €50 gift voucher.

Customer questions
  • Three recessed wall luminaires in precast concrete for two staircases would be required. Do they come with a mounting box to be inserted into the element? How about the placement of the transformers? Is there any other solution to our need that you could recommend?

WHAT IS CRI, THE COLOUR RENDERING INDEX

High quality LED lights also have a high colour rendering index, or CRI. A good colour rendering index (CRI) for home use is above 90, and nowadays many market lights are unfortunately closer to 80.

CRI tells you how well an LED light displays colours as they should be. For designers and architects, as well as interior designers, it should be one of the most important considerations. Make sure the lighting is perfect so that your artwork is what it is meant to be.


Colour rendering index

The colour rendering index is expressed as a number on a scale from zero to 100, where 0 = no colour rendering and 100 = full colour rendering. The colour rendering index of LED lights is also known as Ra, which is measured on a smaller scale than CRI. This Ra value does not include red tones or skin tones, for example, so it is a 'glossed' figure for the true quality of an LED light.

RA value

The Ra value measures the reproduction of colours using eight different reference colours. CRI takes into account the wider (15) wavelength range, including reds and other warm colours.



The Ra value is calculated by cutting the wavelength range, weighting the blue and violet tones, and calculating the weighted average of R numbers 1-8.

Excluded from the Ra value are, for example, the colour rendering of bright reds, yellows and greens, and shades close to skin tone. These are described by R-values between 9 and 15. The following is a picture of a measurement result that easily confuses the consumer.


This measurement is from a 9W CCT Led spot

Read more on this topic:

Colour rendering of LEDs - What is the difference between CRI and Ra-value?
