FLIP double square IP21 black FRAME for GU10 or MR16
In stock at 50 pcs
SKU#: Double-tilt-IP21-B-lamp-frame
0 / 5 (0)
LedStore black double lamp holder with optional lamp holders. The lamps in the frame can be oriented from 0-30 degrees. Available with MR16 or GU10 lamp holders.
Read more
€ 19.90
VAT 0% | 24%
Add a comment to the order
Delivery methods
Free shipping for orders over to %s
Payment Methods
Pay safely with Credit/Debit Cards, Paypal and others.
Easy returns
Right of return for 14 days

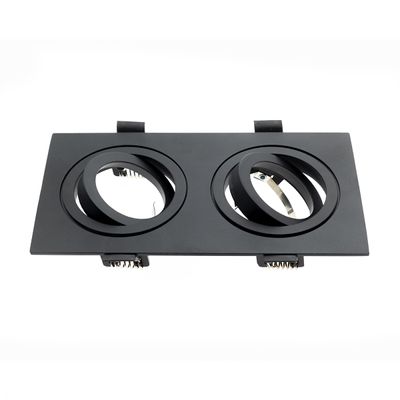

Black Double directional IP21 lamp holder for two GU10/MR16 lamps
LedStore's black edged double, triple-ended lamp holder with optional lamp holders. The lamps in the frames can be oriented from 0 to 30 degrees. Choice of MR16 or GU10 lamp holder.
Functional bulb holder
This black frame for two lamps is designed so that the bulbs mounted on it can be oriented from 0 to 30 degrees. The mounting hole is 160 x 76 mm. The bulbs can be replaced by pulling out the inner parts of the frame, without having to take the whole frame down.
The size of the frame is 180 x 92 mm and the thickness of the frame remaining on the surface is 2 mm.
IP21 protection for dry areas
This frame is IP21 only and does not protect the bulb from water.
Stock options
This holder is suitable for GU10 and MR16 (GU5.3) bulbs.
Led bulb options
GU10 LED bulb
GU10 bulbs use direct mains power. We have several GU10 models, including warm 3 000K and neutral 4 000K white, as well as a colour temperature adjustable Zigbee bulb.
The mounting space in the inner cover with GU10 should be at least 90 mm including the frame, GU10 bulb and the holder.
MR16 (GU5.3) LED lamp
MR16 (GU5.3) bulbs use 12V DC voltage and therefore require a power supply. We have several MR16 models, including warm 3 000K and neutral 4 000K white. We also offer 12V power supplies for different sizes of luminaires.
The mounting space in the inner cover with MR16 should be at least 70 mm including frame, MR16 lamp and lamp holder.
Safety note for installation
For this product you must take into account all fire regulations made for the installation of halogens, as it is possible to install a halogen lamp in this frame and stem. The halogen may reach temperatures above 200 degrees Celsius.
Information from
LedStore's KEHYS + KANTA package is intended for applications where a standard and interchangeable bulb is required. We recommend using a high quality LedStore LED bulb in the frame, so that replacement is less frequent and the heat load generated by the light source is minimised.
When choosing a flush-mounted LED luminaire with replaceable bulb, it is important to note that the luminaire must be surrounded by fire protection in the same way as halogen lamps. If no such protection is fitted, the cost should be taken into account when selecting the luminaire. The protection is required for fire safety reasons, as it is possible to inadvertently replace an LED bulb with a halogen bulb that can heat up to over 200 degrees Celsius. Such damage cannot occur with LED spotlights whose lampholder type/module is not identical to that of previous halogen lights.
Finally
We recommend the use of LedStore's advanced GU10 or MR16 led bulb. This light achieves a staggering colour rendering index of almost 100 points, so the light reproduces the colours of the environment exactly as they are intended.
There are also energy savings to be had, as one 6W spot is equivalent to as much as 50W of halogen at the same light output. So get a powerful spot that lasts and is available in dimmable or even temperature-controlled in ZIGBEE smart lighting.
- Delivery status In Stock
- Brand Ledstore
- Breadcrumbs Home LED bulbsGU10/MR16 frames FLIP double square IP21 black FRAME for GU10 or MR16
- Category GU10/MR16 frames
- SKU Double-tilt-IP21-B-lamp-frame
- Interior
- Black
-
Tilting frame
Frame is 180x92mm
Cutout is 76x160mm. You can change bulb without removing whole frame
Height requirement with GU10 is +90mm including frame, GU10 bulb and base.
Height requirement with MR16 is +70mm including frame, MR16 bulb and base.
Safety note for Installation
With this product, you need to take into account all fire regulations that are made for installing halogens as it it possible in some point to accidentially place a halogen bulb in this frame. Halogen might reach the temperature of over 200 celsius. This can not happen if you use sold frame led lights.
- Double-tilt-IP21-B-lamp-frame
- 180x85mm, cut hole 160x75mm
- 18.5
- 5
- 11
- 18
- CE
New product review
Be the first to write a review!
By rating you will be entered into a prize draw for a €50 gift voucher.
Customer questions
No questions yet.
WHAT IS CRI, THE COLOUR RENDERING INDEX
High quality LED lights also have a high colour rendering index, or CRI. A good colour rendering index (CRI) for home use is above 90, and nowadays many market lights are unfortunately closer to 80.
CRI tells you how well an LED light displays colours as they should be. For designers and architects, as well as interior designers, it should be one of the most important considerations. Make sure the lighting is perfect so that your artwork is what it is meant to be.
Colour rendering index
The colour rendering index is expressed as a number on a scale from zero to 100, where 0 = no colour rendering and 100 = full colour rendering. The colour rendering index of LED lights is also known as Ra, which is measured on a smaller scale than CRI. This Ra value does not include red tones or skin tones, for example, so it is a 'glossed' figure for the true quality of an LED light.
RA value
The Ra value measures the reproduction of colours using eight different reference colours. CRI takes into account the wider (15) wavelength range, including reds and other warm colours.
The Ra value is calculated by cutting the wavelength range, weighting the blue and violet tones, and calculating the weighted average of R numbers 1-8.
Excluded from the Ra value are, for example, the colour rendering of bright reds, yellows and greens, and shades close to skin tone. These are described by R-values between 9 and 15. The following is a picture of a measurement result that easily confuses the consumer.
This measurement is from a 9W CCT Led spot
Read more on this topic:
Colour rendering of LEDs - What is the difference between CRI and Ra-value?
