Ceiling Mount DALI-2 PIR sensor + Light Sensor

In stock at 19 pcs
SKU#: Sensor-DALI

DALI PIR sensor and light sensor

The ceiling mounted multisensor is a DALI-2 device combining a motion and light sensor. The device performs motion detection and measures the lighting level.

The result is increased living comfort and significant energy savings that meet the most demanding building energy regulations. The sensor is suitable for low-level dock applications where sensor-based automation is required.

The multi-sensor can be powered by a DALI bus and no additional power supply is required, which means easier and faster wiring and installation.

Read more
€ 59.00
VAT 0% | 24%
Add a comment to the order
Delivery methods
Free shipping for orders over to %s
Payment Methods
Pay safely with Credit/Debit Cards, Paypal and others.
Easy returns
Right of return for 14 days
  • Product description

    DALI PIR sensor and light sensor

    The ceiling mounted multisensor is a DALI-2 device combining a motion and light sensor. The device performs
    motion detection and measures the lighting level.

    The result is increased comfort and significant energy savings, meeting the most demanding building energy codes. The sensor is suitable for low-level dock applications where sensor-based automation is required.

    The multi-sensor can be powered by a DALI bus and no additional power supply is required, which means easier and faster wiring and installation.

    A DALI-2 compatible control panel such as the Iot DALI MASTER is required.

    How do I use a DALI multi-sensor?

    How do I use a DALI multi-sensor?

    The sensor is installed in the DALI bus like any other DALI device. See the wiring diagram:

    DALI PIR kytkentäkaavio

    Applications for DALI PIR

    This motion sensor (PIR) is most commonly used to automatically switch lights on and off in closets, warehouses and bathrooms. The lights can be controlled to turn on only at dusk, making it suitable for controlling night lighting.

    It is most commonly used as a human detector, turning on lights when a human presence is detected. In this way, it turns the lights off when no one is in the room. You can adjust the delay between movements (deadtime).

    Another way to use it is to automatically adjust the lighting levels according to the lighting levels in the room.

    Otherwise, it can adjust the lighting levels automatically according to the lighting levels in the room.

    Detection zone

    PIR-liikealue

    Features of the DALI multisensor

    • DALI2
    • PIR motion detection, motion sensor instance type 3 (303)
    • Luminance measurement, light sensor instance type 4 (304)
    • Autonomous sensor-based control
    • Flush mounting in the ceiling

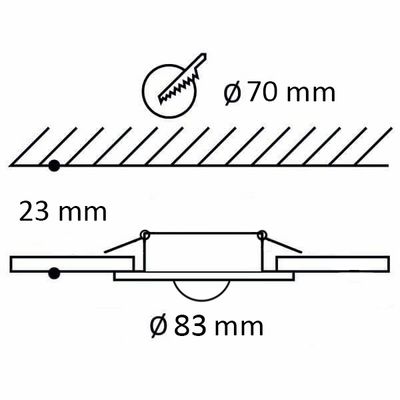

    • Cutting hole 70-73mm (outer diameter is 83mm)

    What is DALI?

    DALI dimming is a lighting control system that uses a digital protocol to communicate between the lighting controller and the lights themselves. This allows precise control of the brightness and colour of individual lights or groups of lights, as well as storing and restoring pre-programmed lighting conditions. DALI dimming systems usually consist of a DALI controller that sends commands and DALI-compatible luminaires that can receive and respond to these commands.

    DALI works best when it is designed and built from the ground up. This is because it needs two control wires running between the devices.

    DALI-järjestelmä

    Key features of a DALI system

    • It is a free protocol!
    • Anyone
    • can use it.
    • DALI2 certification requires devices made by different companies to work together. LedStore only uses certified products.
    • DALI is fairly easy to implement. You can install the power and control wires side by side, because they don't need to be protected. So 5 wires run everywhere: L, N, ground and 2 control wires (5×1,5 MMJ). the
    • wires can be installed in any way you want, as long as they are within 100 m of the DALI BUS controller. The distance can be even greater if repeaters are used.
    • The
    • maximum recommended length of the DALI network is 300 m
    • .
    • Since DALI uses digital signals for communication instead of analogue signals, the devices have the same dimming values. This makes control groups highly functional and accurate.
    • The system addressing system (DALI address) ensures that each device or group can be controlled individually.
    • Up to 64 DALI ECDs
    • can be
    • controlled by one DALI master.
    • Up to 64 DALI ECGs
    • can be controlled by one DALI master. Up
    • to 16 groups
    • can be
    • controlled by
    • one DALI master. Up
    • to 16 scenes can
    • be
    • controlled by one D
    • ALI master.

    DALI terminals

    DALI is challenging for a beginner to understand. What do all the terms mean? Here are the terms in brief

    DALI master

    A DALI master is a control centre or heart, which usually also contains the power supply for the DALI bus. The DALI master is the brain of the system, controlling all the devices. The master can be programmed and used in different ways depending on the master.

    • A USB connection is made between the computer and the master and the DALI software is installed on the computer.
    • IOT version where the master is controlled by a mobile phone/tablet wirelessly over the same Wlan network.

    DALI bus

    Where the DALI Master is the heart of the system, the DALI bus is the artery. It carries all commands digitally between all devices. The bus is a 2-pole cable that connects to EACH DALI device! The maximum length of the bus is usually 300 meters. The bus can be extended with repeaters/power supplies or by adding DALI masters.

    DALI bus power supply

    This is usually included in the DALI master. Its function is to maintain the bus voltage, the bus carries a 100-300mA 16V voltage which carries information.

    ECG

    ECG stands for Electronic Contor Gear, which is any device that supplies voltage to lights etc. This includes DALI transformers and DALI relays. One DALI master can control up to 64 (OUTPUT) ECG devices.

    ECD

    ECD stands for Electronic Control Device, a device that controls devices such as DALI buttons and DALI sensors. One DALI master can control up to 64 (INPUT) ECDs.

    Group

    In DALI, devices can be added to groups. One DALI master can have up to 16 groups. The purpose of a group is to reduce the number of DALI signals in the network and to facilitate operation. When a group receives a command, for example, to dim, all ECG devices in that group will dim. The devices in the group therefore behave identically. If you want the devices in the group to be at different levels, this is a scene.

    Scene

    In DALI, scenes can be programmed/stored on buttons. There can be up to 16 scenes in one DALI master. These have values between 0 and 15. The purpose of a scene is to create different lighting modes.

    For example, 50% of the output of a spotlight in a living room and 80% of the output of an LED strip light with a single command. This makes everyday use easier.

    Advantages of DALI dimming

    Dimmable DALI is an efficient and flexible lighting control technology that offers many advantages over traditional analogue dimming systems. Its accuracy, energy efficiency, scalability and ability to integrate with other building automation systems make it well suited to a wide range of applications in commercial, industrial and residential buildings. These are the benefits of DALI dimming:

    • Accuracy: DALI dimming allows precise control of the brightness and colour of individual lights or groups of lights, which can be particularly useful in commercial, industrial and residential buildings.
    • Energy efficiency: DALI dimming can help reduce energy consumption and lower operating costs by allowing precise control of the brightness and colour of lights.
    • Scalability: DALI dimming systems can be easily extended to control large numbers of lights, making them well suited to large commercial or industrial projects
    • .
    • Integration: DALI dimming systems can be easily integrated with other building automation systems, such as HVAC and security systems, allowing better control and automation of building lighting.
    • Flexibility: DALI dimming allows a wide range of options for controlling lights, from simple on/off switching to more advanced control options such as setting and resetting pre-programmed lighting conditions.
    • Common standard: It ensures that devices from different manufacturers always work in the same way when connected together.Common standard: It ensures that devices from different manufacturers always work in the same way when connected together
    • .
    • Easy to install: thanks to DALI fibre optic technology, you don't need to split lights into zones or keep track of wiring. DALI systems have two connected wires. These wires control all the devices. Installers don't have to keep track of everything because they don't need to know how the lights will eventually be installed.
    • Easy to change: you can make changes to the settings quickly. After a while, you might want to change the lights and get something nicer. With centralized software, you can change lighting profiles easily
