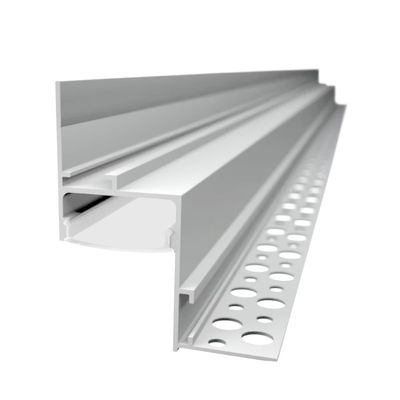

Wall-to-ceiling, plastered aluminium profile for LED strip
The EPÄSUORA Z LED profile is the perfect choice for those looking for a sophisticated and invisibly integrated lighting solution that frames a space in an elegant and discreet way. With this aluminium profile, you create a finished illumination at the wall/ceiling interface.
EPÄSUORA Z is an excellent choice for modern and minimalist interiors.
The profile is suitable for LED strips with a maximum width of 23 mm. The width of the profile allows two narrow LED strips to be installed side by side.
If you want the profile cut to size, please request a quote by e-mail.
Installation
This plastered aluminium profile allows installation directly into plasterboard for a finished, slightly recessed installation next to the wall.
The profile has a plastered wing for fixing, which is mounted on top of the roof sheet and a second side which is screwed to the wall.
The dimensions of the profile are designed for traditional 2" x 2", i.e. 48x48mm roof coving. At the installation stage, leave the framing 25mm away from the wall.
Profile opal diffusers should be installed so that the aluminium extension point and the diffuser seam do not coincide. This will reinforce the diaphragm.
The optionally available extension brackets facilitate the installation of profile seams and corners. Available in I-shaped and L-shaped extension pieces, as well as a 90 degree corner piece, for installations where the installation extends from the ceiling to the wall, for example.
The profile is on display in our store in Vantaa.
Profile delivery
The maximum length of the standard delivery is 175 cm. Ifyou order a profile over 175 cm and still choose the standard delivery, we will saw the profile to a size less than 175 cm.
If you want the profile to be delivered in full size (over 175cm), please ask for a quote. We will calculate the actual delivery price for you. The price varies depending on the delivery area.
You can also pick up a full-size profile from our shop.
LED strips ordered separately
LED strips are ordered separately.
We recommend our efficient CCT light colour temperature adjustable LED strip for spaces where people stay at different times of the day. The CCT adjustable LED strip allows you to change the white tone of the light from cold to warm, making it suitable for both relaxing and working.
In lobbies and other passageways, the monochrome strip works well. In public spaces, the RGB+W LED strip can be used to create 4000K white light during the day, and for evening lighting it can be used to create a variety of colours.
Request a quote for a set to suit your location either by email or from the products in your shopping cart.
Product information
- Installation height/depth of recess when using this profile: 50 mm.
- Distance of the framing member from the wall when using this profile: 25 mm
- Depth of the illuminated surface from the finished ceiling surface (when using 13 mm plasterboard): 20 mm
- Profile length: 2 m.
- Diffuser: opal plastic
- Material: anodised aluminium
