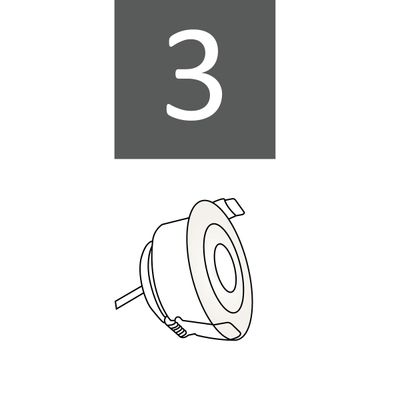

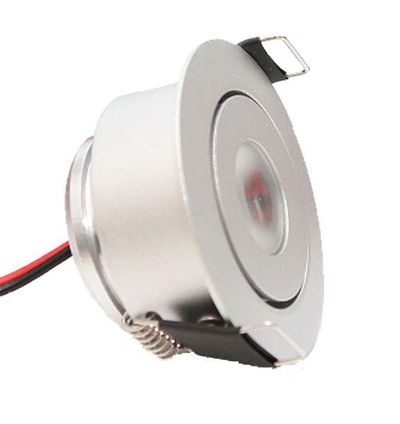

Adjustable & recessed LED downlight kit 3pcs 3W dimmable spots, white

Directional led spotlight kit

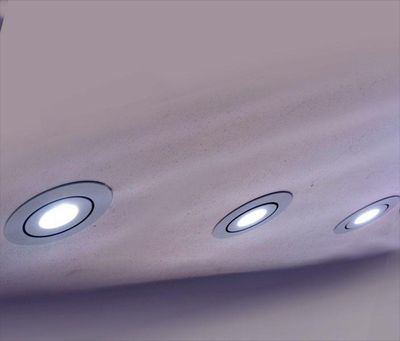

This led spotlight set is suitable for supplementary lighting such as light spots and wall surface accent lighting. The spots are ideal for creating atmospheric lighting as they are compact and dimmable. We do not recommend this luminaire for general lighting, but rather for accent lighting and pathway lighting, although it is efficient for its size.

Our secret ingredients are Cree's latest LED chips, with a colour rendering index of over 85 and excellent thermal conductivity. One bulb is equivalent in luminous intensity to 15W halogen, which in lumens is 200.

The same model is also available in white. For humid areas and terrace installations, a spotlight series in silver and white is also available. For humid areas, a well protected IP44 model is available on request. All models are available in 3000K (warm white) and 4000K (neutral white).

Installation

Installation is possible in very low spaces. The height of the luminaire is only 30mm and when oriented only 33mm. The diameter of the spot's mounting hole is 41-45mm. The light can be oriented between 0-15 degrees. The size of the power supply is 110x50x35mm. These fine mill sizes allow installation in a standard ceiling structure with only 48x48mm of insulation and 13mm plasterboard under the vapour barrier. We recommend installing a piece of board or plasterboard above the luminaire to prevent compression of the insulation.

LED spot kits include the correct size power supply, which depends on the size of the kit i.e. 3-4pcs kits, 5-6pcs kits and 7-8pcs kits all require a different power supply. Removing one bulb cuts the voltage and the lights go out. Therefore, do not leave any part of a set of lamps uninstalled, as this is likely to break the set. If you find that you have ordered the wrong number of bulbs in a set, please contact us and we will correct the problem. Led spot set spots have approximately 1.8m of cable from the spot to the power supply.

The power supply should always be placed in a dry area. If the installation is made in a bathroom (room IP44 model), the power supply is usually installed in a drop ceiling. We recommend to install a service hatch in the ceiling as well. If the installation is made in a recessed ceiling or outside, the power supply and the cable distributor must be protected against moisture, for example by placing them inside a moisture-proof box. The power supply is fitted with a black test lead which is posted when the power supply is connected to the mains. The lamp does not have a plug, but this is available as a special order.

You can count on us

With a superior five-year warranty on the LED and a three-year warranty on the power supply, you're in for a treat. All thanks to LedStore's decisively superior technology. All our luminaires are CE and RoHS approved.

Dim

Each luminaire comes with a dimmable power supply. We have moved the power supply to the outside of the luminaire so that it does not unnecessarily heat up the luminaire. The separate power supply also keeps the size of the luminaire small. The power supply of the luminaire is dimmable with TRIAC dimmers from the ENSIO side and works with home automation systems such as KNX and Talomatti. Suitable dimmers can be found in our shop: "Led dimmers"

For example, LED bulbs for LED lights:

ABB (former Ensto) Jussi model 6523U

Schneider (ex strömfors) transistor controller 315W/VA, EXXACT.
