Adjustable ModLed FRAME, matte black, tiltable + GU10/MR16 base
In stock at 174 pcs
SKU#: ModLed-B-frame-IP21
0 / 5 (0)
Directional IP21 (dry room) frame for ModLed series. The frame is matt black and suitable for use with GU10 and MR16 bulbs and caps. Orientation 30 degrees.
Read more
€ 14.90
VAT 0% | 24%
Add a comment to the order
Delivery methods
Free shipping for orders over to %s
Payment Methods
Pay safely with Credit/Debit Cards, Paypal and others.
Easy returns
Right of return for 14 days
Modled Black directional IP21 lamp holder for GU10/MR16 lamp
Matt black lampholder for the ModLed series. Stylishly finished lamp frame with halogen replacement bulb holders. The lamp in the frame can be oriented from 0 to 30 degrees. Choice of MR16 or GU10 base. No need for a bracket if you install this together with the ModLed module.
Functional bulb frame
This black bulb frame is designed so that the inner frame rotates and the bulb can be oriented from 0 to 30 degrees. The mounting hole is 70 mm. The frame is held in the mounting hole by two springs which are provided in the frame.
The outer diameter of the frame is 85 mm.
IP21 protection for dry areas
This frame is IP21 only and does not protect the bulb against water.
Stock options

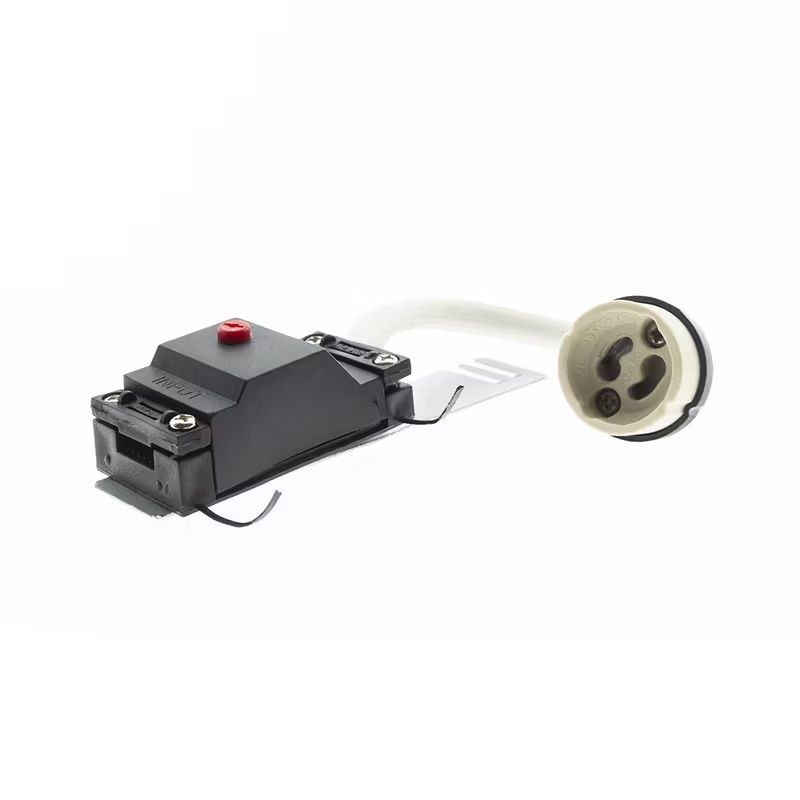

This holder is suitable for GU10 and MR16 (GU5.3) bulbs, as well as ModLed bulbs, which do not require a separate holder.
Led bulb options
GU10 LED bulb
GU10-carrier bulbs use direct mains power We have several GU10 models, including warm 3,000K and neutral 4,000K white, as well as a colour temperature adjustable Zigbee bulb.
The mounting space in the inner cover with GU10 should be at least 90 mm including the frame, GU10 bulb and the holder.
MR16/GU5.3 LED lamp
MR16 (GU5.3) bulbs use 12V DC voltage and therefore require a power supply. We have several MR16 models, including warm 3 000K and neutral 4 000K white. We also offer 12V power supplies for different sizes of luminaires.
The mounting space in the inner cover with MR16 should be at least 70 mm including frame, MR16 lamp and lamp holder.
ModLed module 8W 230V, 3000K
The ModLed LED module 8W, 3000K (warm white) is suitable for use with ModLed frames and our range of GU10/MR16 frames. The ModLed led module has a junction box that can be daisy-chained with quick connectors. So installation is quick!
Safety note for installation
With this product you must take into account all fire regulations made for the installation of halogens, as it is possible at some point to accidentally insert a halogen lamp into this frame and bracket. The halogen may reach temperatures in excess of 200 degrees Celsius.
Information from
LEDStore's KEHYS+KANTA package is intended for applications where a standard and interchangeable bulb is desired. We recommend using a high quality LedStore LED bulb in the frame, so that replacement is less frequent and the heat load generated by the light source is minimised.
When choosing a flush-mounted LED luminaire with replaceable bulb, it is important to note that the luminaire must be surrounded by fire protection in the same way as halogen lamps. If no such protection is fitted, the cost should be taken into account when selecting the luminaire. The protection is required for fire safety reasons, as it is possible to inadvertently replace an LED bulb with a halogen bulb that can heat up to over 200 degrees Celsius. Such damage cannot occur with LED spots whose lampholder type/module is not identical to that of previous halogen lights.
Finally
We recommend using Led Store's advanced GU10 or MR16 led bulb, or LedStore's ModLed modular bulb. These products have achieved a staggering colour rendering index of almost 100 points, so the light reproduces the colours of the environment exactly as they are intended.
Energy savings are guaranteed, as one 6W spot is equivalent to as much as 50W halogen with the same light output. So get a high performance spot that lasts and is available in dimmable or even temperature-controlled with ZIGBEE smart lighting.
- Delivery status In Stock
- Brand Ledstore
- Breadcrumbs Home Led Lights Adjustable ModLed FRAME, matte black, tiltable + GU10/MR16 base
- Category Led Lights
- SKU ModLed-B-frame-IP21
- Mounting hole 6.5
- Designed in Finland Yes
- Colour 174
- Model ModLed black frame IP21
- Size 80x2mm
- Length of the package 11
- Height of the package 5.5
- Width of the package 11
- Diameter of the product 8
- Change 30 degrees tiltable
- PDF modled_ip21_3000k_cri_test_report.pdf
- PDF modled_ip21_3000k_cri_test_report.pdf
New product review
Be the first to write a review!
By rating you will be entered into a prize draw for a €50 gift voucher.
Customer questions
No questions yet.
WHAT IS CRI, THE COLOUR RENDERING INDEX
High quality LED lights also have a high colour rendering index, or CRI. A good colour rendering index (CRI) for home use is above 90, and nowadays many market lights are unfortunately closer to 80.
CRI tells you how well an LED light displays colours as they should be. For designers and architects, as well as interior designers, it should be one of the most important considerations. Make sure the lighting is perfect so that your artwork is what it is meant to be.
Colour rendering index
The colour rendering index is expressed as a number on a scale from zero to 100, where 0 = no colour rendering and 100 = full colour rendering. The colour rendering index of LED lights is also known as Ra, which is measured on a smaller scale than CRI. This Ra value does not include red tones or skin tones, for example, so it is a 'glossed' figure for the true quality of an LED light.
RA value
The Ra value measures the reproduction of colours using eight different reference colours. CRI takes into account the wider (15) wavelength range, including reds and other warm colours.
The Ra value is calculated by cutting the wavelength range, weighting the blue and violet tones, and calculating the weighted average of R numbers 1-8.
Excluded from the Ra value are, for example, the colour rendering of bright reds, yellows and greens, and shades close to skin tone. These are described by R-values between 9 and 15. The following is a picture of a measurement result that easily confuses the consumer.
This measurement is from a 9W CCT Led spot
Read more on this topic:
Colour rendering of LEDs - What is the difference between CRI and Ra-value?
