5m LED strip SOLO, 4000K, 12V, 14,4W/m, IP65, CRI92

5m LED strip SOLO, 4000K, 12V, 14,4W/m, IP65, CRI92

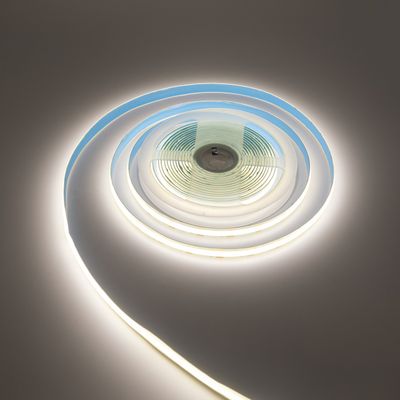

LED strip light SOLO 4000K 14,4W/m The light of the strip light is beautifully even. This LED strip is dimmable. The colour temperature of the LED strip light is neutral white 4000K.

Product information

The actual power of this led strip is 13,7W/m and it produces 1467 lumens per meter. The strip has 540 LEDs/m and has 2.2 cm intersections. The colour rendering index (CRI) of the strip is 92.

Installation

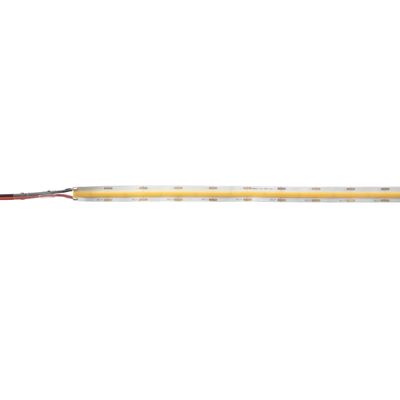

The LED strip comes in 5m rolls and can be cut to size up to 22mm apart. The strip has power cords at both ends. The red wire is the +, and the black wire is the -. Our LED strip is easy to attach with the 3M high grip tape included. The cutting points can be found on the underside of the strip under the tape. The cut points have copper dots, so you can solder a low current wire to the strip from these points to connect to the transformer. We recommend soldering the tapes together. When soldering, use a knife to open up the silicone coating that protects the strip at the copper points.

We recommend that for long runs (over 10m), the transformer supply is branched at both ends of the LED strip to avoid light degradation at one end of the strip. The led strip should always be attached to an aluminium strip so that excess heat is conducted away from the led circuit. This will prolong the life of the led strip. Aluminium profiles can be ordered from our online shop, where we have a wide range of different profiles available. We also offer a range of branching plugs and connecting wires.

LED strip works well with solar energy, in boats and cars thanks to the 12V. The power supply does not need to be dimmable when dimming with a regulator and receiver. Alternatively, there is also a wireless control RF or Zigbee transformer, where the transformer pair connects directly to the wireless button.

We are happy to help with installation and ordering questions.

Download from

To dim your LED strip, you can use either a traditional rotary, wired dimmer or our VaLO RF Series wireless dimmer. When using the rotary conventional dimmer, the transformer of the LED strip must be TRIAC dimmable. The strips can also be controlled by DALI systems. Wireless dimming is perfect for applications where there is no wall switch for the luminaire, but the luminaire is powered by a constant current.

In the case of a smart home, a Zigbee transformer and controllers for wireless control are chosen. In Zigbee transformers, the receiver is already built-in.

With the VaLO RF wireless solution, you simply install the receiver between the LED strip and the power supply. You can then control the strip with wireless switches from wherever you want. The wireless switch is powered by batteries, which are easily replaceable. You can also mount the switch on the wall if you wish, but it does not need a separate power supply.
