5m LED strip HELMI, 3000K, 24V, 14,4W/m, IP20, CRI96

5m LED strip light HELMI, 3000K, 24V, 14,4W/m, IP20, CRI96

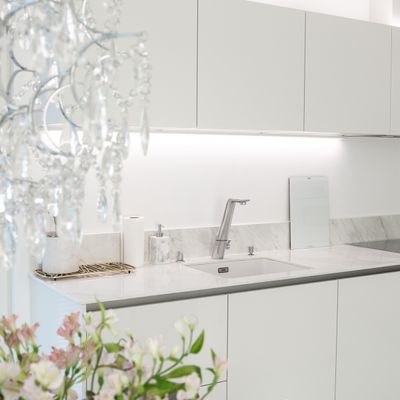

This HELMI LED strip has a luminous intensity of 15.8W/m and 120 LED circuits per metre. This makes the light uniform enough for indirect lighting and countertop lighting, for example. When mounted on an aluminium profile, there is only a small amount of pointing. When indirectly illuminated through a wall, the light is uniform.

Excellent colour rendering

The CRI indicates how well an LED light reproduces colours as they should be. A high CRI value indicates that the luminaire reproduces a wide range of colours. The closer you get to 100, the more naturally colours are reproduced. This LED strip light has a CRI of up to 96, which ensures excellent colour rendering.

About

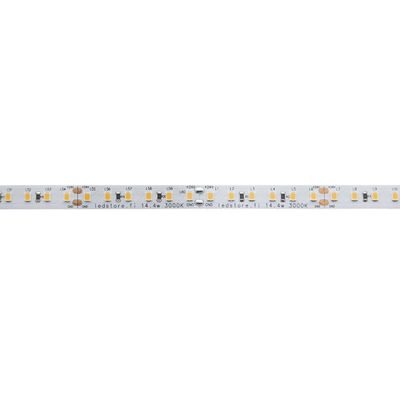

We use MD 2835 led circuitry with a colour rendering index of over 95. This led strip is dimmable and suitable for indoor use. Our led strip is easy to attach with the 3M high adhesive tape included. This led strip 15,8W/m is equivalent to the light output of almost 120cm fluorescent tube, so you will save a lot of electricity with this solution! The colour temperature of the Lend strip is warm white 3000K.

Installation

In addition to the Led strip, a power supply and an aluminium profile are required for installation, as well as operating switches.

The LED strip comes in a 5m roll and can be cut to size every 5cm. The tape has clear markings to make cutting easier. We recommend soldering the strips together, as we have found that the quick connectors loosen over time and loosening causes the lights to flash. Both ends of the tape have pre-soldered connectors that can be used depending on the destination.

We recommend powering from both ends if there is more than 10m of continuous strip, this prevents light loss and gives an equally bright light from both ends. The Led strip should always be attached to an aluminium strip to allow excess heat to be conducted away from the LED circuitry. This extends the life of the LED strip and keeps the warranty valid. Aluminium profiles can be ordered from our online shop, where they are available in several different types.

LED strip 24V works well with solar power and boats that use 24VDC, then a separate power supply is not needed.

Connecting plugless transformers is electrical work and requires adequate qualifications. We are happy to help with any installation questions.

Dimming

To dim the LED strip, you can use either a traditional rotary wired dimmer or our VaLO RF series wireless dimmer. When using a conventional rotary dimmer, the transformer of the LED strip must be TRIAC dimmable. The strips can also be controlled by DALI systems. Wireless dimming is perfect for applications where there is no wall switch for the luminaire, but the luminaire is powered by a constant current.

In the case of a smart home, a Zigbee transformer and controllers for wireless control are chosen. In Zigbee transformers, the receiver is already built-in.

With the VaLO RF wireless solution, you simply install the receiver between the LED strip and the power supply. You can then control the strip with wireless switches from wherever you want. The wireless switch is powered by batteries, which are easily replaceable. You can also mount the switch on the wall if you wish, but it does not need a separate power supply.

Create your own light

Why use an LED strip only for traditional applications when you can make a light from almost anything? Create your own wall light by bending the LED strip and the aluminium profile to the shape you want, or by fixing the LED strip to another heat-conducting material. Turn a mirror, table frame, trunk, table or chair into a lamp with the LED strip. A good design is half the job. We are happy to help you with your design, and we make LED strip made to measure at LedStore's LedShop.
