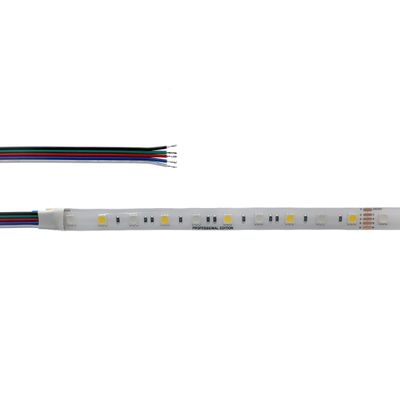

5m LED lightstrip HELMI KAMELEONTTI, RGB+W, 24V, 14,4W/m, IP65, CRI85

5m LED strip light HELMI CHAMELEONT, RGB+W, 24V, 14,4W/m. IP65, CRI85

In the Kameleontti light strip we use RGB+4000K LED circuits with a white colour rendering index of 85. This LED strip is efficient, dimmable and waterproof (thin, non-yellowing silicone surface). Our LED strip is easy to attach with the 3M high adhesive tape that comes with it. Other accessories such as transformer, regulator, aluminium profile are ordered separately. The total power consumption of the LED in a 5 meter roll is 72W (36+36W), so if you install the whole 5 meters, you will need at least 80W 24V transformer.

For stylish playful lighting

Our cameleon RGB strip has a luminous intensity of 14.4W/m (7.2W RGB + 7.2W 4000K) and has 60 LED circuits per metre. The surface of the LED strip has a thin, non-yellowing silicone coating that protects the strip from water. the 14 W/m power makes the light sufficient for illumination. The RGB LED strip is used in spaces where you want to create a changing atmosphere by changing the colour of the light. The strip also features a white 4000K led circuit. The white light of the strip has a colour rendering index, CRI, of 84, which is suitable for use in home lighting.

The LED has very low specularity when viewed directly from the front, when mounted on a 16x18mm white aluminium profile, for example. In the kitchen, for example, when mounted on top of cupboards, the whole room is lit evenly (no pinpointing) and the mood changes. In living rooms / cinema rooms, an RGB LED strip can be used to create a stylish atmosphere, for example in the chute of a drop-down sash or on the shelf of a sash. Lighting shelves and levels with RGB LED strip from different directions also creates an interesting, changing look throughout the room. In children's rooms and bedrooms, RGB LED strip is also a great choice for cheerful and lively lighting, or alternatively for calm and relaxing lighting. RGB LED strip is also used in bathrooms and wet rooms. Care must be taken when installing the ribbon in water. The surface of the strip is waterproof, but it does not come with pre-waterproof connectors.

Installation

The LED strip comes in a 5m roll and can be cut to size and soldered every 16cm. We also sell the tape in lengths of your choice. The ribbon has clear markings to make cutting easier. There is a 10 cm splicing cable (5-conductor) at each end of the reel. We recommend soldering the connecting wires together, as we have found that the quick-release fasteners loosen over time and loosening causes the lights to flash. A carefully done LED strip installation will last for years. The RGB LED strip has a calculated lifetime of 35 000 hours. We are happy to help with installation and product selection.

The RGB LED strip can be operated with the VaLO series wireless controller and control unit, which is connected between the strip and the power supply. It can also be installed with transformers for wireless control (such as RF or ZIGBEE). Installation with a wired wall controller and a 24V non-dimmable transformer is also possible.

We recommend powering from both ends if the tape is installed in a continuous run of more than 10 meters. This prevents light loss and provides an equally bright light from both ends. The LED strip should always be attached to an aluminium strip so that excess heat is conducted away from the LED circuit. This will prolong the life of the strip and keep the warranty valid.

The Led strip works well with 24V systems such as solar power, boats and cars. Then a separate power supply is not needed. In other cases, order a suitable 24V power supply for the strip (e.g. 5m 14,4W is 72W in total, so any 24V power supply over 80W will work).

See

To dim the LED strip you can use the wireless dimmer of our VaLO RF series. The strips can also be controlled by DALI systems. Wireless dimming is perfect for applications where there is no wall switch for the luminaire, but the luminaire is powered by a constant current.

In the case of a smart home, a Zigbee transformer and controllers for wireless control are chosen. In Zigbee transformers, the receiver is already built-in.

With the VaLO RF wireless solution, you simply install the receiver between the LED strip and the power supply. You can then control the strip with wireless switches from wherever you want. The wireless switch is powered by batteries, which are easily replaceable. You can also mount the switch on the wall if you wish, but it does not need a separate power supply.
