5-STEP slide switch 200W

In stock at 15 pcs
SKU#: 5-STEP-LIUKUKYTKIN-200W

5-position slide switch, max. 200W. For selecting the light tone of 24V CCT luminaires. Installed between temperature-controlled lights and a 24V transformer.

  • 5-position slide switch
  • CCT for lights
  • Connecting wires at both ends
  • Installation on the low current side
  • Max. 200W
€ 15.00
Delivery methods
Free shipping for orders over to %s
Payment Methods
Pay safely with Credit/Debit Cards, Paypal and others.
Easy returns
Right of return for 14 days

  • 5-STEP sliding switch, max. 200W

    5-position slide switch, max. 200W.

    CCT technology

    CCT lamps operate with 3 wires (+, warm, cold) where home automation, typically Dali or Zigbee, continuously regulates the voltage between cold and warm and thus changes the temperature of the light.

    But it doesn't always work or you want to choose the shade only once and forget about it.

    5 step slide switch for color selection

    This 5-position slide switch allows you to select the desired shade for CCT lights by installing it between the lights and the 24V transformer.

    The slide switch therefore has 2 wires (24VDC) and 3 wires coming out of it for the lamps.

    The switch has a 3-pole quick connector with strain relief (out) and loose wires at the other end (in).

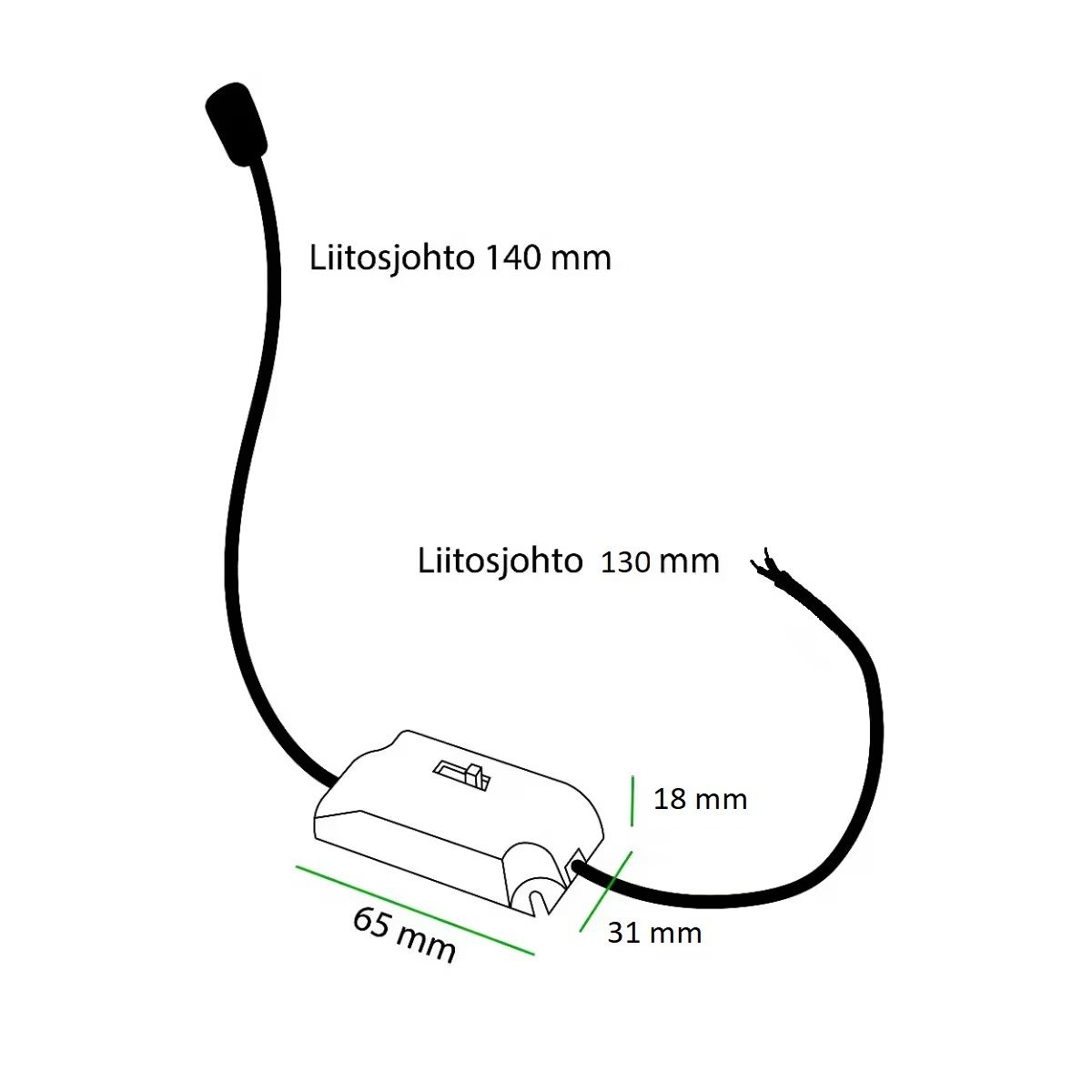

    Slide switch dimensions:

    Length: 65mmWidth: 31mmHeight: 18mm

5-STEP sliding switch, max. 200W

5-position slide switch, max. 200W.

CCT technology

CCT lamps operate with 3 wires (+, warm, cold) where home automation, typically Dali or Zigbee, continuously regulates the voltage between cold and warm and thus changes the temperature of the light.

But it doesn't always work or you want to choose the shade only once and forget about it.

5 step slide switch for color selection

This 5-position slide switch allows you to select the desired shade for CCT lights by installing it between the lights and the 24V transformer.

The slide switch therefore has 2 wires (24VDC) and 3 wires coming out of it for the lamps.

The switch has a 3-pole quick connector with strain relief (out) and loose wires at the other end (in).

Slide switch dimensions:

Length: 65mmWidth: 31mmHeight: 18mm

  • Delivery status In Stock
  • Brand Ledstore
  • Breadcrumbs Home Led LightsLED downlightsAccessories for spots 5-STEP slide switch 200W
  • Category Accessories for spots
  • SKU 5-STEP-LIUKUKYTKIN-200W
  • Change Max. 200W
  • Size 65mm x 31mm x 18mm
  • Light control 176
  • IP class IP21
  • Guarantee (year) 5 years
