Led light ribbon with all spices

Led light ribbon with CHAMELEONT and TUNNAMENT in one! We use RGB+CCT (2500-6000K) led circuits with a white colour rendering index of 98! This led strip light is efficient, dimmable and a real all-rounder. our led strip light is easy to attach with the 3M very strong adhesive tape. Other accessories such as transformer, regulator, aluminium profile are ordered separately. This led strip light can also be used as RGBW strip light with either 2500K, 4500K or 6000K white light.

Led strip light for elegant playful lighting

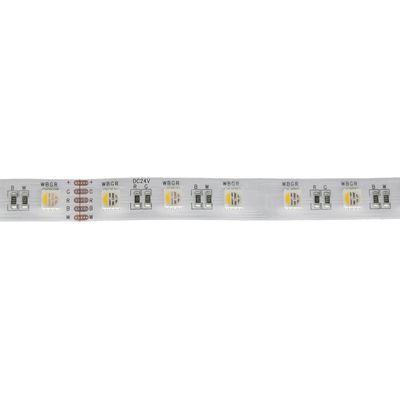

Led strip light with RGB+CCT, has a light output of 20W (10W RGB + 10W CCT) /m and has 50+50 led circuits per metre. Our RGB+CCT devices only use RGB or CCT shade separately, so the power requirement is 10W/m, but if you have a dedicated controller that allows you to use CCT and RGB AT THE SAME TIME, the power requirement is 20W/m. That 10W power will make the light sufficient for mood lighting. The RGB led strip light is used in spaces where you want to create a changing mood by changing the colours of the light, but because the strip light also has a very high quality CCT led circuit, you can light the space well and see the colours as they are intended. Why? Because the strip light has a colour rendering performance of CRI 98!, making it suitable for home lighting or any demanding application.

The pinpoint accuracy of the LED can be seen when viewed directly from the front, for example when mounted on a 16x18mm white aluminium profile. In the kitchen, for example, when mounted on top of cabinets, the room will have uniform (no pinpoint) lighting and a changing atmosphere. In living rooms / cinema rooms, a RGB+CCT-led strip light can be used to create a stylish atmosphere, for example in the chute of a drop-down sash or on a sash shelf. Lighting shelves and levels with RGB+CCT-led strip lighting from different directions also creates an interesting, changing look throughout the room. In children's rooms and bedrooms, RGB-led strip lighting is also a great choice when joy and life are desired, or alternatively for calm and relaxing lighting with white light. RGB-led strip lighting is also used in bathrooms and wet rooms when installed on our splash-proof profiles, which are available in several different types.

Led strip light installation

Led strip light cutting

Led strip light comes in 1m rolls and can be cut to size and soldered every 12.5cm. We also sell the strip in lengths of your choice (note the cutting spacing!). The tape is clearly marked for easy cutting. There is a 10 cm splicing cable at each end of the roll (six-conductor, R, G, B, WW, CW, +). We recommend soldering the connecting wires together. A carefully done LED strip light installation will last for years. The RGB+CCT-led strip light has a calculated lifetime of +35 000 hours.

We are happy to help with installation and product selection.

Led strip lighting control

The RGB+CCT-led strip light can be operated with the VaLO-Zigbee series wireless controller and control unit, which is connected between the strip light and a separately purchased power supply. The controller can of course also be controlled by other Zigbee devices (Philips HUE, Conbee2 USB stick, etc..). Of course you can also buy separate RGB and CCT transformers if needed...

We recommend powering from both ends if the strip light is installed in a continuous length of more than 10 meters. This prevents light loss and gives an equally bright light from both ends. the LED strip should always be attached to an aluminium strip to allow excess heat to escape from the LED circuitry. This will prolong the life of the led strip light and keep the warranty valid.

The led strip light works well with 24V systems such as solar power, boats and cars. Then a separate power supply is not needed, but a control unit is of course required.

Dimming

To dim the Led strip light you can use the wireless dimmer of our VaLO RF-series. The strips can also be controlled by DALI systems. Wireless dimming is perfect for applications where there is no wall switch for the luminaire, but the luminaire is powered by a constant current.

In the case of a smart home, a Zigbee transformer and controllers for wireless control are chosen. In Zigbee transformers, the receiver is already built-in.

With the VaLO RF wireless solution, you simply install the receiver between the LED strip light and the power supply. You can then control the strip light with wireless switches from wherever you want. The wireless switch is powered by batteries, which are easily replaceable. You can also mount the switch on the wall if you wish, but it does not need a separate power supply.

Use of Led strip light on site

Here are a couple of ideas for using LED strip lighting.

Twin renovation, indirect light on descents

Great lighting with good design

Easy downstairs to the bedroom

Choosing a led strip light difficult? Here's an article where we discuss the differences between led strip lights

Led strip light selection guide

Create your own lighting design

Why use led strip lighting only for traditional applications when you can make a light fixture out of almost anything? Create your own wall light by bending the LED strip light and an aluminium profile into the shape you want, or by attaching the LED strip light to another material that conducts heat well. Turn a mirror, table frame, trunk, table or chair into a lamp with the LED strip light. A good design is half the job. We are happy to help you with your design, and we make custom-made led strip lights in the LedStore LedShop.

Led strip light colours and light colour temperatures

The Led strip light is RGB (red, green and blue) in all its shades + CCT (2500 - 6000K) CCT is with two wires 2500K and 6000K, by combining them you get 4500K (in RGBW transformers)

Led strip light with dots or without dots?

SOLO led strip light differs from the traditional led strip light because of the super thin led structure. The advantage is no dots and a shorter cut-off interval, the disadvantage is a slightly lower light output per watt and less space for soldering. All led strip lights can be found here
