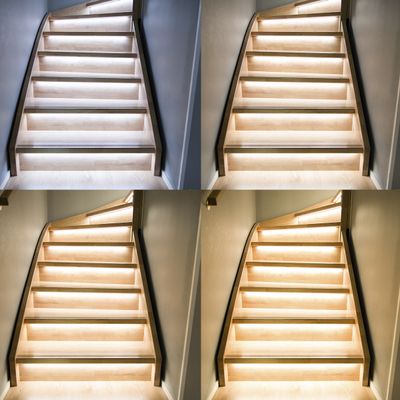

The colour temperature of the light in the Mood strip can be adjusted between 2500K and 6500K. The adhesive surface of the tape is pre-fabricated, so it adheres firmly to smooth and even surfaces such as aluminium. The colour rendering index of the tape is over 95 which means that colours are reproduced well (colours are best reproduced in 4000K white light)
This LED strip light operates on 24V voltage, and is dimmable by selecting the appropriate dimming products. The colour control can be made to work, for example, by ordering the VaLO series CCT button and receiver (CCT). For smart homes, for example, choose a Zigbee transformer and controllers.
If you want a custom-made LED strip light or a custom-made profile with your own dimensions, try our custom-made calculator!
With the calculator you can calculate the price for different needs with wireless control or ON/OFF use. For one or more levels!
https://ledstore.fi/palvelut/mittatilaus
Product information
Our mood strip is 7.2W/m (500 lumens per meter) and has 30 LED circuits per meter. When mounted on an aluminium profile, the pointing is noticeable. When indirectly illuminated through a wall, the light is uniform. The CRI of the strip light is over 95, which is excellent and suitable for use in home lighting. This strip light is also IP65, which means it is waterproof. So install this on a patio or sauna, for example, behind a backrest or under a ceiling in profile.
Installation
The Led strip light comes in a 1m roll and can be cut to size up to 16,6cm apart. The strip has clear markings to make cutting easier. We recommend soldering the light strips together, as we have found that the quick-release fasteners loosen over time and loosening causes the lights to flash. our led strip light is easy to attach with the 3M very strong adhesive tape that comes with it.
We recommend that you do not feed a 24V strip light more than 10m with one transformer, to avoid light degradation at the other end of the strip light. So if you need more than 10m of light strip, we recommend to feed the light strip from the middle of the transformer. the LED strip should always be attached to an aluminium strip, so that excess heat is conducted away from the LED circuit. This will prolong the life of the led strip light. Aluminium profiles can be ordered from our online shop, where you can find several different types.
the 10m CCT led strip light is connected to a control unit, and the control unit is connected to a power supply which is connected to the mains. For smart homes, a Zigbee transformer and controllers are selected.
The Led light strip works well with solar power, boats and cars if they use 24VDC. Then a separate power supply is not needed. In other cases, order a 24V power supply of suitable power for the strip light. The power supply does not need to be dimmable, as dimming takes place between the strip light and the control unit, after the transformer.
We will be happy to help you with any questions regarding installation and ordering.
Dimming
To dim the Led strip light, you can use the wireless dimmer of our VaLO RF-series. The strips can also be controlled by DALI systems. Wireless dimming is perfect for applications where there is no wall switch for the luminaire, but the luminaire is powered by a constant current.
In the case of a smart home, a Zigbee transformer and controllers for wireless control are chosen. In Zigbee transformers, the receiver is already built-in.
With the VaLO RF wireless solution, you simply install the receiver between the LED strip light and the power supply. You can then control the strip light with wireless switches from wherever you want. The wireless switch is powered by batteries, which are easily replaceable. You can also mount the switch on the wall if you wish, but it does not need a separate power supply.
Create your own light
Why use an LED strip light only for traditional applications when you can make a light from almost anything? Create your own wall light by bending the LED strip light and an aluminium profile into the shape you want, or by attaching the LED strip light to any other heat-conducting material. Turn a mirror, table frame, trunk, table or chair into a lamp with the LED strip light. A good design is half the job. We are happy to help you with your design, and we make custom-made led strip lights in the LedStore's LedShop.
