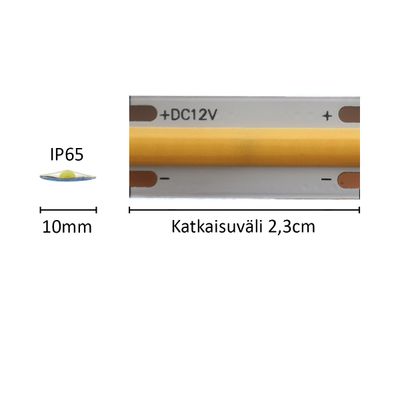

Compact 1cm LED strip SOLO, 4000K, 12V, 7,2W/m, IP65, CRI94

LED ribbon SOLO, 4000K, 12V, 7,2W/m, IP65. COB LED strip is 10mm narrow and has 260 LEDs/metre. The cutting distance is 23cm. The light output is 563 lumens/m and the actual power consumption is 6,8W/m.

Ideal for applications where 12V solar power is required or for cars and boats where 12V is required for lighting.

Make your product selections:

• Select the quantity of LED strip you want. LED strip is sold by the cent. Please note that the cutting distance of this LED strip is 2,3 cm.
• Select the wire you want to use. You can also change the amount of wire you want. The wire is sold by the metre.
• Choose whether you want the LED strip's connecting wires pre-soldered to the strip.

Installation

The strip does NOT have a connecting wire, but you can order the desired amount of connecting wire for this product. If you wish, you can choose to have the splice wire pre-welded.

We recommend that for long runs (over 10m) the transformer supply is branched at both ends of the LED strip, to avoid light reduction at one end of the strip. The led strip should always be attached to an aluminium strip so that excess heat is conducted away from the led circuit. This will prolong the life of the led strip. Aluminium profiles can be ordered from our online shop, where we have a wide range of different profiles available. We also offer a range of branching plugs and connecting wires.

We are happy to help you with any installation and ordering questions.

Dimming

To dim your LED strip, you can use either a traditional rotary wired dimmer or our VaLO RF series wireless dimmer. When using the rotary conventional dimmer, the transformer of the LED strip must be TRIAC dimmable. The strips can also be controlled by DALI systems. Wireless dimming is perfect for applications where there is no wall switch for the luminaire, but the luminaire is powered by a constant current.

In the case of a smart home, a Zigbee transformer and controllers for wireless control are chosen. In Zigbee transformers, the receiver is already built-in.

With the VaLO RF wireless solution, you simply install the receiver between the LED strip and the power supply. You can then control the strip with wireless switches from wherever you want. The wireless switch is powered by batteries, which are easily replaceable. You can also mount the switch on the wall if you wish, but it does not need a separate power supply.
