18W TRIAC dimmable DRIVER, 350-650mA adjustable, CCT 2300K-6500K loading loading loading loading loading loading

18W TRIAC dimmable DRIVER, 350-650mA adjustable, CCT 2300K-6500K

In stock at
SKU#: Driver-TRIAC-18W-mA-CCT-dip-spare

TRIAC dimmable mA transformer for CCT lights. Adjustable current from 350-650mA (constant current) for CCT LED lights. The transformer has a dip-switch for current selection. In addition, the transformer allows the selection of the light colour temperature with a 5-position switch from 2300K to 6500K.

Current values with dip switch: 350mA 9-24V, 450mA 9-24V, 550mA 9-24V, 650mA 9-24V.

  • 350-650mA
  • 5-position switch
  • Colour temperatures 2300 - 3000 - 4000 - 5000- 6500K
from € 35.00
Delivery methods
Free shipping for orders over to %s
Payment Methods
Pay safely with Credit/Debit Cards, Paypal and others.
Easy returns
Right of return for 14 days

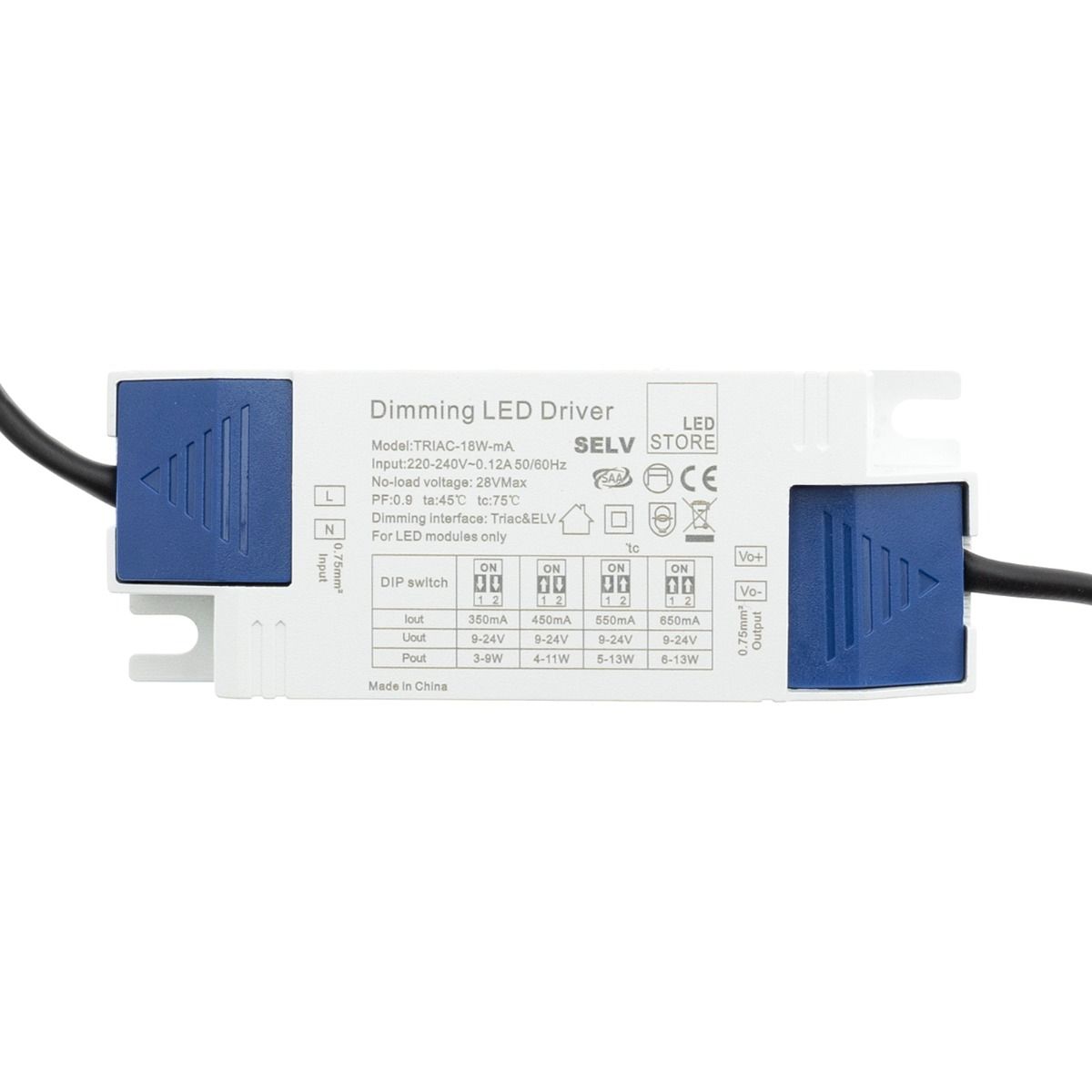

  • TRIAC dimmable mA transformer for CCT lights

    Adjustable current from 350-650mA (constant current) for CCT LED lights. Suitable for most LED lights due to its adjustability. The transformer has a dip-switch for current selection. In addition, the transformer allows the selection of the light colour temperature with a 5-position switch from 2300K to 6500K.

    Current values by means of a dipswitch:

    • 350mA / 9-24V / 3-9W,
    • 450mA / 9-24V / 4-18W,
    • 550mA / 9-24V / 5-18W,
    • 650mA / 9-24V / 6-18W.

    NOTE! The values printed on the transformer are not correct. The above are tested and factory confirmed values.

    This transformer is mA for CCT lights. Light color temperatures with switch:

    • 2300K,
    • 3000K,
    • 4000K,
    • 5000K,
    • 6500K.

    SELV, CE, SAA

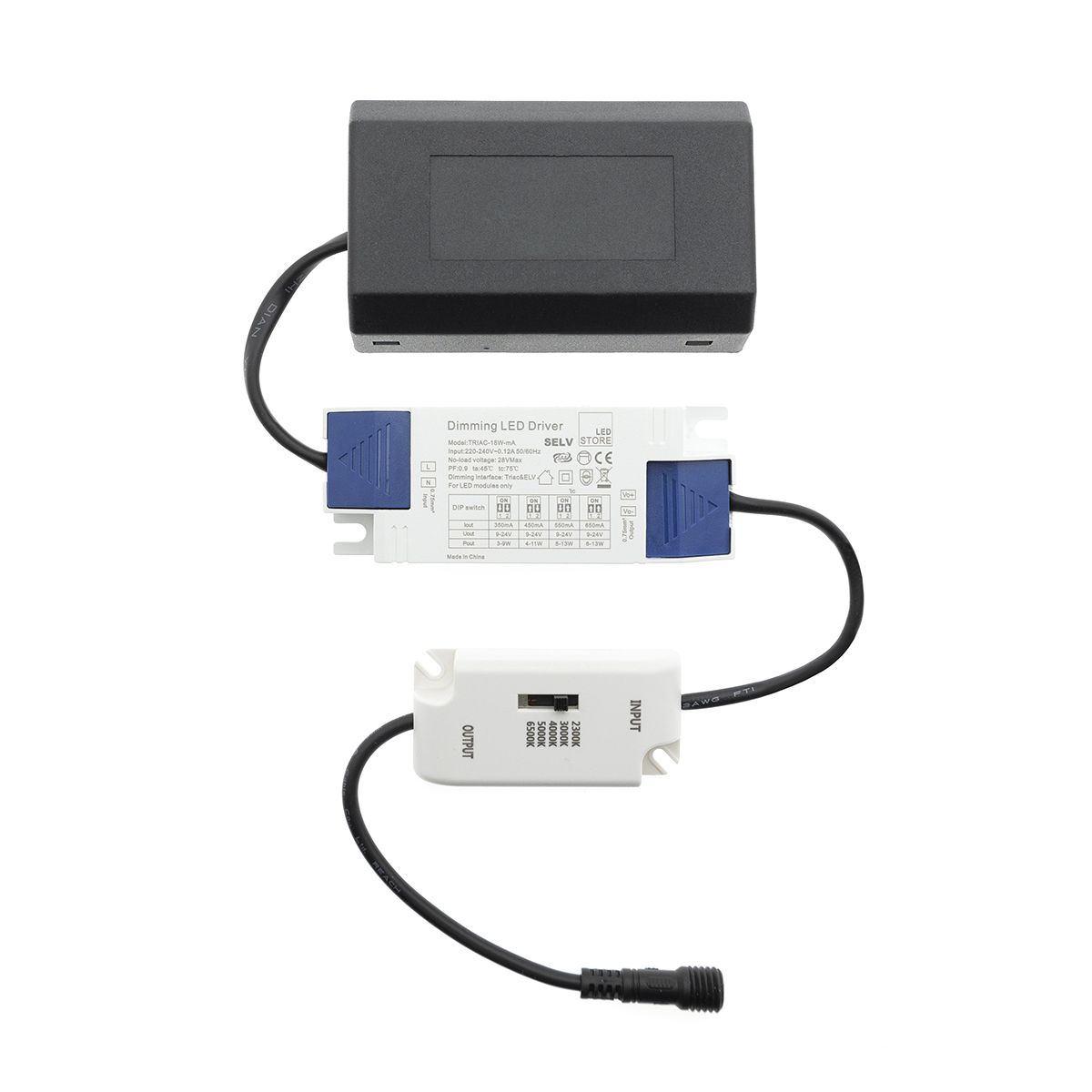

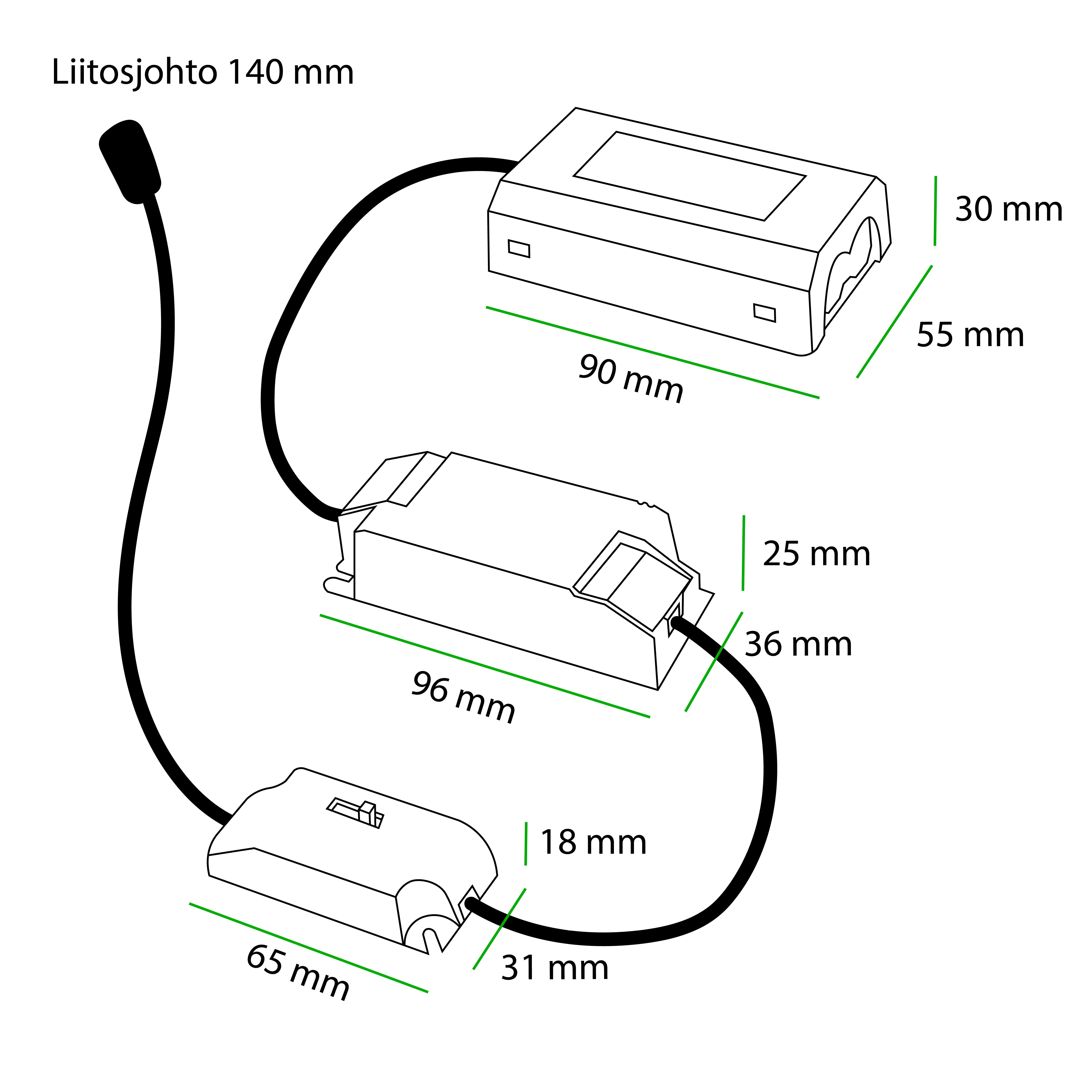

    Dimensions

    Transformer:

    Length: 96mm
    Width: 37mm
    Height: 25mm

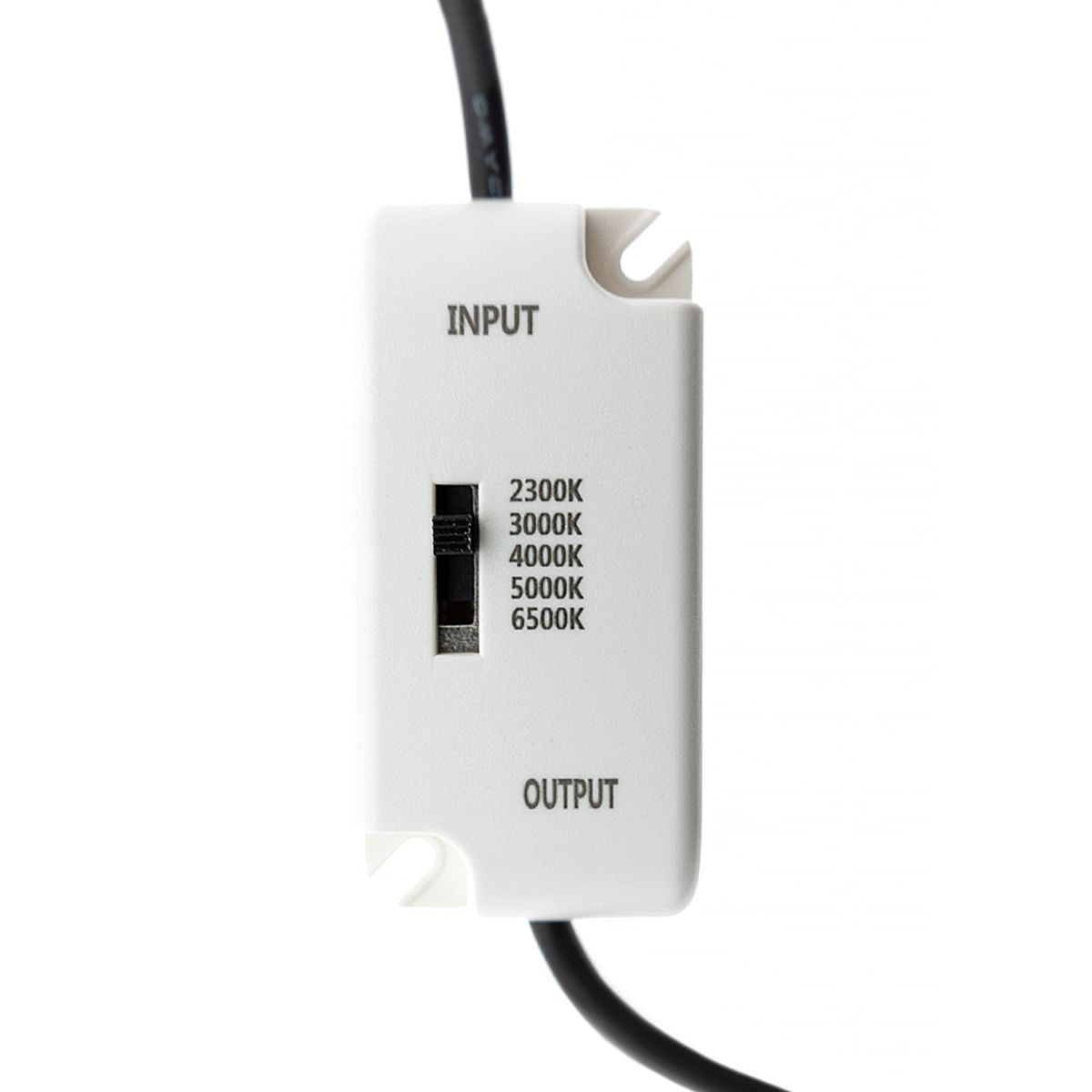

    CCT dip switch:

    Length: 65mm
    Width: 31mm
    Height: 18mm

    Junction box:

    Length: 92mm
    Width: 55mm
    Height: 30mm

TRIAC dimmable mA transformer for CCT lights

Adjustable current from 350-650mA (constant current) for CCT LED lights. Suitable for most LED lights due to its adjustability. The transformer has a dip-switch for current selection. In addition, the transformer allows the selection of the light colour temperature with a 5-position switch from 2300K to 6500K.

Current values by means of a dipswitch:

  • 350mA / 9-24V / 3-9W,
  • 450mA / 9-24V / 4-18W,
  • 550mA / 9-24V / 5-18W,
  • 650mA / 9-24V / 6-18W.

NOTE! The values printed on the transformer are not correct. The above are tested and factory confirmed values.

This transformer is mA for CCT lights. Light color temperatures with switch:

  • 2300K,
  • 3000K,
  • 4000K,
  • 5000K,
  • 6500K.

SELV, CE, SAA

Dimensions

Transformer:

Length: 96mm
Width: 37mm
Height: 25mm

CCT dip switch:

Length: 65mm
Width: 31mm
Height: 18mm

Junction box:

Length: 92mm
Width: 55mm
Height: 30mm

  • Delivery status In stock at
  • Brand Ledstore
  • Breadcrumbs Home LED accessoriesSpare partsSpare drivers 18W TRIAC dimmable DRIVER, 350-650mA adjustable, CCT 2300K-6500K
  • Category Spare drivers
  • SKU Driver-TRIAC-18W-mA-CCT-dip-spare
  • Direction Yhteen suuntaan
  • IP class IP21
  • Guarantee (year) 5 years
