MIX - assembling luminaire

The Mix series has many frame options! By combining the different options, you get 21 different designs!

Choose from many options

With LedStore's MIX series, you can assemble an LED luminaire to suit your needs by choosing the frame and interior of the module you want. Frames are available in white or black, recessed or plaster, round or square. The inserts are available in white, black or silver.

Features

The MIX series LED module has a luminous intensity of 800 lumens (11W), dimmable, directional and colour temperature adjustable via the included switch. The colour temperature of the light can be selected from 5 different settings: 2700K, 3000K, 4000K, 5000K and 6000K. When connected to a CCT group transformer, stepless colour temperature control is obtained.

The light has an opening angle of 40 degrees and a directivity of 0-30 degrees. The luminaire has a colour rendering index of CRI 93.

Installation

The minimum depth for recessed installation of the MIX is 80 mm. The size of the mounting hole depends on the frame selected:

  • With a round frame 74 mm
  • With square frame 75 mm
  • With round plastered frame 72 mm
  • With square plastered frame 72 mm
Read more
View all top picks of the season LED downlights
15 product

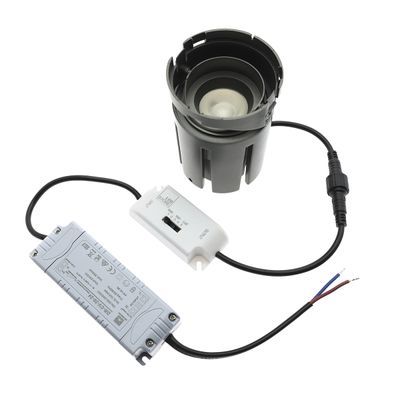

MIX series 24V led downlight module - dimmable, adjustable, 11W, CRI94, CCT, IP21
In stock at
MIX series 24V led downlight module - dimmable, adjustable, 11W, CRI94, CCT, IP21
mix-module-24v-11w-cct
  • 800 lumens, TRIAC dimmable, CRI94
  • IP21
  • Light direction 0-30 degrees
  • MIX series led module
  • The module has a switch selectable light colour temperature: 2700K/3000K/4000K/5000K/6000K
The MIX series led module is suitable for use with other parts of the MIX series. The LED module has a light output equivalent to approximately 60W halogen (800 lumens). The module is dimmable and colour temperature adjustable with 5 different options. The light is also adjustable between 0 and 3...
from € 65.70 VAT. 25.5%
Make product selections
MIX series hidden square frame, white
In stock at 40 pcs
MIX series hidden square frame, white
mix-hidden-square-w
  • Aluminium painted white.
  • For use with the MIX series led module and the internal part
  • Less glare with an embedded light source
  • MIX series parts available in the combinations you want
  • Mounting hole 72 mm
MIX series recessed white square lamp frame. This frame is designed to have less glare as the light source is recessed with the inner part 23 mm from the surface. The aluminium frame is finished with a matt white paint. Choose your preferred inner part from the options, or order the frame alone!...
€ 20.15 VAT. 25.5%

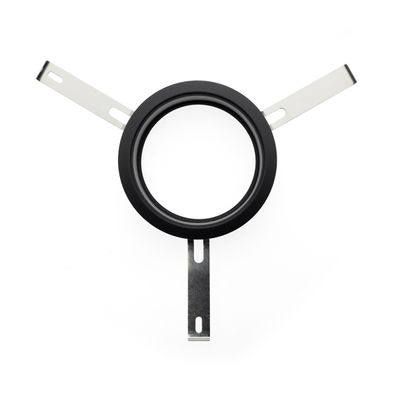

MIX series insert for round frames, black
In stock at 40 pcs
MIX series insert for round frames, black
mix-insert-round-b
  • Black
  • Black</li> </ul>
  • For use with the MIX series led module and frame
  • Less glare with an embedded light source
  • MIX series products available with the combinations of parts you want
MIX series recessed, black circular interior. This interior is designed to reduce glare as the light source is recessed with the frame 25 mm from the surface. black.
€ 5.00 VAT. 25.5%
MIX series hidden round frame, white
In stock at 42 pcs
MIX series hidden round frame, white
mix-hidden-round-w
  • Aluminium painted white.
  • For use with the MIX series led module and the internal part
  • Less glare with an embedded light source
  • MIX series parts available in the combinations you want
  • Mounting hole 72 mm
MIX series recessed white circular luminaire frame. This frame is designed to reduce glare as the light source is recessed with the inner part 23 mm from the surface. The aluminium frame is finished with a matt white paint. Choose your preferred inner part from the options, or order the frame al...
€ 20.15 VAT. 25.5%
