We want to replace the old fluorescent lighting fixtures in the kitchen ceiling. You got it! Just choose the right LED lights for the kitchen ceiling and replace them. There are many different types of lights available and here we go through a few options. Read here for instructions and steps on how to replace your kitchen lighting.
Installation of Led lights on the kitchen ceiling
When the need for a replacement arises, the project starts with a visit to the LedStore showroom to explore the options. You can also buy and install the lighting yourself in some cases, but replacing old fluorescent lighting is electrical work, so it's better to leave it to a professional.

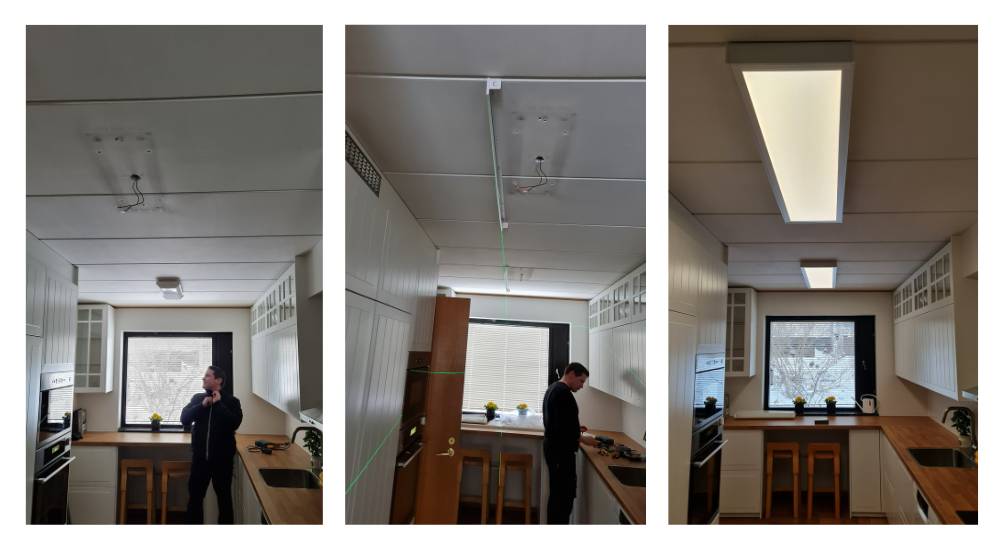

Steps for the installation of LED panel luminaires:
1. Turn off the power from the main panel.
Find the right fuse in the centre and remove power from the installation site.
Electrical safety first.
Remember that this is an electrical job.
2. Dismantling old lights
The old light fittings will be dismantled, taken down from the ceiling and the cables inspected. At this point, before disconnecting the wires, check once more with an electric pencil or a meter to make sure that the voltage is definitely off.
3. Using a laser and tape measure to measure the installation locations
Measure the light line and place the laser in the correct position. Draw the positions of the mounting frames on the ceiling.
4. Fix the long sides of the frames to the ceiling
This site had a stone roof, so props were used for fixing. The mounting frames for the surface-mounted LED panel are screwed to the ceiling from the long sides.
5. Connect the transformer of the light to the electricity supply
The transformer of the light can be connected to the electricity at this stage, because once the light is in place, there is no more space between the frame and the ceiling for fingers.
6. Slide the LED panel into the frame from the short side
The springs of the Led panel are removed by unscrewing them. The led panel is then simply slid from the end to the frame and connected to the quick connector on the driver.
7. Turn the power back on and test the light
Now that the LED panel is inside the frame and the light's power supply is connected, the power can be turned back on and the light can be tested.
Hey it works!
8. Select the desired light tone from the panel (3000/4000/5500K)
There is a switch between the light and the transformer, from which you can choose the shade of your choice. For this project, we wanted to choose a warm tone.
9. Close the ends of the panel by fixing the last frames
Once the lights have been tested and the shade of light selected, all that remains is to close the ends of the frames and clean up.

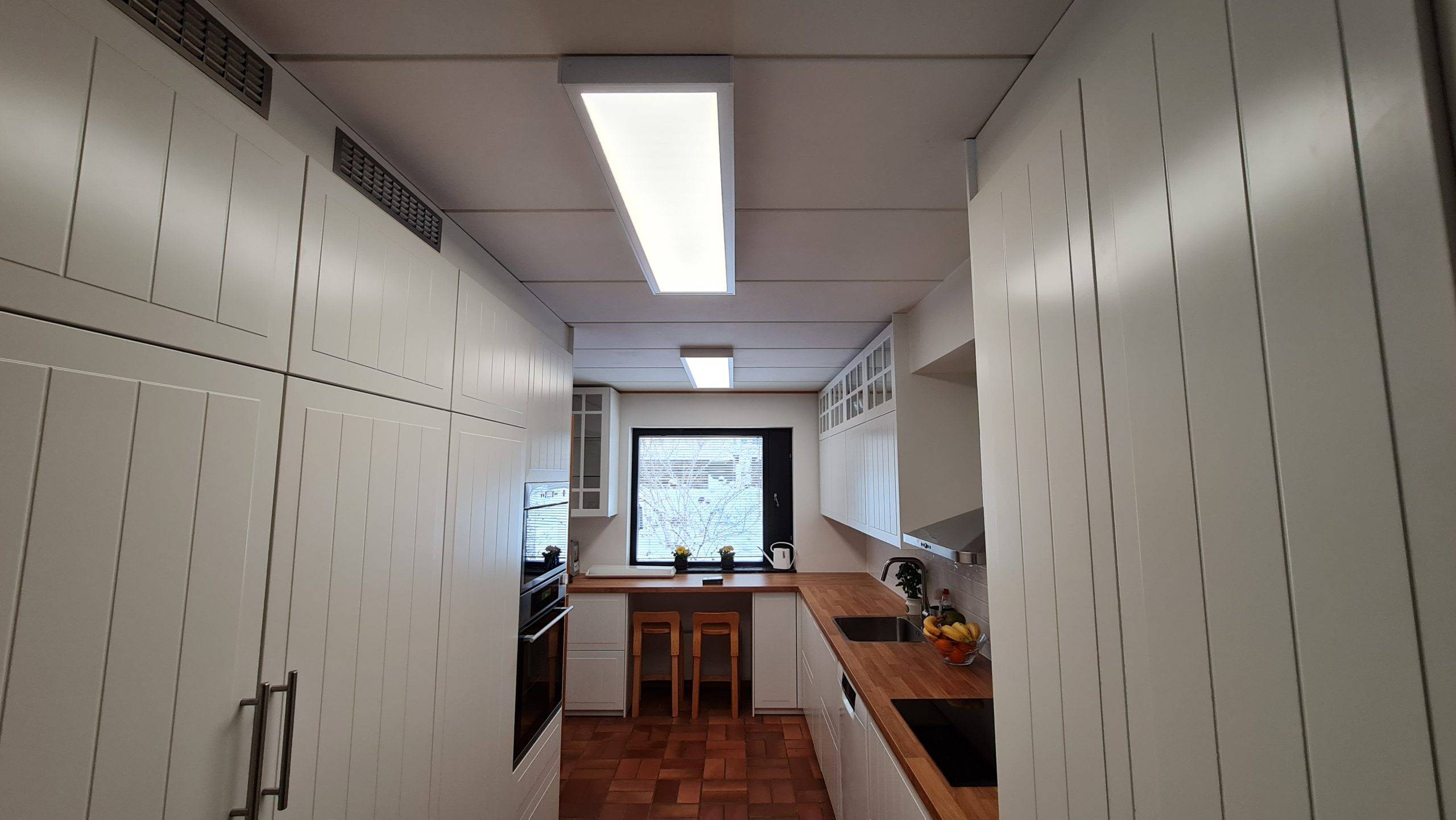

10. Admire the end result
With the messes cleaned up and the old lamps packed in the SER waste, you can admire the result. The amount of light increased significantly (compared to 2 x 2 x 120cm T8 fluorescent tubes) and the kitchen is very happy!
What does it cost to replace kitchen lighting?
The price usually consists of three components.
Installation work, lighting and electrical accessories. The cost of this item was 676,00€
Installation work
In this case, 4 hours of working time and travel were spent, at a cost of 248,00€
Led luminaires
The Led panel 300x1200, with surface mounting frames, was chosen to cover the old traces of the ceiling. The price of the panels was 179,00€ / piece and the frames 35,00€ / piece. So a total of 428,00€
Electrical supplies
No electrical equipment was needed, as the light's own transformers could be connected directly to the power lines, without the need to extend or move the wires.
As you can see, the cost is not huge. If you are interested in replacing your lights, you can find surface-mounted LED panels here . And if you need help, our installation service is here to help!

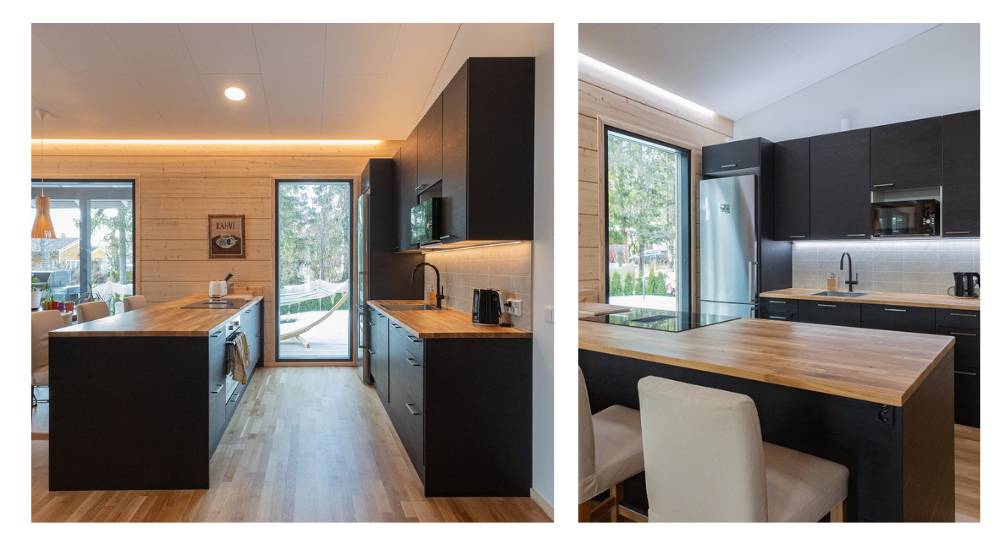

Versatility with colour temperature control
The same lights can also be installed with a wirelessly controlled driver. In this case, the light can be dimmed and the colour temperature adjusted to the desired Kelvin level using a wireless controller on the wall. For example, you can use the controller to adjust the warm dim light for evening light and a slightly more neutral and brighter light for cooking.
For this project, a 600x600 surface-mounted LED panel was used. We wanted to increase the amount of light significantly, as dark furniture in the kitchen eats up light.

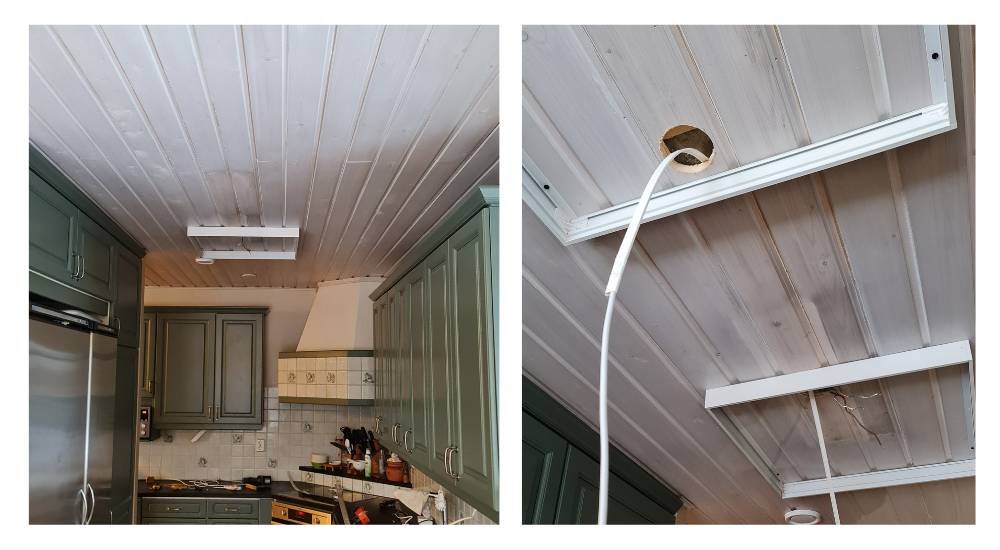

Since the ceiling was panel, holes could be drilled in the ceiling inside the frames and the wire could be discreetly run to another panel inside the ceiling.

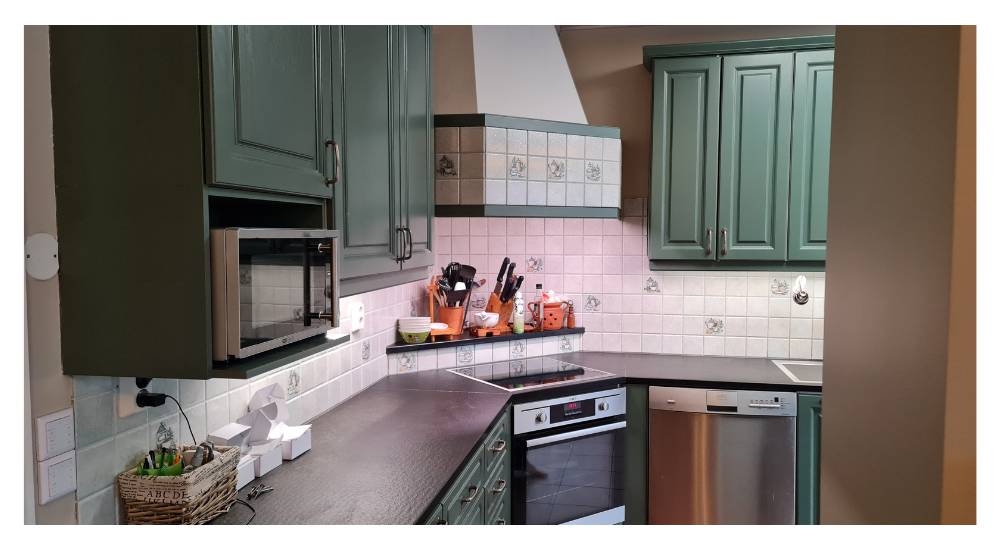

At the same time, the workplace lighting was replaced. Notethe wireless buttons in the bottom left corner, which in this site can be used to seamlessly control the temperature of the worktop, as well as the ceiling lighting.
What colour temperature of light for the kitchen?
Led lights offer a wide range of light temperatures and we often come across the same question, "Which light colour is best for the kitchen?" The kitchen is a working space and therefore we recommend using a neutral 4000K light shade in the kitchen.
Colour temperature adjustable LED lights are also a great option, creating a softer atmosphere in the kitchen if needed.
Colour rendition helps you see
Whether the light is warm, neutral or cool, using high colour rendering index (CRI) LED lighting is the way to go. When the colour rendering index of a light is high, colours are reproduced naturally and food looks more delicious when cooking!
How much light is needed in the kitchen?
The kitchen can be divided into several parts, each with its own lighting needs. Ultimately, the materials and placement of lights will affect the final result, but in general the amount of light in different places could be as follows:
- Food preparation, worktops: 500-1000 lux
- Dining area: 100-200 lux
- General light: 200-300 lux
- Indirect light: 50-300 lux
Food preparation usually takes place on a worktop or island. This should have good, even lighting. The islands in particular are very popular and have become a universal space for homework and homeworking.
In the dining area, a lower level of light is usually sufficient, as you calm down while you eat. The exception to this, of course, is in today's telecommuting workplaces where people may be working at their desks in the kitchen and more power is required.
The general light in the ceiling is usually a steady direct light that spreads throughout the space. Such light sources are led panels.

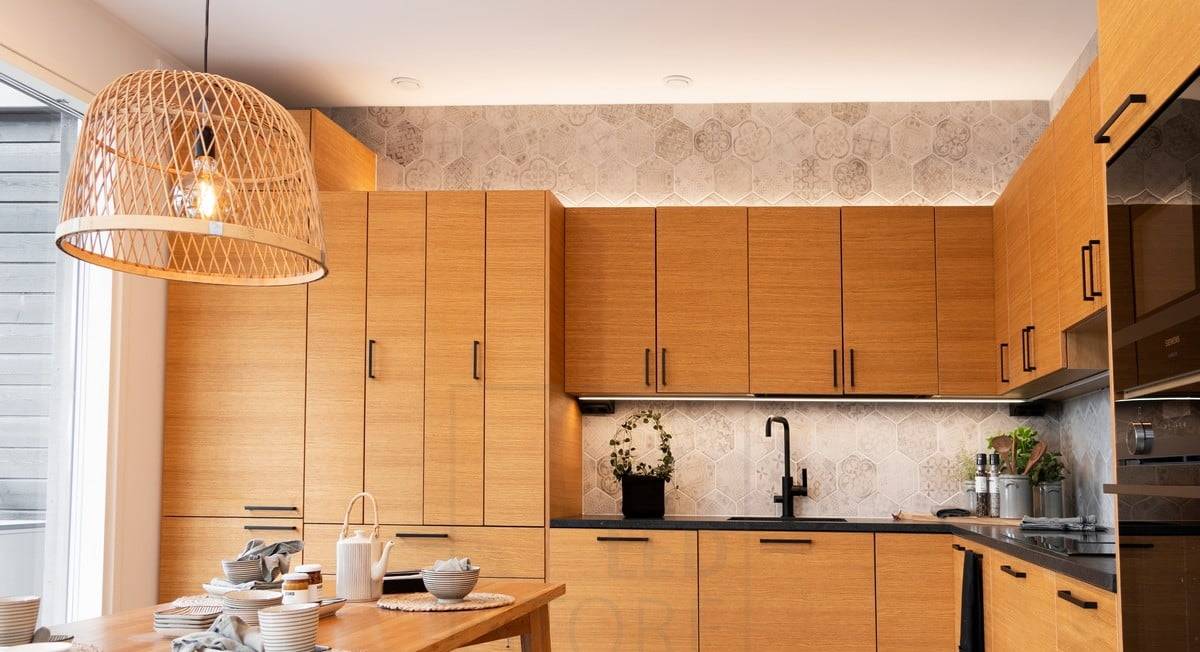

Indirect lighting is here to stay in kitchens too. LED strip lights on top of cabinets or on plinths add atmospheric light to the space. If necessary, this can be used to replace the general lighting completely by using slightly more efficient lighting on top of the cabinets.
Remember that indirect light is hardly ever sufficient for working, so reading and working lighting must be separate.
Philips HUE and various home automations
Those interested in home automation could choose Zigbee drivers for the LED panels and thus control the lighting with different systems. In addition to the Zigbee transformer, you also need a Zigbee bridge, i.e. a hub, such as Philips Hue, Led Store's Azoula or even Conbee2 and Homeassistant. Zigbee allows, among other things, timings and automations.
Lighting expert
LedStore has been an expert in LED lighting and lighting design since 2010. We have our own product design, so our products are technologically state-of-the-art. Products have quarantee for up to 7 years. We also carry out lighting maintenance.
We focus on temperature-controlled and high colour rendering lights, so they work brilliantly and last a long time. We do around 500 lighting designs for our clients' sites. Read more here or order a lighting design
We offer a service of custom-made LED strips, i.e. custom-made LED strips in aluminium profile. Also installed. Did you know? With LedStore you can get lighting design for your whole house!
Remember that we are always ready to offer our help to you along the way, by email (myynti@ledstore.fi) and by phone (045 251 4510). As always, feel free to share pictures of your own projects on social media using #ledstorefi on IG and ledstorefinland on FB. We love to see the great things our LEDs do, and it helps to provide inspiration for those who are unsure of the power and awesomeness of LEDs. Did you know that we already have over 3500 pictures of our LED installations in our Gallery!
Gallery of Led lights:
Product gallery: Pictures of PRODUCTS in different installation locations
Indirect light: Indirect light in different spaces
Room-specific: Light in different rooms
References: Complete houses that have been photographed
FAQ
1. Miksi valita LED-valot keittiön kattoon?
LED lights are energy efficient, long-lasting and provide excellent light output, making them an ideal choice for kitchen ceilings. They create a uniform and bright light that is perfect for cooking and other kitchen tasks. In addition, LED lights are a stylish and modern solution for interior design.
2. Mitkä ovat parhaita LED-valaisintyyppejä keittiön kattoon?
The best types of LED lights for the kitchen ceiling are recessed LED spotlights, LED panels and dimmable LED lights. These provide bright, even lighting and the ability to adjust the brightness of the light as required.
3. Kuinka suunnitella LED-valaistus keittiöön?
When designing LED lighting for the kitchen, it is important to consider the placement of the lights, the brightness of the light sources and the colour temperature. Combine general lighting such as ceiling lights, spot lights on worktops and indirect lighting under cabinets to create a practical and pleasant lighting solution.
4. Mitä värilämpötilaa suositellaan keittiön LED-valoihin?
Neutral light with a colour temperature of around 4000-5000K is recommended for the kitchen. This light is bright enough for cooking and other kitchen tasks, but is also pleasant to the eye and blends well with most interior styles.
5. Onko keittiön LED-valaistuksessa tärkeää käyttää himmennettäviä valaisimia?
Yes, dimmable LED lights offer flexibility in lighting control. Bright light is needed for cooking, while dimmer light creates a mood during dinner, for example. This increases the versatility and convenience of lighting.
6. Kuinka energiatehokkaita keittiön LED-valot ovat?
LED kitchen lights are highly energy efficient, consuming up to 80% less energy than traditional light bulbs. In addition, their long lifetime reduces the need for frequent replacement of lights, saving both costs and the environment.
7. Kuinka asentaa LED-valot keittiön kattoon?
Installing LED lights in your kitchen ceiling starts with the design of the installation site. Make sure there is enough space for the lights and consider the location of electrical outlets. The lights are fixed to the ceiling and connected to the mains supply in accordance with the instructions for use. It is recommended to use a professional installer to ensure safety.
8. Mitä hyötyä on epäsuorasta LED-valaistuksesta keittiössä?
Indirect LED lighting, such as LED strip mounted under or on top of cabinets, creates soft, glare-free lighting. It accentuates the shapes of the kitchen, adds to the cosiness of the space and is the perfect complement to general lighting.
9. Voiko LED-valot yhdistää älyvalaistusjärjestelmään keittiössä?
Yes, LED lights can be connected to smart lighting systems such as Zigbee or Wi-Fi based systems. This allows the lighting to be controlled remotely using a smartphone or voice assistant, increasing convenience and enabling lighting automation.
10. Kuinka hoitaa keittiön LED-valaistusta?
Kitchen LED lights should be cleaned regularly to remove dust and dirt to maintain their light output. Also check the wiring of the lights to ensure that they are working properly. If necessary, replace the faulty LED lamps with similar models to the originals.
