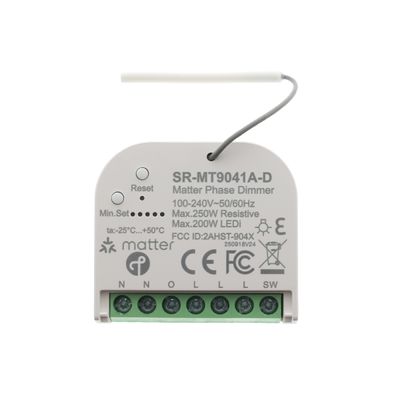

Matter AC phase cut dimmer

Matter AC Phase-Cut Dimmer

Dual-tech smart dimmer supporting Matter over Thread and Zigbee protocols. Designed for global AC operation and compatible with most common lighting loads.

Properties:

Input / Output Voltage: 100–240 VAC, 50/60 Hz (wide range)

Supported Load Types: Resistive (R), Capacitive (C), or Inductive (L) loads

Up to 250 W for resistive loads (incandescent/halogen)

Up to 200 W for dimmable LED or capacitive/inductive loads @ 230 V

Output Channels: 1 × phase-cut dimming channel

Supported Dimming Mode: Leading or trailing-edge phase-cut (auto or manual selection depending on load)

Control Functions: ON/OFF switching and smooth light intensity adjustment

Commissioning and Control:

Supports Touchlink commissioning (Zigbee mode)

Direct pairing with compatible Matter or Zigbee remotes via Touchlink (no coordinator required)

Fully compatible with standard Matter gateways (e.g. Apple Home, Google Home, SmartThings, etc.)

Installation:

Can operate with or without a neutral wire (minimum load ≥ 20 W without neutral)

Installed on the AC input side (before LED driver/transformer) for controlling phase-cut-compatible lamps or drivers

Fits into a standard 86×86 mm wall box, compact housing (approx. 42 × 38 × 17 mm)

Additional Features:

Power metering and energy monitoring

Last-state memory — light restores to previous level after power loss

Overload and over-temperature protection for enhanced safety

Recommended Use:

Ideal for dimmable LED lamps, incandescent bulbs, and magnetic or electronic transformers compatible with phase-cut dimming.
