LED downlight — LINJA 10, IP44, dimmable 10x2W, matte white/black, high CRI93, 3000K

Superior technology

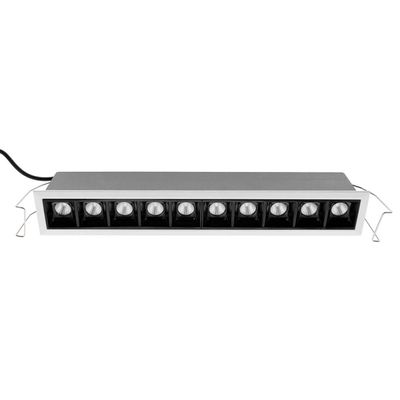

LED LINJA 10 (matte white frame, black interior) is the dimmable and moisture-proof (IP44) king of line lights, inspired by the iGuzzini Laser model. With a colour rendering index (CRI) of more than 92, the colours in your interior will look natural. The luminous intensity is equivalent to 10x20W halogen, with a consumption of only 10x2W! The luminaire is available in both 3000K (warm white) and 4000K (neutral white).

The LED LINJA 10 has a very narrow opening angle of only 15 degrees, so it is typically used in high spaces and to create decorative light, e.g. in front of wardrobes or in corridors. Line 10 is perfect for narrow-angle lighting indoors, for example as accent lighting for wall surfaces and paintings, in corridors and for those looking for narrow-angle general lighting. Outdoors, it can be used for a terrace roof and eaves, for example.

The white edge of the frame is 7mm wide and the light sources are 10mm deep in square black light holes.

LED LINJA 10 is a recessed luminaire in cast aluminium, with the LED circuit mounted directly on the frame. The solution achieves maximum thermal conductivity and safe operating temperature (below 50 degrees Celsius). The low operating temperature ensures a long life of 50,000 hours and we grant a 5-year warranty on the luminaire we manufacture! The luminaire is also available in LINJA 5x2W and LINJA 2x2W models.

<img src="{{media url="wysiwyg/Linja_Spotit.png"}}" alt="Linja Spotit" width="248" height="247" />

See here for installation examples and ideas

Led luminaire installation

The luminaire is very low, only 50mm high! The luminaire will therefore fit into a typical roof structure with only 48x48mm of insulation and 13mm plasterboard under the vapour barrier. We recommend installing a board or piece of plasterboard above the luminaire to prevent the insulation from sagging. The mounting hole is 34x265mm. The ends of the luminaire have mounting springs.

Each luminaire is supplied with its own power supply, which fits through the mounting hole into the mounting space. By moving the power supply away from the luminaire, we prevent the power supply from heating up the luminaire, and we are able to keep the size of the luminaire small. The power supplies are long-lived and this also allows us to avoid the typical problem with halogen lamps, where one power supply is subjected to a heavy load and gets hot, and breaks the luminaire. There is a quick connector between the luminaire and the power supply for easy installation and replacement.

Dimming

The luminaire can be dimmed with wireless dimmers or TRIAC dimmers, ENSIO side and they also work with home automation systems such as KNX, Talomatti, etc. You can also order suitable dimmers from us, "Led dimmers"

They work very well for example:

• ABB (former Ensto) Jussi 6523U
• Schneider (ex strömfors) transistor controller 315W/VA EXXACT

All our lamps are CE and RoHS approved.
