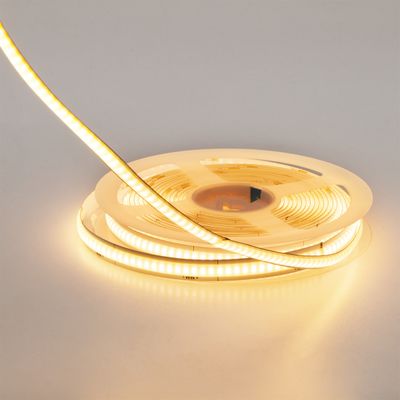

1m LED light strip SOLO TUNNELMA, CCT, 14,4W/m, IP20, CRI93

In Stock
SKU#: STRIP144-24V-IP20-CCT-COB-1m

The Solo 14,4W/m light strip can be adjusted between 2500K and 7300K. The light strip has a colour rendering index of 93 which means that colours are reproduced well (colours are best reproduced with 4000K white light, as there is no yellowish or bluish tint involved). The Solo 7.2W/m ribbon is very uniform and efficient (1584 lumens per metre) and has 608 LED circuits per metre. This LED strip light is dimmable and colour control is available by ordering a VaLO RF or Zigbee series (CCT) button and receiver (CCT).

If you want a custom made LED strip light or a custom made profile with your own dimensions try our custom made calculator!
With the calculator you can calculate the price for different needs with wireless control or ON/OFF use. For one or more levels!
https://ledstore.fi/palvelut/sahkoasennus

  • 592 lumens/m
  • 5m roll, CCT 2500K-7300K, 24V
  • Connecting wires at both ends
  • Good colour rendering CRI 93
  • Super-dense 280 LEDs/m
Request price
Delivery methods
Free shipping for orders over to %s
Payment Methods
Pay safely with Credit/Debit Cards, Paypal and others.
Easy returns
Right of return for 14 days

  • The Solo 14,4W/m light strip can be adjusted between 2500K and 7300K. The colour rendering index of the ribbon is 93 which means that the colours are well reproduced (the best colours are reproduced with 4000K white light, as there is no yellowish or bluish tint involved). This LED ribbon is dimmable and the colour control can be operated by ordering a VaLO RF or Zigbee series (CCT) button and receiver (CCT).

    If you want a custom made LED strip light or a custom made profile with your own dimensions try our custom made calculator!
    With the calculator you can calculate the price for different needs with wireless control or ON/OFF use. For one or more levels!
    https://ledstore.fi/palvelut/mittatilaus

    Product information

    The Solo 14,4W/m light strip is very uniform and efficient (1584 lumens per meter) and has 840 LED circuits per meter. This makes the light uniform.

    Installation

    The LED strip light comes in 1m rolls and can be cut to size every 50mm. The strip has clear markings to make cutting easier. We recommend soldering the strips together. Our led strip light is easy to attach with the 3M very strong adhesive tape included. The soldering points of the strip are located at the cutting marks on the underside of the strip under the tape. There are three soldering points, one + on one side of the strip and two minus on the other side, cold C and warm W.

    We recommend that for long runs (over 10m) the transformer supply is branched at both ends of the LED strip light to avoid light degradation at one end of the strip light. the led strip should always be attached to an aluminium strip so that excess heat is conducted away from the led circuit. This will prolong the life of the led strip light. Aluminium profiles can be ordered from our online shop, where we have a wide range of different profiles available.

    the 10m CCT led strip light is connected to a CCT adjustable transformer (RF or Zigbee) or in larger installations to a separate control unit, and the control unit is connected to a power supply which is connected to the mains.

    Led strip lighting works well with solar power, boats and cars if they use 24VDC. Then a separate power supply is not needed. In other cases, order a 24V power supply of suitable power for the strip light. The power supply does not need to be dimmable when dimming with a regulator and receiver. Alternatively, a wireless control RF or Zigbee transformer is available, where the transformer is paired directly with the wireless pushbutton.

    We are happy to help with installation and ordering questions.

    To dim your Led strip light, you can use the wireless dimmer in our VaLO RF series. The strips can also be controlled by DALI systems. Wireless dimming is perfect for applications where there is no wall switch for the luminaire, but the luminaire is powered by a constant current.

    In the case of a smart home, a Zigbee transformer and controllers for wireless control are chosen. In Zigbee transformers, the receiver is already built-in.

    With the VaLO RF wireless solution, you simply install the receiver between the LED strip light and the power supply. You can then control the strip light with wireless switches from wherever you want. The wireless switch is powered by batteries, which are easily replaceable. You can also mount the switch on the wall if you wish, but it does not need a separate power supply.

    Create your own light

    Why use a CCT LED strip light only for traditional applications when you can make a light from almost anything? Create your own wall light by bending the LED strip light and the aluminium profile to the shape you want, or by attaching the LED strip light to any other heat conducting material. Turn a mirror, table frame, trunk, table or chair into a lamp with the LED strip light. A good design is half the job. We are happy to help you with your design, and we make custom-made led strip lights in the LedStore's LedShop.

The Solo 14,4W/m light strip can be adjusted between 2500K and 7300K. The colour rendering index of the ribbon is 93 which means that the colours are well reproduced (the best colours are reproduced with 4000K white light, as there is no yellowish or bluish tint involved). This LED ribbon is dimmable and the colour control can be operated by ordering a VaLO RF or Zigbee series (CCT) button and receiver (CCT).

If you want a custom made LED strip light or a custom made profile with your own dimensions try our custom made calculator!
With the calculator you can calculate the price for different needs with wireless control or ON/OFF use. For one or more levels!
https://ledstore.fi/palvelut/mittatilaus

Product information

The Solo 14,4W/m light strip is very uniform and efficient (1584 lumens per meter) and has 840 LED circuits per meter. This makes the light uniform.

Installation

The LED strip light comes in 1m rolls and can be cut to size every 50mm. The strip has clear markings to make cutting easier. We recommend soldering the strips together. Our led strip light is easy to attach with the 3M very strong adhesive tape included. The soldering points of the strip are located at the cutting marks on the underside of the strip under the tape. There are three soldering points, one + on one side of the strip and two minus on the other side, cold C and warm W.

We recommend that for long runs (over 10m) the transformer supply is branched at both ends of the LED strip light to avoid light degradation at one end of the strip light. the led strip should always be attached to an aluminium strip so that excess heat is conducted away from the led circuit. This will prolong the life of the led strip light. Aluminium profiles can be ordered from our online shop, where we have a wide range of different profiles available.

the 10m CCT led strip light is connected to a CCT adjustable transformer (RF or Zigbee) or in larger installations to a separate control unit, and the control unit is connected to a power supply which is connected to the mains.

Led strip lighting works well with solar power, boats and cars if they use 24VDC. Then a separate power supply is not needed. In other cases, order a 24V power supply of suitable power for the strip light. The power supply does not need to be dimmable when dimming with a regulator and receiver. Alternatively, a wireless control RF or Zigbee transformer is available, where the transformer is paired directly with the wireless pushbutton.

We are happy to help with installation and ordering questions.

To dim your Led strip light, you can use the wireless dimmer in our VaLO RF series. The strips can also be controlled by DALI systems. Wireless dimming is perfect for applications where there is no wall switch for the luminaire, but the luminaire is powered by a constant current.

In the case of a smart home, a Zigbee transformer and controllers for wireless control are chosen. In Zigbee transformers, the receiver is already built-in.

With the VaLO RF wireless solution, you simply install the receiver between the LED strip light and the power supply. You can then control the strip light with wireless switches from wherever you want. The wireless switch is powered by batteries, which are easily replaceable. You can also mount the switch on the wall if you wish, but it does not need a separate power supply.

Create your own light

Why use a CCT LED strip light only for traditional applications when you can make a light from almost anything? Create your own wall light by bending the LED strip light and the aluminium profile to the shape you want, or by attaching the LED strip light to any other heat conducting material. Turn a mirror, table frame, trunk, table or chair into a lamp with the LED strip light. A good design is half the job. We are happy to help you with your design, and we make custom-made led strip lights in the LedStore's LedShop.

  • Delivery status In stock at
  • Brand Ledstore
  • Breadcrumbs Home LED light stripsLED strip by the meter1m led strip 1m LED light strip SOLO TUNNELMA, CCT, 14,4W/m, IP20, CRI93
  • Category 1m led strip
  • SKU STRIP144-24V-IP20-CCT-COB-1m
  • Lumen 592
  • Led strip width (mm) 12
  • Led strip cutmark (mm) 50
  • Led chip Qty / m 280
  • Efficiency (lumen/W) 77
  • Lux at 1m 155
  • Warm LED power draw (W) 7
  • Cool LED power draw (W) 7
  • Led input current (mA) 320
  • Led strip tech COB
  • Power per meter (W) 14.4
  • Total power for 5m roll of Led strip (W) 72
  • R9 (RED) value 61-70
  • Change 3M car tape on the back
  • Size 1000 x 12 x 2
  • Wattage 14
  • Colour temperature (K) CCT Adjustable, 2500, 7300
  • Light control 176
  • Colour rendering (CRI ±3) 93
  • IP class IP20
  • Angle of light opening 160
  • Immennys 215
  • Adjustability Adjustable
  • Led Votlage (V) 24
  • Guarantee (year) 3 years
  • Life span 35 000
  • Approval CE, RoHS
  • Designed in Finland No
New product review

Be the first to write a review!

By rating you will be entered into a prize draw for a €50 gift voucher.

Customer questions


RF CCT LED drivers

RF CCT Products that you can use when you want stepless CCT control. Led light is ordered without its own led driver. Then a group led driver (one to control all) is selected for CCT spotlights or CCT panels, as well as for CCT led strip lighting.

The transformer/led driver size for spots and panels is calculated by adding up the Watts + 25%.

For the CCT led strip, a 15% margin is sufficient.

Some of our RF Led drivers

CCT wire harnesses

With our wiring harnesses you can quickly and reliably install CCT spots and CCT panels directly on one transformer. All luminaires are installed in parallel on the same transformer.

The spots come standard with a 15cm connecting cable with a connector, so you can easily create your own set with these wires.

with 3m spacer cables you can put even 2 in a row. All connection points have IP54 tight draught proofing.

In the distribution boxes (3 and 6) it is not mandatory to install a lamp on each connector.

WHAT IS CRI, THE COLOUR RENDERING INDEX

High quality LED lights also have a high colour rendering index, or CRI. A good colour rendering index (CRI) for home use is above 90, and nowadays many market lights are unfortunately closer to 80.

CRI tells you how well an LED light displays colours as they should be. For designers and architects, as well as interior designers, it should be one of the most important considerations. Make sure the lighting is perfect so that your artwork is what it is meant to be.


Colour rendering index

The colour rendering index is expressed as a number on a scale from zero to 100, where 0 = no colour rendering and 100 = full colour rendering. The colour rendering index of LED lights is also known as Ra, which is measured on a smaller scale than CRI. This Ra value does not include red tones or skin tones, for example, so it is a 'glossed' figure for the true quality of an LED light.

RA value

The Ra value measures the reproduction of colours using eight different reference colours. CRI takes into account the wider (15) wavelength range, including reds and other warm colours.



The Ra value is calculated by cutting the wavelength range, weighting the blue and violet tones, and calculating the weighted average of R numbers 1-8.

Excluded from the Ra value are, for example, the colour rendering of bright reds, yellows and greens, and shades close to skin tone. These are described by R-values between 9 and 15. The following is a picture of a measurement result that easily confuses the consumer.


This measurement is from a 9W CCT Led spot

Read more on this topic:

Colour rendering of LEDs - What is the difference between CRI and Ra-value?
