€ 80.00 VAT. 25.5%
VaLO DALI2 DT8 Dimmable LED receiver 12-24V - for two-wire CCT LED strips, 5A
In stock at 48 pcs
SKU#: Valo-v1236-DALI-5A-2wire
0 / 5 (0)

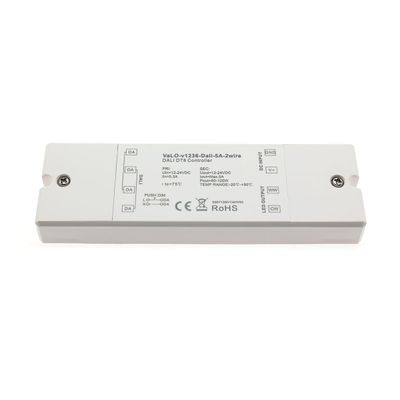

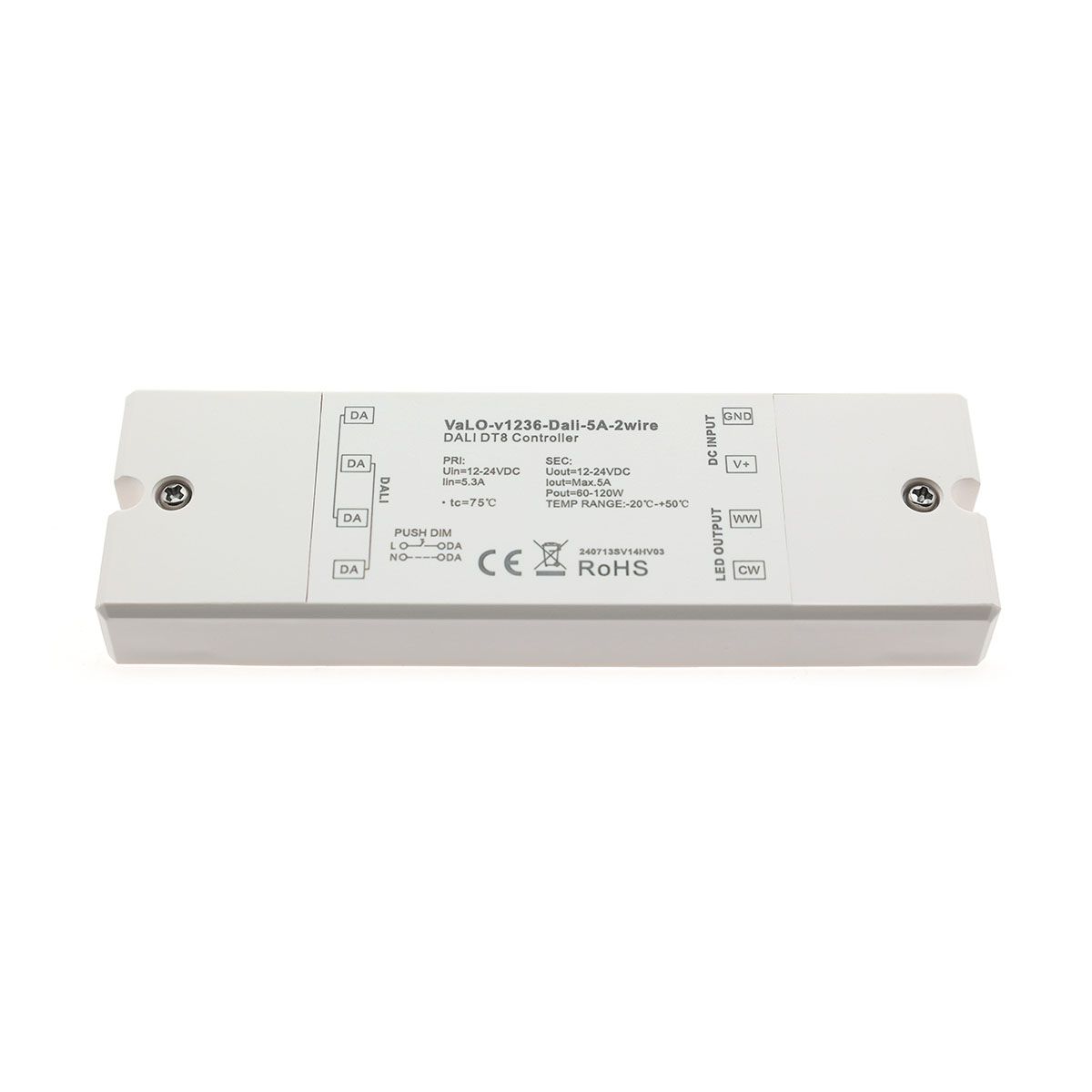

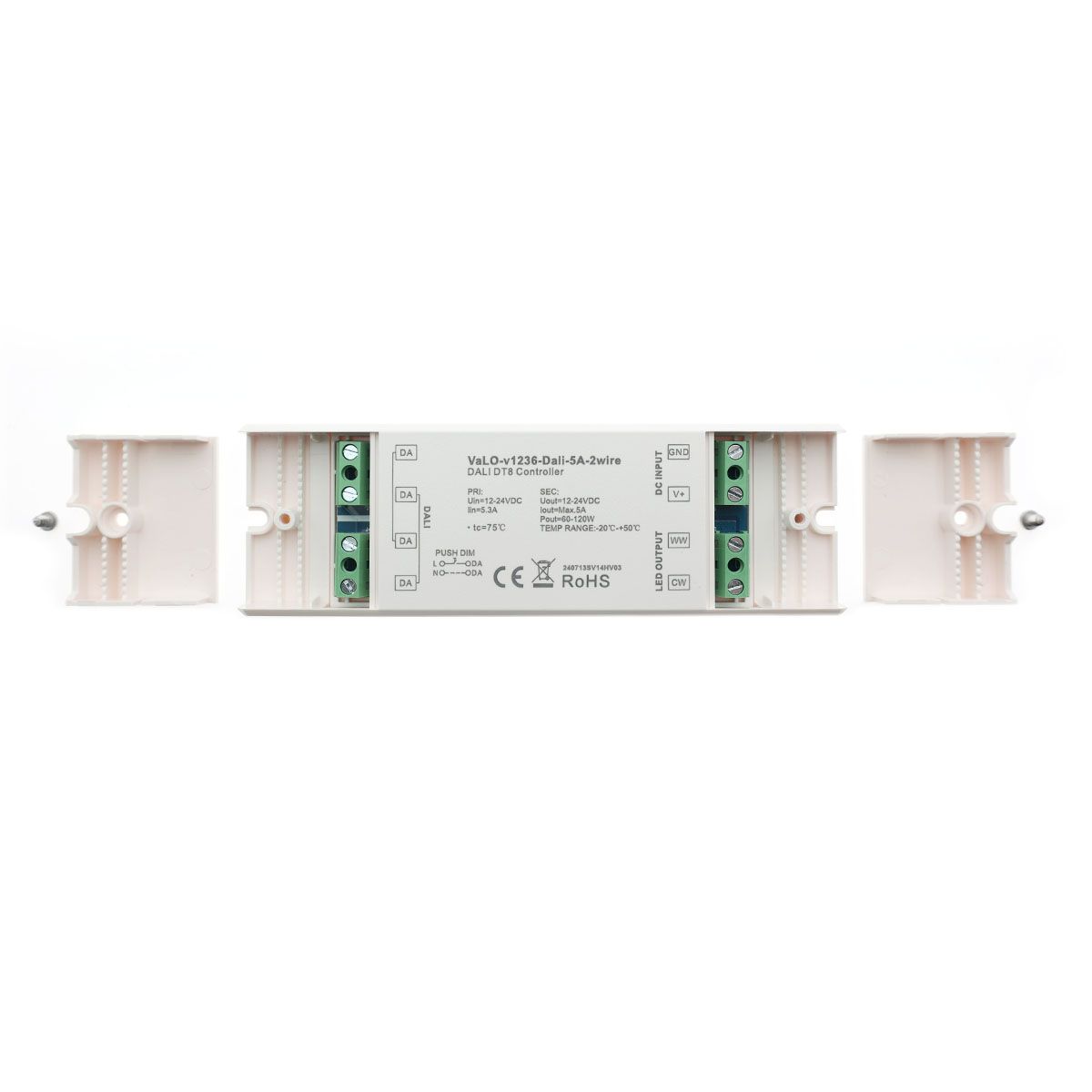

VaLO DALI2 DT8 dimmable receiver for two wire CCT LED strips
LedStore's DT8 DALI and PUSHDIM dimming receiver for 12-24V led luminaires.
Max. load 12V 60W
Max. load 24V 120W
The controller is mounted between the transformer and the luminaire and the controller passes through the voltage that is applied to it, e.g. the voltage 24V from the transformer in and 24V to the two wire CCT strip out, i.e. the control is done from the secondary side. So the transformer does not have to be dimmable!
This receiver allows the following:

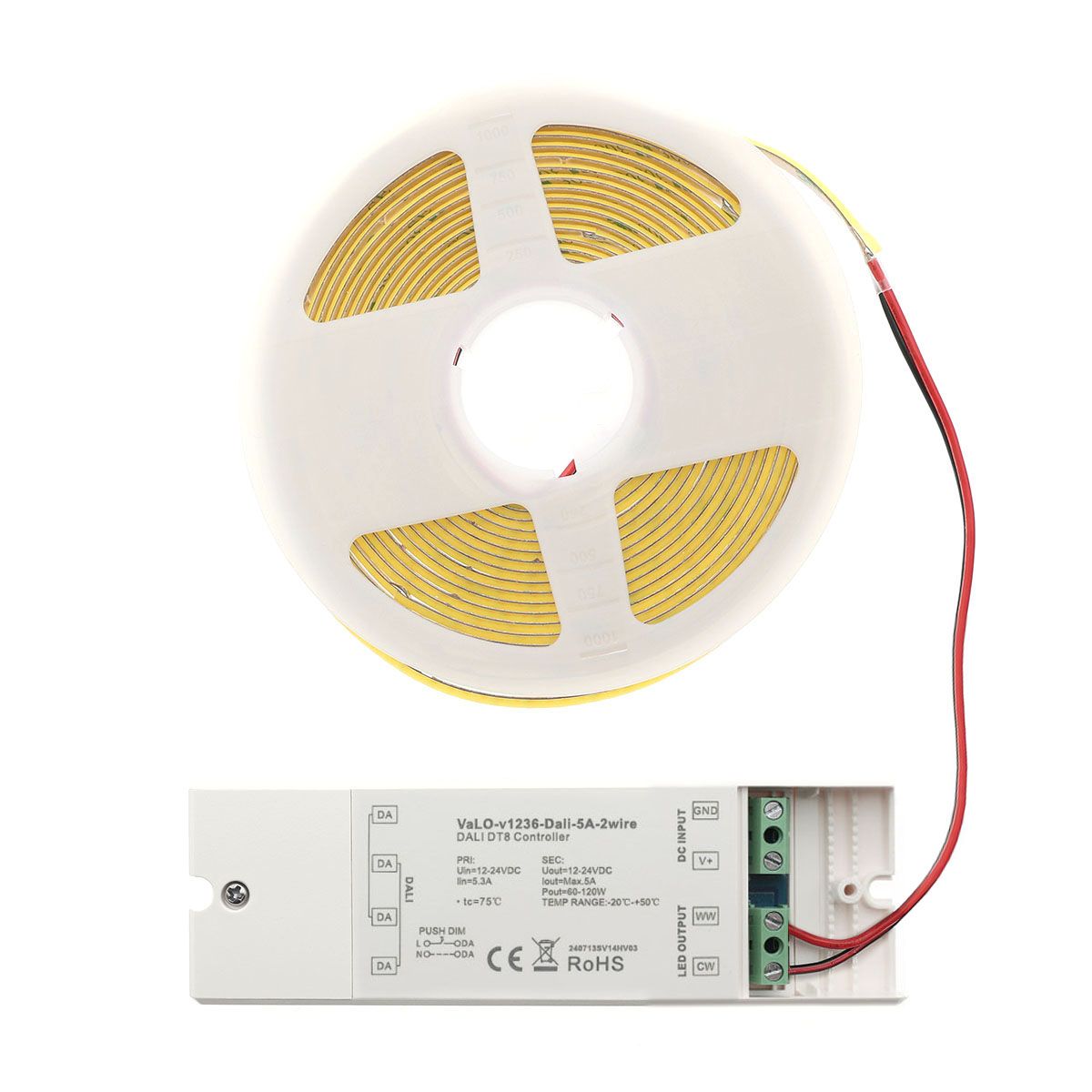

Temperature control and dimming of two wire CCT LED strips
- Between transformer and luminaire

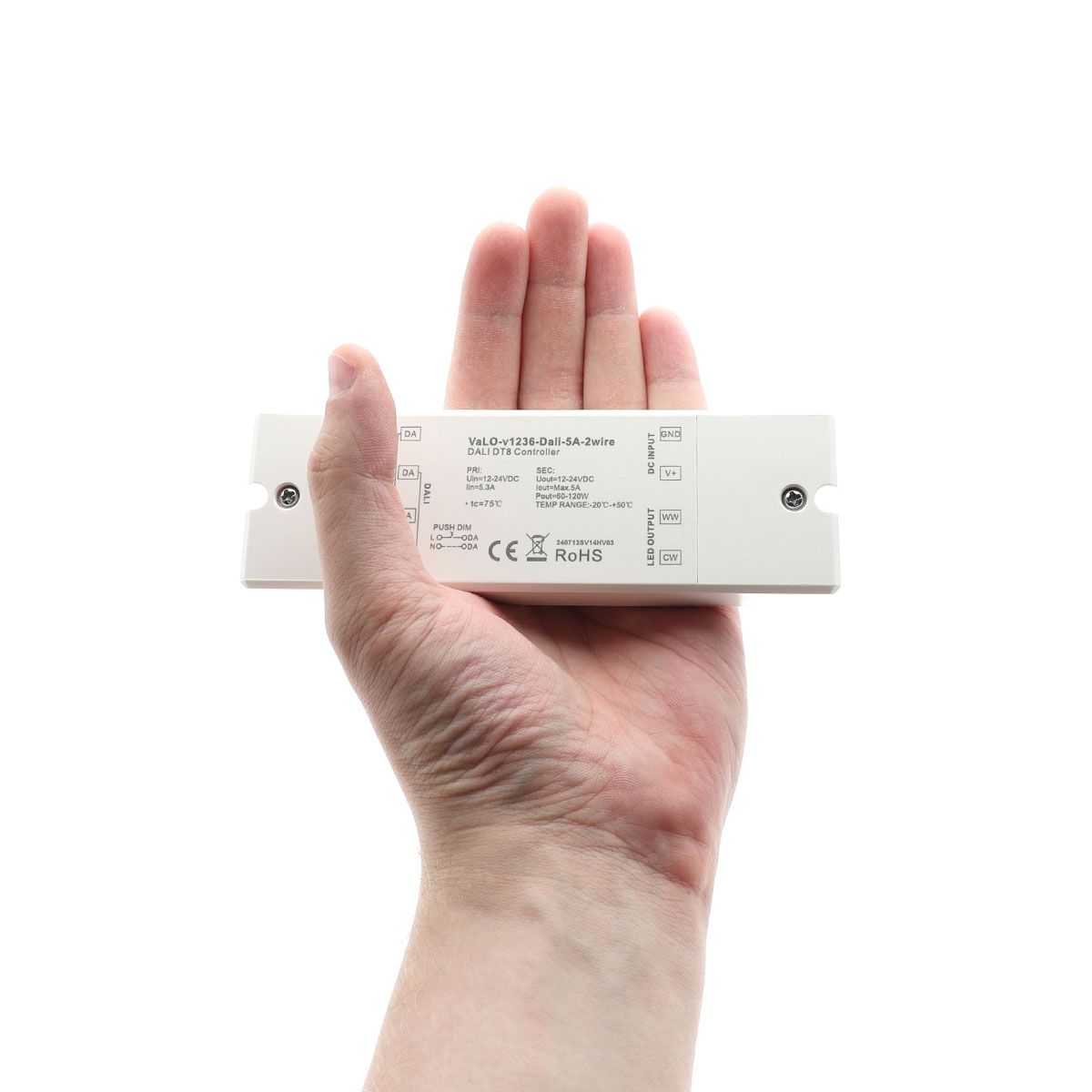

- Dimensions 146 x 47x 17mm
- DT8 Dali, plus PUSHDIM for dimming
- Max. loads 12V = 60W, 24V = 120W
- Two-wire CCT for LED strips
Read more
