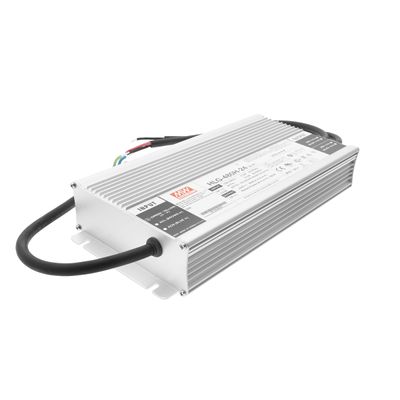

24V LED strip light DRIVER 480W, IP67, Mean Well

temporarily out of stock
SKU#: 24V-480W-driver-MW-IP67

High quality Mean Well power supply for 24V led strip light, withstands 480W (20A) load. 7 years warranty! The power supply can be dimmed from one side or the other with wireless dimmers.

  • 24 Volts
  • 7-year guarantee
  • IP67
  • max 480W
  • NO dimming
€ 399.80
  • When you are looking for the best possible power supply. 7 year warranty! For large installations and the most demanding customers.

    Very high quality Mean Well power supply for 24V led strip lighting or other devices. Capable of 480W (20A) load. The power supply has two outputs which can be branched to multiple strips if required. The power supply has about 30cm wires at both ends.

    The power supply has an adjustable output in the range 20,4-25,2V. So you can install the transformer without any worries even at a long distance, for example in an electrical cabinet. You can adjust the voltage to suit, ensuring that the voltage is always appropriate at the luminaire.

    The power supply can be dimmed from one side or the other with wireless dimmers, such as the 12V/24V wireless dimmer.

    You can connect to this power supply in total:

    • max.60m of 7,2W/m LED strip
    • max.30m HELMEILE 14,4W/m led strip
    • max. 14W/m led ribbon 14W/m led ribbon 14W/m led ribbon 14W/m led ribbon 14W/m led ribbon 14W/m

    Dimensions

    • Length: 280mm (frame only 240mm)
    • Width: 126mm
    • Height: 45mm
    • Weight: 2,6kg

    Protection and more:

    Short circuit, overload, overvoltage and overheat protection. Possibility of external control (5v). Operating temperature range exceptionally wide -40 to +90 degrees Celsius in free space. Seven-year warranty. The transformer is waterproof, making it suitable for outdoor use, IP67.

    No plug, no LED strip connector/DC plug.

    Efficiency of a staggering 94% and no load consumption of only 0.5W, typical operating time 62000 hours.

When you are looking for the best possible power supply. 7 year warranty! For large installations and the most demanding customers.

Very high quality Mean Well power supply for 24V led strip lighting or other devices. Capable of 480W (20A) load. The power supply has two outputs which can be branched to multiple strips if required. The power supply has about 30cm wires at both ends.

The power supply has an adjustable output in the range 20,4-25,2V. So you can install the transformer without any worries even at a long distance, for example in an electrical cabinet. You can adjust the voltage to suit, ensuring that the voltage is always appropriate at the luminaire.

The power supply can be dimmed from one side or the other with wireless dimmers, such as the 12V/24V wireless dimmer.

You can connect to this power supply in total:

  • max.60m of 7,2W/m LED strip
  • max.30m HELMEILE 14,4W/m led strip
  • max. 14W/m led ribbon 14W/m led ribbon 14W/m led ribbon 14W/m led ribbon 14W/m led ribbon 14W/m

Dimensions

  • Length: 280mm (frame only 240mm)
  • Width: 126mm
  • Height: 45mm
  • Weight: 2,6kg

Protection and more:

Short circuit, overload, overvoltage and overheat protection. Possibility of external control (5v). Operating temperature range exceptionally wide -40 to +90 degrees Celsius in free space. Seven-year warranty. The transformer is waterproof, making it suitable for outdoor use, IP67.

No plug, no LED strip connector/DC plug.

Efficiency of a staggering 94% and no load consumption of only 0.5W, typical operating time 62000 hours.

  • Delivery status In Stock
  • Brand Mean Well
  • Breadcrumbs Home LED accessoriesLED drivers24V drivers 24V LED strip light DRIVER 480W, IP67, Mean Well
  • Category 24V drivers
  • SKU 24V-480W-driver-MW-IP67
  • Size 280x126x45mm
  • Wattage 480
  • IP class IP67
  • Colour Silver
  • Guarantee (year) 7 years
  • Life span 62000
  • Approval SAA, CE, TUV and others. Complite list in pictures.
  • Designed in Finland No
New product review

Be the first to write a review!

By rating you will be entered into a prize draw for a €50 gift voucher.

Customer questions
No questions yet.

WHAT IS CRI, THE COLOUR RENDERING INDEX

High quality LED lights also have a high colour rendering index, or CRI. A good colour rendering index (CRI) for home use is above 90, and nowadays many market lights are unfortunately closer to 80.

CRI tells you how well an LED light displays colours as they should be. For designers and architects, as well as interior designers, it should be one of the most important considerations. Make sure the lighting is perfect so that your artwork is what it is meant to be.


Colour rendering index

The colour rendering index is expressed as a number on a scale from zero to 100, where 0 = no colour rendering and 100 = full colour rendering. The colour rendering index of LED lights is also known as Ra, which is measured on a smaller scale than CRI. This Ra value does not include red tones or skin tones, for example, so it is a 'glossed' figure for the true quality of an LED light.

RA value

The Ra value measures the reproduction of colours using eight different reference colours. CRI takes into account the wider (15) wavelength range, including reds and other warm colours.



The Ra value is calculated by cutting the wavelength range, weighting the blue and violet tones, and calculating the weighted average of R numbers 1-8.

Excluded from the Ra value are, for example, the colour rendering of bright reds, yellows and greens, and shades close to skin tone. These are described by R-values between 9 and 15. The following is a picture of a measurement result that easily confuses the consumer.


This measurement is from a 9W CCT Led spot

Read more on this topic:

Colour rendering of LEDs - What is the difference between CRI and Ra-value?
