12V LED strip light DRIVER 100W, IP65
Power supply for 12V led strip light, can handle 100W (4,16A) load. The power supply has one output, which can be branched to several strips if necessary. The power supply has approx 100cm wires at both ends. The power supply can be dimmed from one side with wireless dimmers, such as a 12V/24V wireless dimmer.
Power supply for 12V led strip light, can handle 100W (4,16A) load. The power supply has one output, which can be branched to several strips if necessary. The power supply has approx 100cm wires at both ends. The power supply can be dimmed from one side with wireless dimmers, such as a 12V/24V wireless dimmer.
You can connect to this power supply in total:
- max.12,5m of 7,2W/m 12V led strip
- max.6,25m HELMEILE 14,4W/m 12V led strip
Dimensions
- Length: 215mm (frame only 190mm)
- Width: 52mm
- Height: 37mm
- Weight: 0,63kg
Protection and more:
Short circuit, overload, overvoltage and overheat protection. Operating temperature between -30 and +70 degrees Celsius. 3 years warranty. The transformer is waterproof, making it suitable for outdoor use, IP67. Efficiency 88% and no load consumption 1W.
- Delivery status In Stock
- Brand Ledstore
- Breadcrumbs Home LED accessoriesLED strip driver12V drivers 12V LED strip light DRIVER 100W, IP65
- Category 12V drivers
- SKU 12V-100W-DRIVER-IP65
- 100
- 12
- 12V, Not dimmable
- Life span 30000
- 24V driver 100W

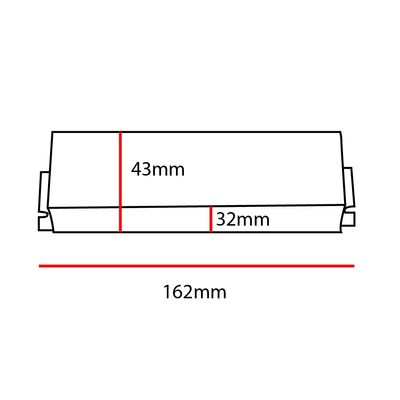

- 163x43x32mm
- 22
- 4
- 7
Be the first to write a review!
By rating you will be entered into a prize draw for a €50 gift voucher.
WHAT IS CRI, THE COLOUR RENDERING INDEX
High quality LED lights also have a high colour rendering index, or CRI. A good colour rendering index (CRI) for home use is above 90, and nowadays many market lights are unfortunately closer to 80.
CRI tells you how well an LED light displays colours as they should be. For designers and architects, as well as interior designers, it should be one of the most important considerations. Make sure the lighting is perfect so that your artwork is what it is meant to be.
Colour rendering index
The colour rendering index is expressed as a number on a scale from zero to 100, where 0 = no colour rendering and 100 = full colour rendering. The colour rendering index of LED lights is also known as Ra, which is measured on a smaller scale than CRI. This Ra value does not include red tones or skin tones, for example, so it is a 'glossed' figure for the true quality of an LED light.
RA value
The Ra value measures the reproduction of colours using eight different reference colours. CRI takes into account the wider (15) wavelength range, including reds and other warm colours.
The Ra value is calculated by cutting the wavelength range, weighting the blue and violet tones, and calculating the weighted average of R numbers 1-8.
Excluded from the Ra value are, for example, the colour rendering of bright reds, yellows and greens, and shades close to skin tone. These are described by R-values between 9 and 15. The following is a picture of a measurement result that easily confuses the consumer.
This measurement is from a 9W CCT Led spot
Read more on this topic:
Colour rendering of LEDs - What is the difference between CRI and Ra-value?
