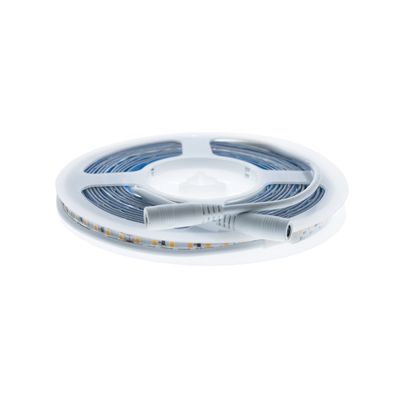

5m LED strip HELMI, 4000K, 24V, 7,2W/m, IP65, CRI94

5m LED strip light HELMI, 4000K, 24V, 7,2W/m, IP65, CRI94

This LED strip is dimmable and moisture-proof to IP65 (non-yellowing surface). Our LED strip is easy to fix with the 3M high adhesive tape included. The 7.2W/m Helmeile led strip is equivalent to a 15W fluorescent tube. The tape comes in a 5m roll.

Information

The HELMEIL 4000K LED light ribbon has an actual light output of 8.2W/m and 633 lumens/m. The ribbon has 120 LED circuits per meter. This makes the light uniform enough for lighting stairs, railings and plinths, for example. When mounted on an aluminium profile, the point spacing is only noticeable when looking directly at the luminaire from the front. When indirectly illuminated through a wall, the light is uniform.

This LED strip light has an IP65 rating, which means that the strip is dustproof and protected against water spray. This LED strip is therefore suitable for use in damp areas and outdoors.

Excellent colour rendering

The CRI rating indicates how well an LED light reproduces colours as they should be. A high CRI value indicates that the luminaire reproduces a wide range of colours. The closer you get to 100, the more naturally colours are reproduced. This LED strip light has a CRI of up to 94, which ensures excellent colour rendering.

Installation

In addition to the strip, the installation of the LED strip requires a transformer, an aluminium profile and operating switches.

The LED strip 24V comes in 5m rolls and can be cut to size in increments of 5cm. The tape has clear markings to make cutting easier. We recommend soldering the strips together as we have found that the quick connectors loosen over time and loosening causes the lights to flash. Both ends of the tape have pre-soldered connectors that can be used depending on the destination. We will be happy to help with any installation questions.

We recommend powering from both ends if the ribbon is more than 10m in a continuous length. This prevents light loss and provides equally bright light from both ends. The LED strip should always be attached to an aluminium (or other metal) strip to allow excess heat to be conducted away from the LED circuitry. This will prolong the life of the led strip, and keep the warranty valid. Aluminium profiles can be ordered from our online shop, where they are available in a variety of different types.

LED strip 24V works well with solar power, boats and cars that use 24VDC, then a separate power supply is not needed. In other cases, please order a suitable 24V power supply for the strip.

Installing plugless transformers is electrical work and requires adequate qualifications. We will be happy to help you with any installation questions.

Dimming

To dim the LED strip, you can use either a traditional rotary wired dimmer or our VaLO RF series wireless dimmer. When using a conventional rotary dimmer, the transformer of the LED strip must be TRIAC dimmable. The strips can also be controlled by DALI systems. Wireless dimming is perfect for applications where there is no wall switch for the luminaire, but the luminaire is powered by a constant current.

In the case of a smart home, a Zigbee transformer and controllers for wireless control are chosen. In Zigbee transformers, the receiver is already built-in.

With the VaLO RF wireless solution, you simply install the receiver between the LED strip and the power supply. You can then control the strip with wireless switches from wherever you want. The wireless switch is powered by batteries, which are easily replaceable. You can also mount the switch on the wall if you wish, but it does not need a separate power supply.

Create your own light

Why use an LED strip only for traditional applications when you can make a light from almost anything? Create your own wall light by bending the LED strip and the aluminium profile to the shape you want, or by fixing the LED strip to another heat-conducting material. Turn a mirror, table frame, trunk, table or chair into a lamp with the LED strip. A good design is half the job. We are happy to help you with your design, and we make LED strip made to measure at LedStore's LedShop.
