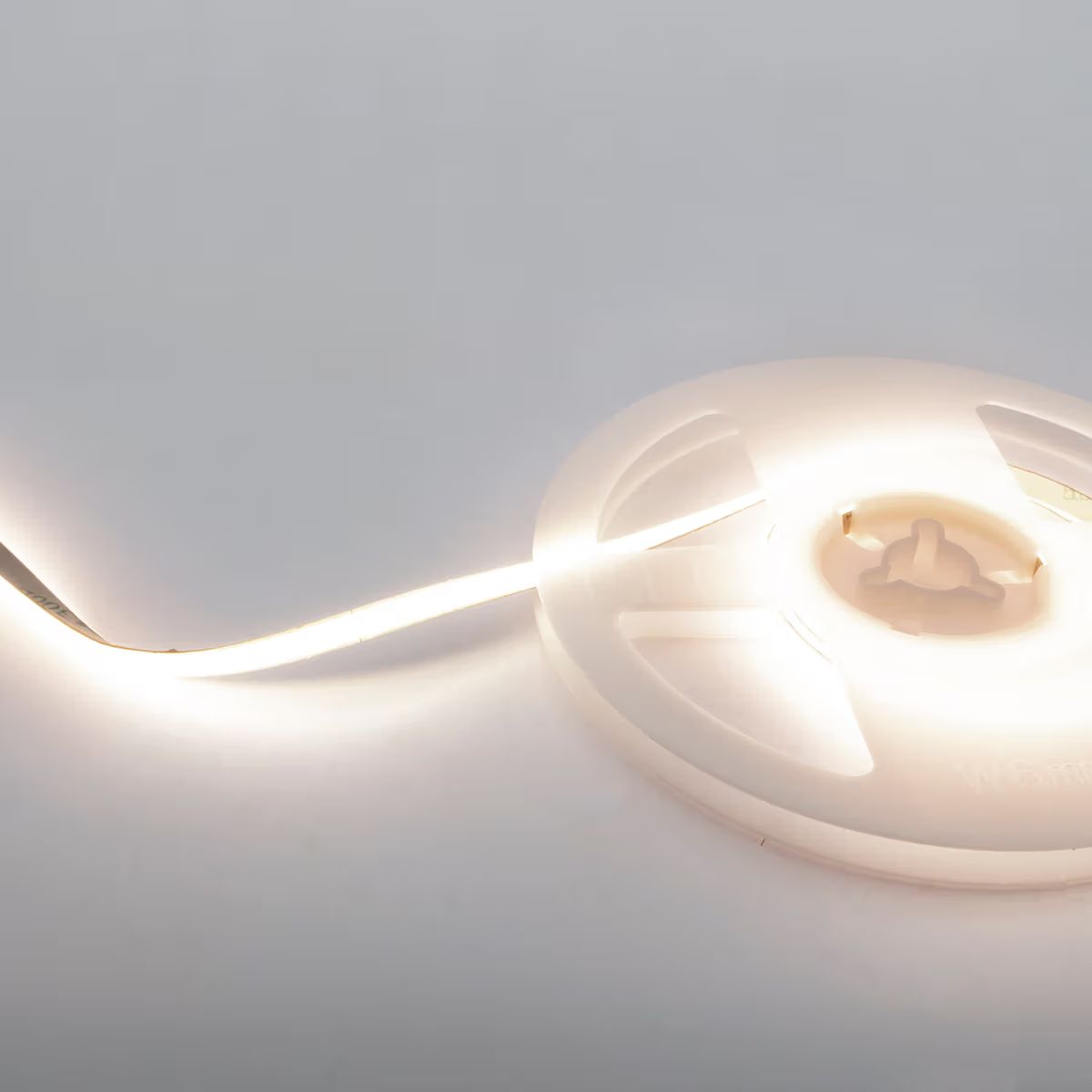

5m LED light strip SOLO SLIM, CCT, 24V, 7.2W/m, IP65, CRI93

The Solo 7,2W/m light strip can be adjusted between 2700K and 7000K. The colour rendering index of the ribbon is 93 which means that colours are reproduced well (colours are best reproduced with 4000K white light as there is no yellowish or bluish tint involved). The SOLO SLIM ribbon is, as its name suggests, only 5mm narrow!

This led strip is dimmable and the colour control can be made to work by ordering a VaLO RF or Zigbee (CCT) push button and receiver (CCT) .

Product information

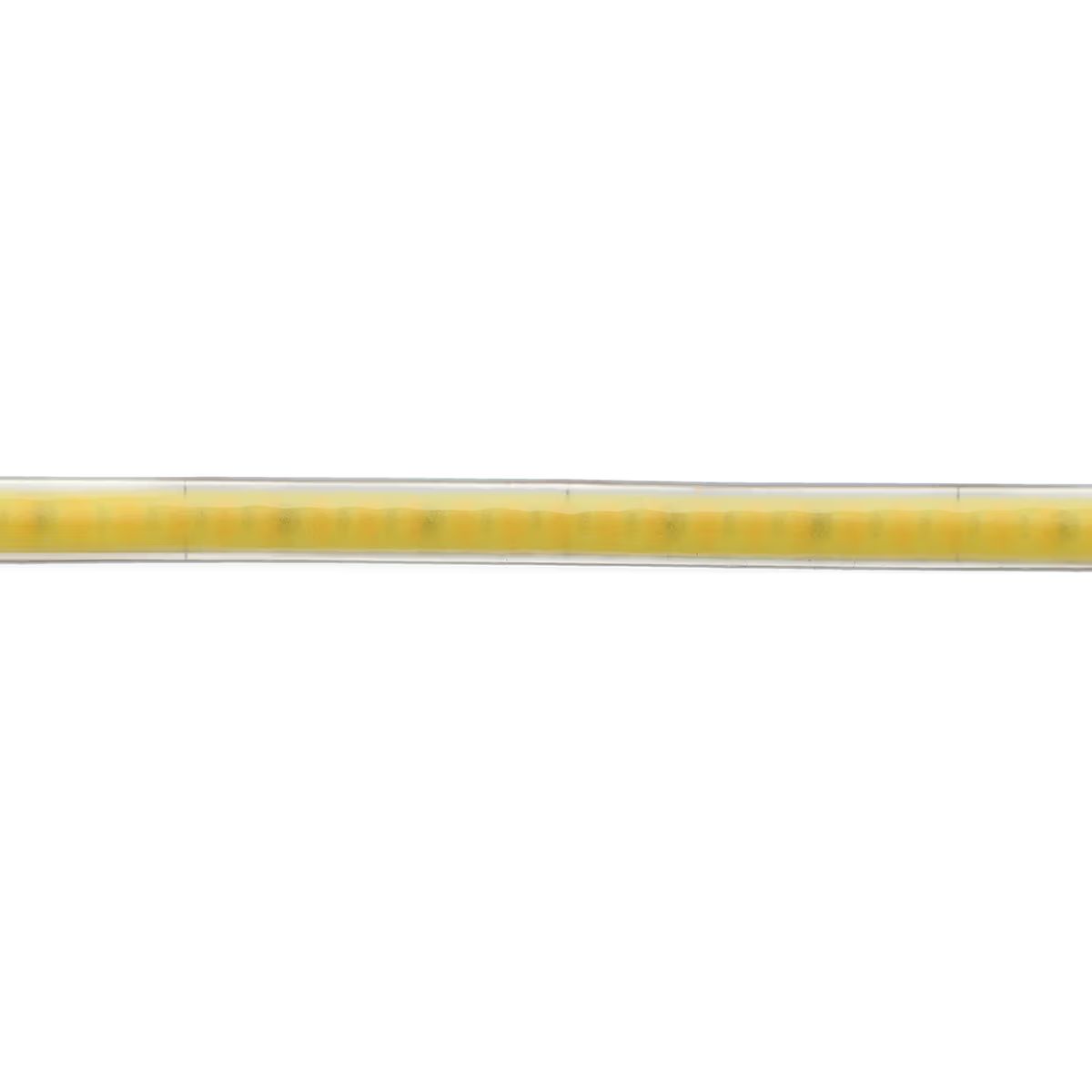

The Solo 7,2W/m ribbon is very flat and efficient (580 lumens per meter) and has 308 LED circuits per meter. This makes the light uniform. The width of the Led strip is 5mm. Waterproof Led strip, IP65.

Installation

LED strip comes in 5m rolls and can be cut to size up to 26mm apart. The strip has 10 cm of connecting wire pre-wired at both ends. Red wire is +, white is C cold white and yellow is W warm white.

Our Led strip is easy to attach with the included 3M high adhesive tape. The cut points can be found on the underside of the strip under the tape. The cutting points have copper dots, so you can solder a low-current wire to the strip from these points to connect to the transformer. We recommend soldering the tapes together. When soldering, use a knife to remove the silicone coating that protects the strip at the copper points.

We recommend that for long runs (over 10m) the transformer supply is branched at both ends of the LED strip to avoid light degradation at one end of the strip. The led strip should always be attached to an aluminium strip so that excess heat is conducted away from the led circuit. This will prolong the life of the led strip. Aluminium profiles can be ordered from our online shop, where we have a wide range of different profiles available.

We also have a range of special cut profiles for this special LED strip:

- SOLO SLIM 10x10mm

- Flush-mounted shelf profile 45 degrees

The CCT LED strip is connected to a CCT adjustable transformer (RF or Zigbee) or, in larger installations, to a separate control unit, and the control unit is connected to a power supply which is connected to the mains.

The LED strip works well with solar power, boats and cars if they use 24VDC. Then a separate power supply is not needed. In other cases, order a 24V power supply of suitable power for the strip. The power supply does not need to be dimmable when dimming with a regulator and receiver. Alternatively, a wireless control RF or Zigbee transformer is available, where the transformer is paired directly with the wireless button.

We are happy to help with installation and ordering questions.

To dim the LED strip, you can use our VaLO RF or Zigbee series wireless dimmer/colour temperature controller. The strips can also be controlled by DALI systems. Wireless dimming is perfect for applications where there is no wall switch for the luminaire, but the luminaire is powered by a constant current.

In the case of a smart home, a Zigbee or DALI transformer and controllers for wireless control are chosen.

With a wireless VaLO RF or Zigbee solution, you simply install a receiver between the LED strip and the power supply. You can then control the strip with wireless switches from wherever you want. The wireless switch is powered by batteries, which are easily replaceable. You can also mount the switch on the wall if you wish, but it does not need a separate power supply.

Create your own light

Why use CCT LED strip only for traditional applications when you can make a luminaire out of almost anything? Create your own wall light by bending the LED strip and the aluminium profile into the shape you want, or by attaching the LED strip to any other heat-conducting material. Turn a mirror, table frame, trunk, table or chair into a lamp with the LED strip. A good design is half the job. We are happy to help you with your design, and we make LED strip made to measure at LedStore's LedShop.

If you want a custom-made led strip or a custom-made profile with your own dimensions, try our custom-made calculator!
With the calculator you can calculate the price for different needs with wireless control or ON/OFF use. For one or more levels!
